Product Details:
|
Special: | Multi Tank | Material: | Stainless Steel SUS304/316L |
---|---|---|---|
Ultrasonic Frequency: | 28khz/40khz | Ultrasonic Power: | 7200W |
Power: | Adjustable Ultrasonic Power | Use: | Cleaning , Degreasing |
Control: | Separate Generator | Heater: | 20 To 80 Asjudt |
Optional: | Oil Filter System | ||
High Light: | dual frequency ultrasonic cleaner,ultrasonic washing machine |

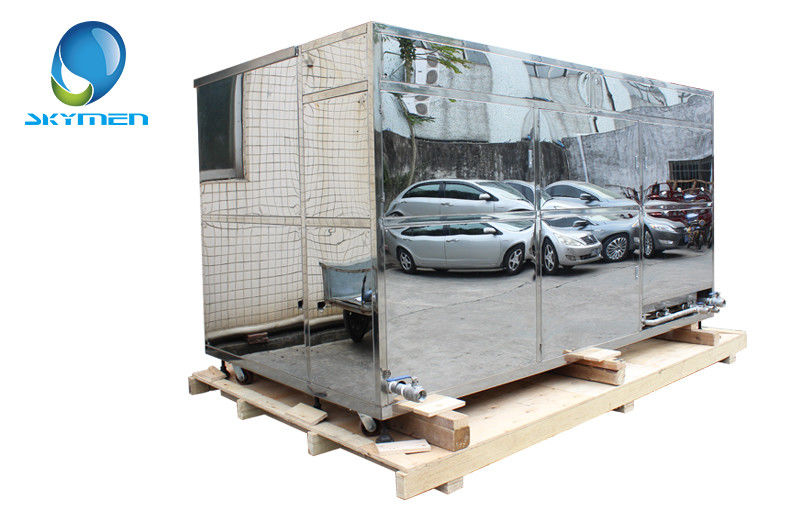

1000L 7200W Ultrasonic Saw Blade Cleaner Durable Large Ultra Sonic Bath
The machine is customized and certified with CE.
If need, rising tank or drying tank is optional based on customer's needs.
Large Capacity for Diesel Particulate Filter Cleaning
Applications:
Skymen Dual frequency ultrasonic cleaner can be use for car parts washing, engine block degrease, radiator
clean, also can clean electronic parts. No damage to object surface and improve cleaning efficiency.
Description:
Product Description
Model: Skymen™ | JTS-1012 | JTS-1018 | JTS-1024 | JTS-1030 | JTS-1036 | JTS-1072 | |||
TANK'S WORKING DIMENSION (mm) | L1 | 355 | 406 | 500 | 500 | 500 | 1110 | ||
W1 | 305 | 305 | 355 | 406 | 460 | 600 | |||
H1 | 355 | 460 | 500 | 500 | 550 | 600 | |||
OVERALL DIMENSION (mm) | L2 | 535 | 586 | 680 | 710 | 710 | 1320 | ||
W2 | 485 | 485 | 535 | 586 | 640 | 780 | |||
H2 | 750 | 680 | 720 | 720 | 770 | 820 | |||
TANK'S TOTAL CAPACITY | 38L | 56L | 88L | 101L | 126L | 369L | |||
TANK'S MATERIAL | SUS304 / SUS316L | ||||||||
IN-TANK SURFACE FINISHING | Hard-Cr Plating Treatment ( 20+ microns ) | ||||||||
HOUSING'S MATERIAL | Stainless steel | ||||||||
ULTRASONIC FREQUENCY* | 28kHz / 40kHz | ||||||||
ULTRASONIC TRANSDUCER | 12 | 18 | 24 | 30 | 36 | 72 | |||
ULTRASONIC OUTPUT POWER (MAX.) | 600W | 900W | 1200W | 1500W | 1800W | 3600W | |||
ELECTRONIC GENERATOR | KG600 | KG900 | KG1200 | KG1500 | KG1800 | KG3600 | |||
Build-in | Separate | ||||||||
HEATER'S (HOT PLATE) POWER | 1.5kW | 3kW | 4.5kW | 9KW |
Package
Packing , loading, delivery time | |
Packing unit | 1set/wooden case |
Packing method | Export wooden case |
Loading port | Shenzhen |
Delivery time | About 15 working days |
Minimum Order Quantity | 1set |
Transport method | By express company / air / sea |
