Product Details:
|
| Lid: | Yes | Electirc Box: | Yes |
|---|---|---|---|
| Lift: | Optional | Transucer Pack: | 10pcs |
| Generator: | 10pcs | Generator Shelf: | On The Back Of Machine |
| High Light: | 2500L Industrial Ultrasonic Washing Machine,Industrial Ultrasonic Washing Machine SUS316,Heat Exchanger Ultrasonic Cleaning Device |
||
Skymen 2500L Ultrasonic Cleaning Machine For Heat Exchanger Custom Size
Ultrasonic Cleaning Machine For Heat Exchanger
The width of the ultrasonic cleaning tank should be greater than the diameter of the heat exchanger, and the length should be slightly longer than that of the heat exchanger to ensure that the entire heat exchanger is immersed in the ultrasonic cleaning tank. The volume and weight of the heat exchanger are relatively large, and when it is difficult to put the heat exchanger into and out of the tank, consider installing a lifting system. If the heat exchanger has a large daily cleaning volume, it is recommended that the customer install a filtration circulation system, which can collect dirt and sewage and discharge it, and can also circulate relatively clean water to the main tank to improve water utilization. At the same time, it is also necessary to consider the weighing capacity of the cleaning basket to avoid direct contact with the heat exchanger to the bottom of the inner tank of the machine, causing damage to the vibration head
Detailed Specification of this machine:
|
1
|
Model
|
JP-1360ST
|
|
|
2
|
Parameter
|
Function
|
Ultrasonic cleaning
|
|
Ultrasonic Frequency
|
28/40kHz (other frequency can be customized)
|
||
|
Tank Material
|
SUS 304 (SUS316 can be customized)
|
||
| Thickness of tank | 3mm | ||
|
Inner tank dimension
|
2000*1200*1000mm
|
||
|
Tank Capacity
|
2400L
|
||
|
Transducer
|
360pcs
|
||
|
Ultrasonic Power
|
18000W
|
||
|
Heating Power
|
54000W
|
||
|
Time setting of Ultrasonic
|
0~99 hours
|
||
|
Temperature setting
|
Room temperature ~ 95°C adjustable
|
||
|
Drain value
|
Available
|
||
|
Water inlet/outlet
|
Available
|
||
|
Generator
|
10 sets
|
||
| Generator power control | 1800W | ||
| Generator shelf | Available | ||
| Basket | Available | ||
|
Basket load
|
600KG
|
||
|
3
|
Packing
|
Overall size
|
240*140*190cm
|
|
Packing size
|
250*150*210cm
|
||
| Packing detail | By wooden case(No logs, free of fumigation) | ||
|
N.W/G.W
|
700KG/800KG
|
||
| 4 | Power supply | 380V 3 phase; 220V 3 pahse; 415V; 600V | |
| 5 |
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
|
7
|
Lead time
|
20~30 working days after deposit
|
|
| 7 | Optional functions | Filtration cycle system | Available; capture dirty water, recycle clean water |
| Lifting system for basket | Available; take the basket up and down | ||
| Dunking system | Available; Speed up cleaning | ||
| Bubbling | Available; need to connect air compressor | ||
| Electrolysis | Available; For cleaning more complex structure mold | ||
| Cooling system | Available; To cool down inflammable and explosive | ||
| Constant temperature | Available; | ||
| Roller barrel | Available; for clean coins and big quantity parts | ||
| Anti-explosion electric box | Available; | ||
| Deionized(DI) water | Available | ||
| Double/Multi frequency | Available; 28/40/20/68/80/132KHz | ||
| Other funtions | Negotiate via email |
Other size and capacity for reference:
|
Model No. |
Inner tank size(mm) |
Capacity (L) |
Transducer (pcs) |
Ultrasonic power (W) |
Heating power (W) |
Lift /Filter |
Frequency (kHz) |
|---|---|---|---|---|---|---|---|
| JP-1216ST | 1500*1000*1000 | 1500L | 216pcs | 10800W | 36000W | Available | 28/40kHz |
| JP-1288ST | 2000*1200*800 | 1920L | 288pcs | 14400W | 45000W | Available | 28/40kHz |
| JP-1360ST | 2000*1200*1000 | 2400L | 360pcs | 18000W | 54000W | Available | 28/40kHz |
| JP-1432ST | 2000*1500*1200 | 3000L | 432pcs | 21600W | 63000W | Available | 28/40kHz |
| JP-1576ST | 2500*1500*1200 | 4500L | 576pcs | 28800W | 63000W | Available | 28/40kHz |
| JP-1648ST | 3000*1500*1200 | 5400L | 648pcs | 32400W | 63000W | Available | 28/40kHz |
| JP-1720ST | 4000*1600*1000 | 6400L | 720pcs | 36000W | 66000W | Available | 28/40kHz |
| JP-1936ST | 3500*1600*1300 | 7280L | 936pcs | 46800W | 66000W | Available | 28/40kHz |
| JP-11152ST | 2500*2000*1700 | 8500L | 1152pcs | 57600W | 69000W | Available | 28/40kHz |
| JP-11224ST | 3200*2000*1500 | 9600L | 1224pcs | 61200W | 69000W | Available | 28/40kHz |
| JP-11368ST | 8000*1200*1200 | 11520L | 1368pcs | 68400W | 69000W | Available | 28/40kHz |
| JP-11512ST | 8000*1600*1600 | 20480L | 1512pcs | 75600W | 72000W | Available | 28/40kHz |

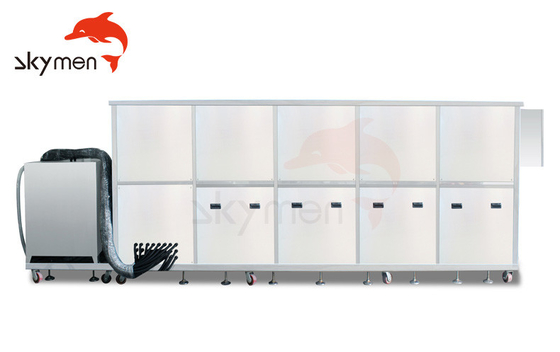

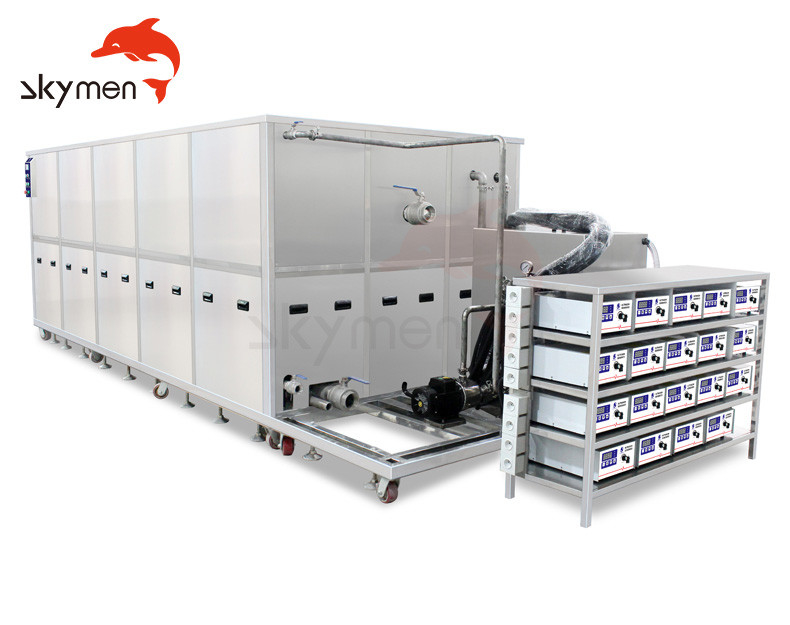

Product show:
Cleaning effect show:
