Product Details:
|
| Tank Material: | SUS304/SUS316 | Tank Thickness: | 3mm |
|---|---|---|---|
| Transducer: | 216pcs | Ultrasonic Power: | 10800W |
| Heating Power: | 36000W | Frequency: | 28/40KHz |
| Basket: | Yes | Power Supply: | 3 Phase Power |
| High Light: | 1500L Tank Ultrasonic Cleaning Machine,Ultrasonic Cleaning Machine SUS304,Hydraulic Part Benchtop Ultrasonic Cleaner |
||
1500L Large Tank Ultrasonic Cleaning Machine For Hydraulic Part 46800W
Ultrasonic Cleaning Machine for Hydraulic Parts—Introduction of Cleaning Machine
The ultrasonic cleaning machine adopts municipal water, pure water, alkaline or weak acid, and water-based solvent as the cleaning agent. It is usually combined with cleaning methods such as spray, jet, hot dipping, bubbling, etc., and is equipped with a suitable product drying method. Semi-automatic ultrasonic cleaning production line. It is especially suitable for the cleaning of small batches of electronic circuit boards, electronic parts, watch parts, metal stamping parts, metal machining parts, jewelry, spectacle frames, glassware, semiconductor silicon wafers, etc.
Detailed Specification of this machine:
|
1
|
Model
|
JP-1216ST
|
|
|
2
|
Parameter
|
Function
|
Ultrasonic cleaning
|
|
Ultrasonic Frequency
|
28/40kHz (other frequency can be customized)
|
||
|
Tank Material
|
SUS304 (SUS 316 can be customized)
|
||
| Thickness of tank | 3mm | ||
|
Inner tank dimension
|
1500*1000*1000mm
|
||
|
Tank Capacity
|
1500L
|
||
|
Transducer
|
216pcs
|
||
|
Ultrasonic Power
|
10800W
|
||
|
Heating Power
|
36000W
|
||
|
Time setting of Ultrasonic
|
0~99 hours
|
||
|
Temperature setting
|
Room temperature ~ 95°C adjustable
|
||
|
Drain value
|
Available
|
||
|
Water inlet/outlet
|
Available
|
||
|
Generator
|
6 sets
|
||
| Generator power control | 1800W | ||
| Generator shelf | Available | ||
| Basket | Available | ||
|
Basket load
|
500KG
|
||
|
3
|
Packing
|
Overall size
|
240*140*170cm
|
|
Packing size
|
250*150*190cm
|
||
| Packing detail | By wooden case(No logs, free of fumigation) | ||
|
N.W/G.W
|
500KG/600KG
|
||
| 4 | Power supply | 380V 3 phase; 220V 3 pahse; 415V; 600V | |
| 5 |
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
|
7
|
Lead time
|
20~30 working days after deposit
|
|
| 7 | Optional functions | Filtration cycle system | Available; capture dirty water, recycle clean water |
| Lifting system for basket | Available; take the basket up and down | ||
| Dunking system | Available; Speed up cleaning | ||
| Bubbling | Available; need to connect air compressor | ||
| Electrolysis | Available; For cleaning more complex structure mold | ||
| Cooling system | Available; To cool down inflammable and explosive | ||
| Constant temperature | Available; | ||
| Roller barrel | Available; for clean coins and big quantity parts | ||
| Anti-explosion electric box | Available; | ||
| Deionized(DI) water | Available | ||
| Other funtions | Negotiate via email |
General overview of this series machine:
Other size and capacity for reference:

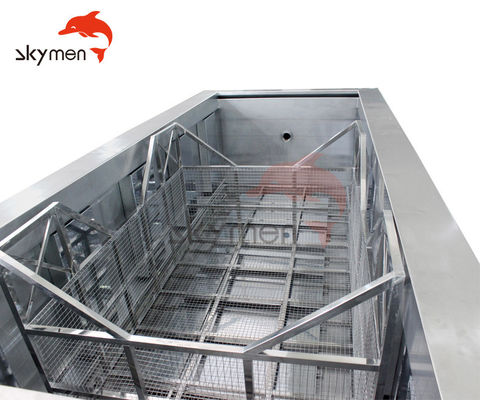

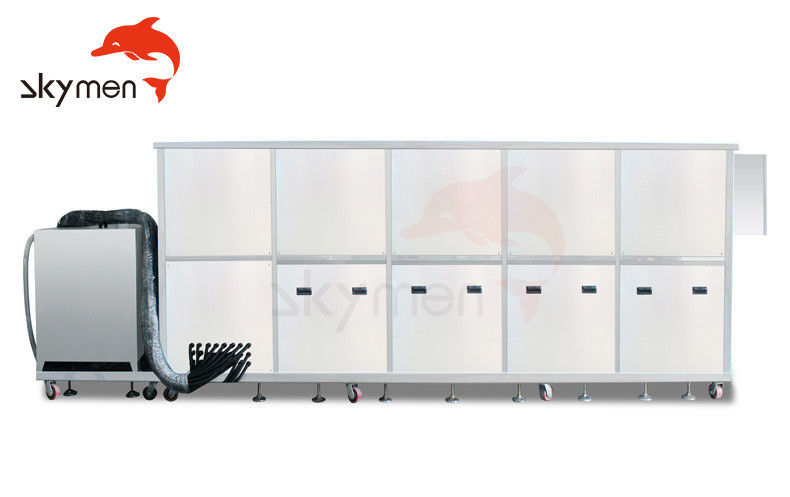

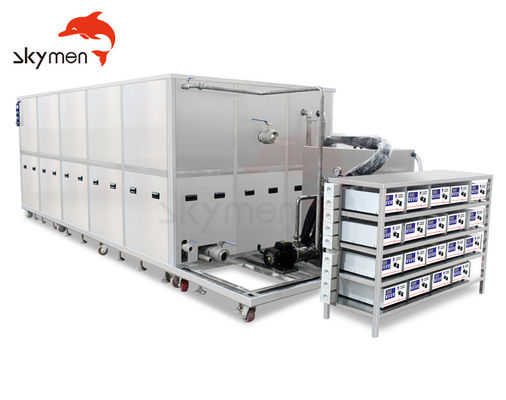

Product show:
Cleaning effect show:
