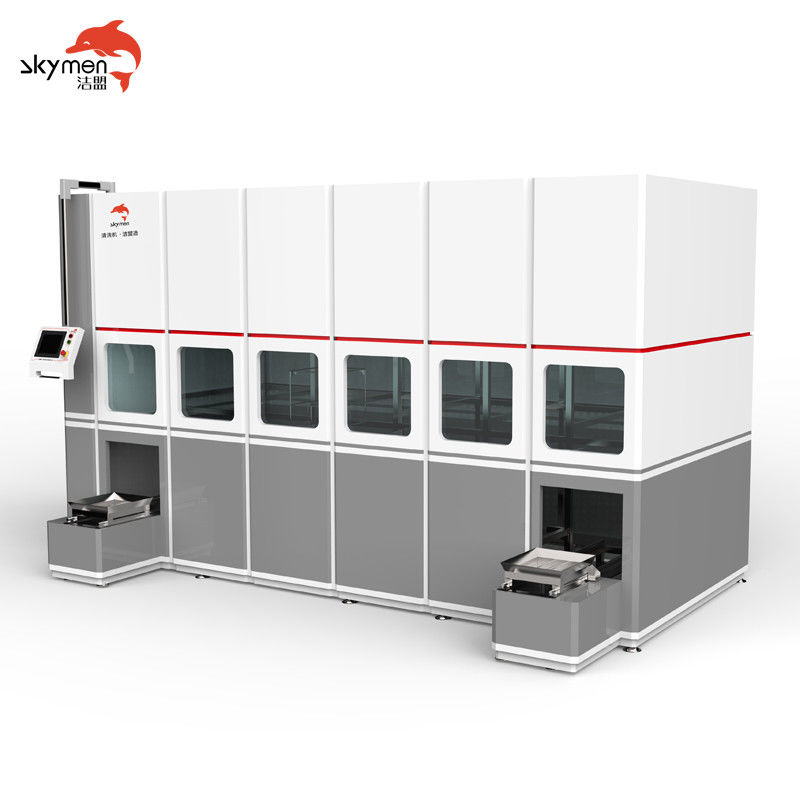

FCC SUS304 5400W Ultrasonic Cleaning Machine 143 Gallon With Hot Air Dryer

FCC SUS304 5400W Ultrasonic Cleaning Machine 143 Gallon With Hot Air Dryer
FCC SUS304 5400W Ultrasonic Cleaning Machine 143 Gallon With Hot Air Dryer
FCC SUS304 5400W Ultrasonic Cleaning Machine 143 Gallon With Hot Air Dryer FCC SUS304 5400W Ultrasonic Cleaning Machine 143 Gallon With Hot Air Dryer

Large Image :  FCC SUS304 5400W Ultrasonic Cleaning Machine 143 Gallon With Hot Air Dryer

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JTM-3216AD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: In Stock
Payment Terms: T/T
Supply Ability: 800 pcs per month

FCC SUS304 5400W Ultrasonic Cleaning Machine 143 Gallon With Hot Air Dryer

Description
Working Way: Automated Functions: Cleaning,heating, Cooling; Drying, Etc
Ultrasonic Power: 5400W*2 Heating Power: 18000W
Single Stage Size: 39*35*24 Inch Single Stage Volume: 143 Gallon
High Light:

FCC SUS304 Ultrasonic Cleaning Machine

,

5400W Ultrasonic Cleaning Machine

,

143 Gallon Ultrasonic Parts Cleaners

Automatic Ultrasonic Cleaner for Precision Electronic Parts With Hot Air Dryer

I intended to replace all the ball bearings in my 50+ year old Hendey Tool & Gage lathe. After purchasing a few replacements, I though it might be more practical to clean and then inspect the old ones. Only those in bad shape would be replaced.

I have a small ultrasonic cleaner and it has worked wonders on small items. If an ultrasonic cleaner is used, do the individual balls vibrate against the cage and inner race causing microscopic pitting on the surface of the balls which ruins the bearing? This concern came about due to the warnings about not spinning dry bearings (after cleaning but before application of grease or oil). What would be a easily obtainable solvent for removing the old grease? I don't want to use anything containing methylene chloride.



Specification sheet:

1
Model
JTM-3216AD
2
1st Chamber

Function
Ultrasonic cleaning + Filter+ Hot water cleaning
Ultrasonic Frequency
28/40kHz (other frequency can be customized)

Tank Material

SUS304 (SUS 316 can be customized)
Thickness of tank 2mm
Inner tank dimension
39*35*24 inch
Tank Capacity
143 Gallon
Transducer
60pcs
Ultrasonic Power
3000W
Heating Power
6000W
Time setting of Ultrasonic
0~99 hours
Temperature setting
Room temperature ~ 95°C adjustable
Drain value
Yes
Water inlet/outlet
Yes
Filter
1 set, connect with 1st tank
Filtet element precision 5/10μ
Generator
2pcs
Generator power control 1500W
Basket Yes
Basket load
200KG
3 2nd Chamber Function Ultrasonic cleaning + Bubbling + Hot water cleaning
Ultrasonic Frequency 28/40kHz (other frequency can be customized)
Tank Material SUS 304 (SUS 316 can be customized)
Thickness of tank 2mm
Inner tank dimension 39*35*24 inch
Tank Capacity 143 Gallon
Transducer 60pcs
Ultrasonic Power 3000W
Heating Power 6000W
Time setting of Ultrasonic 0~99 hours
Temperature setting Room temperature ~ 95°C adjustable
Drain value
Yes
Water inlet/outlet
Yes
Bubbling system Yes, air compressor is provided by user
Generator 2pcs
Generator power control 1500W
Basket Yes
Basket load 200KG
3
3rd Chamber
Function
Hot air drying tank
Inner tank dimension
39*35*24 inch
Turbines power
750W
Dryer power
3000W
4 Working way of machine Working way Full automatic
Loading and unloding platform Yes
Moving way of basket By mechanical arm
Control way

PLC touch screen

5

Warranty
1 year warranty for spare parts, all life technical support
6
Certificate
CE, RoHS; FCC, REACH
7
Production time
35 working days after deposit




Working way

The entire process of putting the basket into the cleaning tank, removing the basket and moving the basket between the tanks is automatically completed by a single-arm manipulator. This ultrasonic cleaning machine has a total of 3 working tanks, plus 1 loading and unloading station, a total of 4 stations.



Same series with different size for your choice:

Model Size of every tank Tank Volume Ultrasonic
Power
Heating Power of Ultrasonic tank Heating Power of drying tank Transducer
L*W*H (mm) (L) (W) (W) 750W (pcs)
JTM-3024AD 500X300X250 38L*3 600W 1500W*2 750W 24pcs
JTM-3036AD 500X350X300 53L*3 900W 1500W*2 750W 36pcs
JTM-3048AD 550X400X350 77L*3 1200W 3000W*2 750W 48pcs
JTM-3060AD 550X450X400 99L*3 1500W 3000W*2 750W 60pcs
JTM-3072AD 600X500X450 135L*3 1800W 4500W*2 750W 72pcs
JTM-3096AD 700X500X500 175L*3 2400W 6000W*2 750W 96pcs
JTM-3120AD 800X600X550 264L*3 3000W 6000W*2 750W 120pcs
JTM-3144AD 1000X600X600

360L*3

3600W 9000W*2 750W 144pcs
JTM-3216AD 1000X900X600 540L*3 5400W 18000W*2 1100W 216pcs
JTM-3288AD 12000*1000*800  960L*3  7200W 24000W*2 1500W 288pcs


Images:
FCC SUS304 5400W Ultrasonic Cleaning Machine 143 Gallon With Hot Air Dryer 0


Clean effect:

FCC SUS304 5400W Ultrasonic Cleaning Machine 143 Gallon With Hot Air Dryer 1
