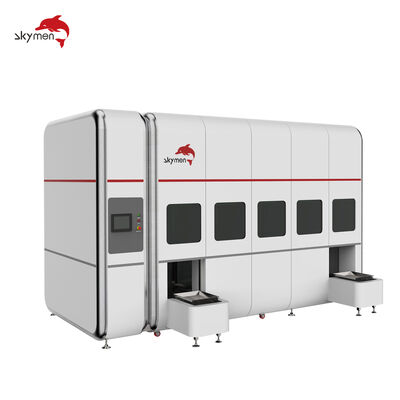

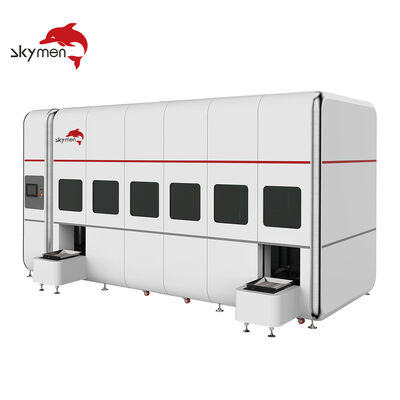

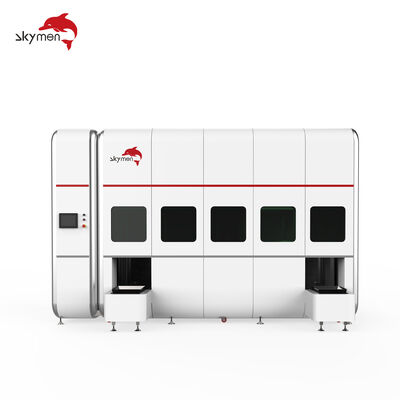

1200W SUS304 Ultrasonic Cleaning System Three Stage Wash Rinse Dry SUS316

Description
Working Way: Automated 1st Stage: Ultarsonic Cleaning
2nd Stage: Ultrasonic Rinsing 3rd Stage: Hot Air Drying
Item Movement: By Mechanical Arm Ultrasonic Power: 1200W
High Light:

1200W Ultrasonic Cleaning System

,

SUS304 Ultrasonic Cleaning System

,

SUS316 Heated Ultrasonic Cleaner

Automated Three Stage (Wash, Rinse, Dry) Ultrasonic Cleaning System by Ultrasonic Power Corporation

Skymen most popular patented automatic parts washer, Advantage not only transfer baskets, but also includes several cleaning-enhancing design features to clean even the most complex parts.



Advange:

  1. Includes many other design features to adjust cleaning action for any part design.
  2. Permits agitation of parts during cleaning and rinsing stages to flush contaminants from blind holes, cavities, and other detailed areas of the parts.
  3. Increases ultrasonic scrubbing action on parts by up to 500% by supporting batches of parts from overhead rather than from underneath.
  4. Overhead suspension design allows for parts loads which are hundreds of pounds in weight.

Equipment structure

This equipment is mainly composed of: filtration system, PLC control system, stainless steel cleaning tank, customized cleaning basket, drying system, single-arm manipulator system, bubbling system, loading and unloading table, etc.



Specification sheet:

1
Model
JTM-3024AD
2
1st Chamber

Function
Ultrasonic cleaning + Filter+ Hot water cleaning
Ultrasonic Frequency
28/40kHz (other frequency can be customized)
Tank Material
SUS304 (SUS 316 can be customized)
Thickness of tank 2mm
Inner tank dimension
500*300*250mm
Tank Capacity
38L
Transducer
12pcs
Ultrasonic Power
600W
Heating Power
1500W
Time setting of Ultrasonic
0~99 hours
Temperature setting
Room temperature ~ 95°C adjustable
Drain value
Yes
Water inlet/outlet
Yes
Filter
1 set, connect with 1st tank
Size of filter tank 400*300*250mm
Filtet element precision 5/10μ
Generator
1pcs
Generator power control 600W
Basket Yes
Basket load
150KG
3 2nd Chamber Function Ultrasonic cleaning + Bubbling + Hot water cleaning
Ultrasonic Frequency 28/40kHz (other frequency can be customized)
Tank Material SUS 304 (SUS 316 can be customized)
Thickness of tank 2mm
Inner tank dimension 500*300*250mm
Tank Capacity 38L
Transducer 12pcs
Ultrasonic Power 600W
Heating Power 1500W
Time setting of Ultrasonic 0~99 hours
Temperature setting Room temperature ~ 95°C adjustable
Drain value
Yes
Water inlet/outlet
Yes
Bubbling system Yes, air compressor is provided by user
Generator 1pcs
Generator power control 600W
Basket Yes
Basket load 150KG
3
3rd Chamber
Function
Hot air drying tank
Inner tank dimension
500*300*250mm
Turbines power
750W
Dryer power
3000W
4 Working way of machine Working way Full automatic
Loading and unloding platform Yes
Moving way of basket By mechanical arm
Control way

PLC touch screen

5

Warranty
1 year warranty for spare parts, all life technical support
6
Certificate
CE, RoHS; FCC, REACH
7
Production time
35 working days after deposit


Cleaning process: (cleaning direction: from left to right)

1200W SUS304 Ultrasonic Cleaning System Three Stage Wash Rinse Dry SUS316 0

Working way

The entire process of putting the basket into the cleaning tank, removing the basket and moving the basket between the tanks is automatically completed by a single-arm manipulator. This ultrasonic cleaning machine has a total of 3 working tanks, plus 1 loading and unloading station, a total of 4 stations .





Travel mechanism configuration list
1,Form: The entire process of putting the basket into the cleaning tank, removing the basket and moving the basket between the tanks is completed by a single-arm manipulator.
2,Loading and unloading
(a) Purpose: Put the cleaning rack on the feeding rack manually and wait for cleaning;
(b) Material: All stainless steel + aluminum alloy bracket + belt
(c) Power: With brake motor, equipped with infrared photoelectric sensor switch, intelligent
induction start and stop.
3,Swing system
(a) It is equipped with mechanical swing up and down, equipped with HP motor and tooth box.
(b) The swing frame is all made of stainless steel.
4,Mechanical transport system
(a) The entire process of putting the basket into the cleaning tank, removing the basket and moving
the basket between the tanks is automatically completed by the manipulator.
(b) Stainless steel and engineering plastics, etc.
(c) Structure:
The vertical lifting mechanical transmission of the automatic manipulator (single arm) is driven by a W brake motor, equipped with a tooth box flange type, and is driven by a stainless steel chain, equipped with guide rails and sliding blocks to maintain balance and stability; the horizontal movement of the automatic manipulator (single arm) is mechanically driven by W servo motor is equipped with tooth box flange type, equipped with guide rail, sliding block and rack and pinion to maintain balance and stability; it is driven by heavy-duty drive rubber wheels.
(d) Control
All driving parameters can be adjusted in the man-machine interface. All movable wires and signal line of the automatic manipulator system are protected and operated by tank rails.
5,Whole machine outer packaging (beautiful and dustproof type):
The shell support of the cleaning room is made of 40×40 and 40×80 universal aluminum tanks. The shell is packaged with 1.0mm thick electrolytic board powder spraying and acrylic board movable doors and transparen



Same series with different size for your choice:

Model Size of every tank Tank Volume Ultrasonic
Power
Heating Power of Ultrasonic tank Heating Power of drying tank Transducer
L*W*H (mm) (L) (W) (W) 750W (pcs)
JTM-3024AD 500X300X250 38L*3 600W 1500W*2 750W 24pcs
JTM-3036AD 500X350X300 53L*3 900W 1500W*2 750W 36pcs
JTM-3048AD 550X400X350 77L*3 1200W 3000W*2 750W 48pcs
JTM-3060AD 550X450X400 99L*3 1500W 3000W*2 750W 60pcs
JTM-3072AD 600X500X450 135L*3 1800W 4500W*2 750W 72pcs
JTM-3096AD 700X500X500 175L*3 2400W 6000W*2 750W 96pcs
JTM-3120AD 800X600X550 264L*3 3000W 6000W*2 750W 120pcs
JTM-3144AD 1000X600X600

360L*3

3600W 9000W*2 750W 144pcs
JTM-3216AD 1000X900X600 540L*3 5400W 18000W*2 1100W 216pcs
JTM-3288AD 12000*1000*800  960L*3  7200W 24000W*2 1500W 288pcs
