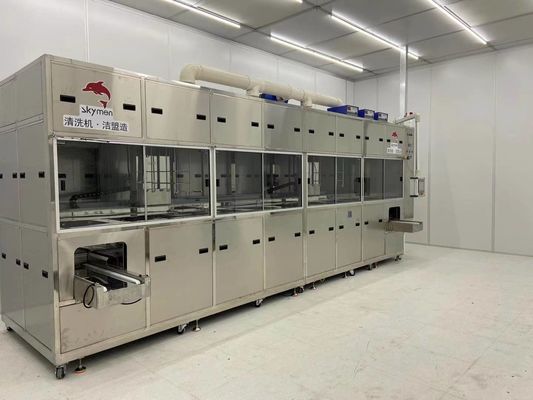

Three Chamber Automatic Ultrasonic Cleaning Machine

Three Chamber Automatic Ultrasonic Cleaning Machine
Three Chamber Automatic Ultrasonic Cleaning Machine Three Chamber Automatic Ultrasonic Cleaning Machine Three Chamber Automatic Ultrasonic Cleaning Machine Three Chamber Automatic Ultrasonic Cleaning Machine

Large Image :  Three Chamber Automatic Ultrasonic Cleaning Machine

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JTM-3144AD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: In Stock
Payment Terms: T/T
Supply Ability: 800 pcs per month

Three Chamber Automatic Ultrasonic Cleaning Machine

Description
Model: JTM-3144AD Working Way: Automatic
Moving Way: By Convey Belt Control Way: By Mechanical Arm
Chamber: 3 Chambers 1st Chamber: Ultarsonic Cleaning
2nd Chamber: Ultrasonic Rinsing+Bubbling System 3rd Chamber: Hot Air Drying
High Light:

Three chamber Automatic Ultrasonic Cleaning Machine

,

Three chamber Ultrasonic Cleaning Machine

,

Automatic Ultrasonic Cleaning Machine 360L

Three-chamber Automatic Ultrasonic Cleaning Machine for Aerospace Aircraft 360L Mechnical Control



Equipment structure

This equipment is mainly composed of: filtration system, PLC control system, stainless steel cleaning tank, customized cleaning basket, drying system, single-arm manipulator system, bubbling system, loading and unloading table, etc.



Product Specification:

1
Model
JTM-3144AD
2
1st Chamber

Function
Ultrasonic cleaning + Filter+ Hot water cleaning
Ultrasonic Frequency
28/40kHz (other frequency can be customized)
Tank Material
SUS 304 (SUS 316 can be customized)
Thickness of tank 2mm
Inner tank dimension
1000*600*600mm
Tank Capacity
360L
Transducer
72pcs
Ultrasonic Power
3600W
Heating Power
9000W
Time setting of Ultrasonic
0~99 hours
Temperature setting
Room temperature ~ 95°C adjustable
Drain value
Yes
Water inlet/outlet
Yes
Filter
1 set, connect with 1st tank
Size of filter tank 600*500*400mm
Filtet element precision 5/10μ
Generator
2 sets
Generator power control 1800W
Basket Yes
Basket load
250KG
3 2nd Chamber Function Ultrasonic cleaning + Bubbling + Hot water cleaning
Ultrasonic Frequency 28/40kHz (other frequency can be customized)
Tank Material SUS 304 (SUS 316 can be customized)
Thickness of tank 2mm
Inner tank dimension 1000*600*600mm
Tank Capacity 360L
Transducer 72pcs
Ultrasonic Power 3600W
Heating Power 9000W
Time setting of Ultrasonic 0~99 hours
Temperature setting Room temperature ~ 95°C adjustable
Drain value
Yes
Water inlet/outlet
Yes
Bubbling system Yes, air compressor is provided by user
Generator 2 sets
Generator power control 1800W
Basket Yes
Basket load 250KG
3
3rd Chamber
Function
Hot air drying tank
Inner tank dimension
1000*600*600mm
Turbines power
750W
Dryer power
3000W
4 Working way of machine Working way Full automatic
Loading and unloding platform Yes
Moving way of basket By mechanical arm
Control way

PLC touch screen

5
Packing
Overall size
360*220*150cm
Packing size
370*230*170cm
Packing detail By wooden case(No logs, free of fumigation)
N.W/G.W
900KG/1000KG

6

Warranty
1 year warranty for spare parts, all life technical support
7
Certificate
CE, RoHS; FCC, REACH
8
Production time
35 working days after deposit


Cleaning process: (cleaning direction: from left to right)

Three Chamber Automatic Ultrasonic Cleaning Machine 0

Working way

The entire process of putting the basket into the cleaning tank, removing the basket and moving the basket between the tanks is automatically completed by a single-arm manipulator. This ultrasonic cleaning machine has a total of 3 working tanks, plus 1 loading and unloading station, a total of 4 stations .



Cleaning time and production capacity

The cleaning basket bears 150kg, and the cleaning time can be set and adjusted according to the cleaning process, about 10-15 minutes per basket.



PLC system and circuit

PLC system: PLC uses Mitsubishi brand, touch screen uses Weinview brand.

Circuit: Air switch uses Chint, other components use domestic well-known brand high-quality products.



Machine outer shell

The rear part of the machine is all installed with stainless steel boards, and the filter circulation structure, spray pump, generator frame, etc. are all wrapped in high-quality stainless steel.



Travel mechanism configuration list
1. Form: The entire process of putting the basket into the cleaning tank, removing the basket and moving the basket between the tanks is completed by a single-arm manipulator.
2. Loading and unloading
(a) Purpose: Put the cleaning rack on the feeding rack manually and wait for cleaning;
(b) Material: All stainless steel + aluminum alloy bracket + belt
(c) Power: With brake motor, equipped with infrared photoelectric sensor switch, intelligent
induction start and stop.
3. Swing system
(a) It is equipped with mechanical swing up and down, equipped with HP motor and tooth box.
(b) The swing frame is all made of stainless steel.
4. Mechanical transport system
(a) The entire process of putting the basket into the cleaning tank, removing the basket and moving
the basket between the tanks is automatically completed by the manipulator.
(b) Stainless steel and engineering plastics, etc.
(c) Structure:
The vertical lifting mechanical transmission of the automatic manipulator (single arm) is driven by a W brake motor, equipped with a tooth box flange type, and is driven by a stainless steel chain, equipped with guide rails and sliding blocks to maintain balance and stability; the horizontal movement of the automatic manipulator (single arm) is mechanically driven by W servo motor is equipped with tooth box flange type, equipped with guide rail, sliding block and rack and pinion to maintain balance and stability; it is driven by heavy-duty drive rubber wheels.
(d) Control
All driving parameters can be adjusted in the man-machine interface. All movable wires and signal line of the automatic manipulator system are protected and operated by tank rails.
5. Whole machine outer packaging (beautiful and dustproof type):
The shell support of the cleaning room is made of 40×40 and 40×80 universal aluminum tanks. The shell is packaged with 1.0mm thick electrolytic board powder spraying and acrylic board movable doors and transparen



Same series with different size for your choice:

Model Size of every tank Tank Volume Ultrasonic
Power
Heating Power of Ultrasonic tank Heating Power of drying tank Transducer
L*W*H (mm) (L) (W) (W) 750W (pcs)
JTM-3024AD 500X300X250 38L*3 600W 1500W*2 750W 24pcs
JTM-3036AD 500X350X300 53L*3 900W 1500W*2 750W 36pcs
JTM-3048AD 550X400X350 77L*3 1200W 3000W*2 750W 48pcs
JTM-3060AD 550X450X400 99L*3 1500W 3000W*2 750W 60pcs
JTM-3072AD 600X500X450 135L*3 1800W 4500W*2 750W 72pcs
JTM-3096AD 700X500X500 175L*3 2400W 6000W*2 750W 96pcs
JTM-3120AD 800X600X550 264L*3 3000W 6000W*2 750W 120pcs
JTM-3144AD 1000X600X600

360L*3

3600W 9000W*2 750W 144pcs
JTM-3216AD 1000X900X600 540L*3 5400W 18000W*2 1100W 216pcs
JTM-3288AD 12000*1000*800  960L*3  7200W 24000W*2 1500W 288pcs

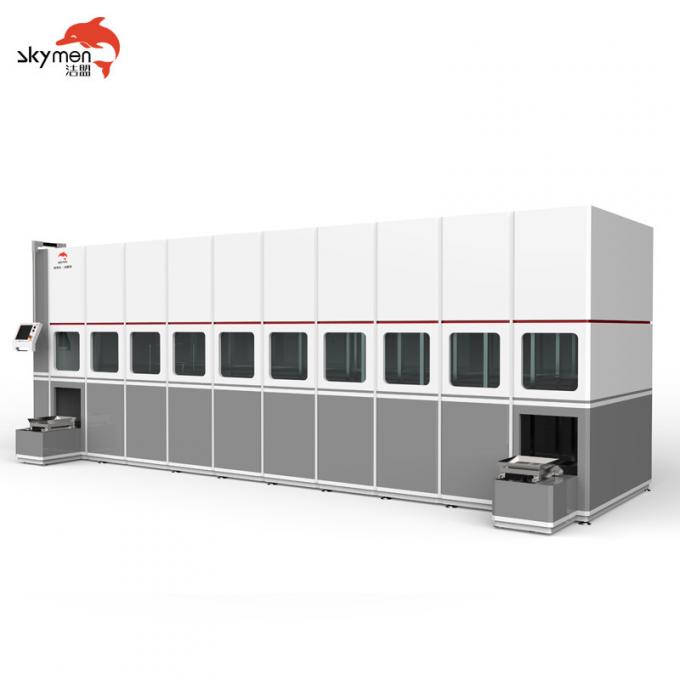

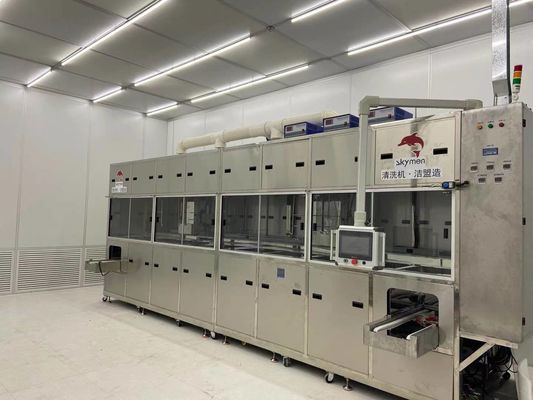

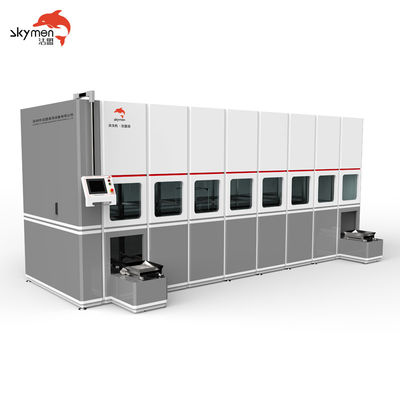

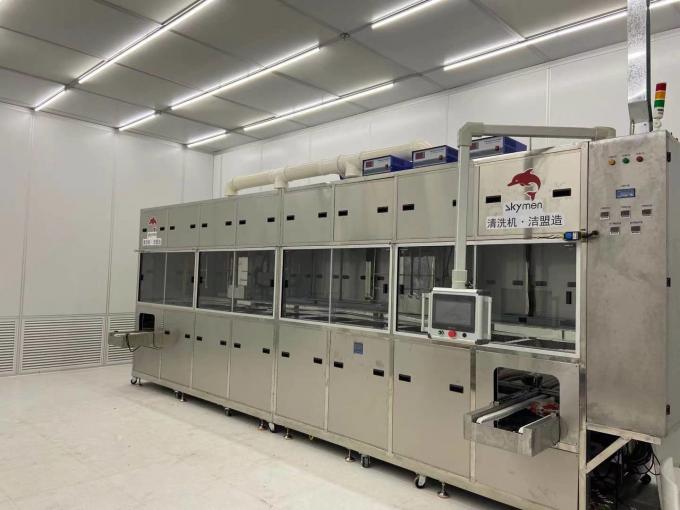

Product Images:
Three Chamber Automatic Ultrasonic Cleaning Machine 1Three Chamber Automatic Ultrasonic Cleaning Machine 2Three Chamber Automatic Ultrasonic Cleaning Machine 3Three Chamber Automatic Ultrasonic Cleaning Machine 4

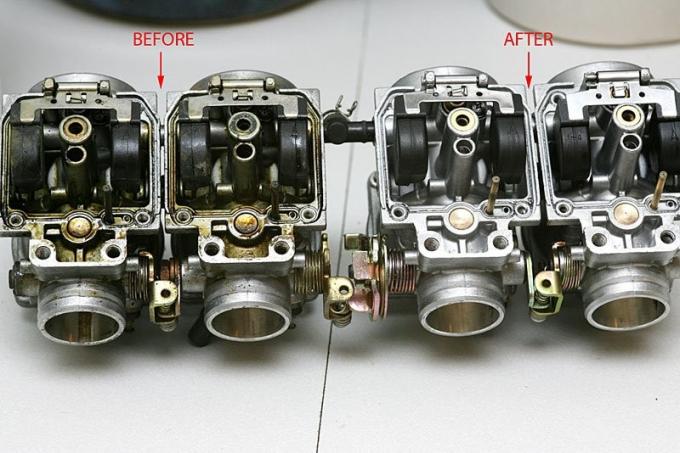

Clean effect:

Three Chamber Automatic Ultrasonic Cleaning Machine 5Three Chamber Automatic Ultrasonic Cleaning Machine 6Three Chamber Automatic Ultrasonic Cleaning Machine 7
Three Chamber Automatic Ultrasonic Cleaning Machine 8

About our company:

Three Chamber Automatic Ultrasonic Cleaning Machine 9

Three Chamber Automatic Ultrasonic Cleaning Machine 10

Three Chamber Automatic Ultrasonic Cleaning Machine 11Three Chamber Automatic Ultrasonic Cleaning Machine 12

History:
Skymen Cleaning Equipment Shenzhen Co., Ltd., was founded in 2007,which follows the brand development strategy of “based in Shenzhen, radiating throughout the country, expanding overseas”.
Skymen also owns a professional R&D team to keep the pace with international ultrasonic technology. A passionate and young sales team sell to the world through different channels.
