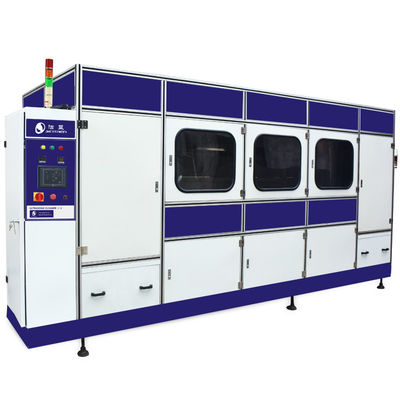

Ultrasonic Cleaner with Automated Transfer System for Cleaning Die Stamping Parts
Automated ultrasonic cleaners System:
Rack and pinion style. Capable of different recipe programs and capable of skipping stations. Load and unload stations equipped with conveyor feed in-axes with machine.
Fast moving automation platform available, and includes features not included with any competitive equipment.
Smallest most compact automation platform available. System arrives FULLY PROGRAMMED with turn-key operation. No programming other than recipe data will be required. System also includes the following features:
· Single or Dual position load and unload platform
· 3-color Light tower to indicate operating condition of system from a distance
· Automation Direct touch-screen (AB optional)
· Automation Direct PLC control system (AB optional)
· 9 processing baskets
· Random Recipe Processor: Operators can add different parts with different recipes at any time. Other systems must process all baskets in queue with the same recipe. The system allows any basket with any recipe to be added at any time.
· 100 pound load capacity
· Capabilities of loading and unloading inline at both ends with customers load/unload station.
· Conveyor Belt access points / PLC Hand shake
Specification sheet:
1
|
Model
|
JTM-3048AD
|
|
2
|
1st Chamber
|
Function
|
Ultrasonic cleaning + Filter+ Hot water cleaning
|
Ultrasonic Frequency
|
28/40kHz (other frequency can be customized)
|
||
Tank Material |
SUS 304 (SUS 316 can be customized)
|
||
Thickness of tank | 2mm | ||
Inner tank dimension
|
550*400*350mm
|
||
Tank Capacity
|
77L
|
||
Transducer
|
24pcs
|
||
Ultrasonic Power
|
1200W
|
||
Heating Power
|
3000W
|
||
Time setting of Ultrasonic
|
0~99 hours
|
||
Temperature setting
|
Room temperature ~ 95°C adjustable
|
||
Drain value
|
Yes
|
||
Water inlet/outlet
|
Yes
|
||
Filter
|
1 set, connect with 1st tank
|
||
Size of filter tank | 500*300*300mm | ||
Filtet element precision | 5/10μ | ||
Generator
|
1pcs
|
||
Generator power control | 1200W | ||
Basket | Yes | ||
Basket load
|
150KG
|
||
3 | 2nd Chamber | Function | Ultrasonic cleaning + Bubbling + Hot water cleaning |
Ultrasonic Frequency | 28/40kHz (other frequency can be customized) | ||
Tank Material | SUS 304 (SUS 316 can be customized) | ||
Thickness of tank | 2mm | ||
Inner tank dimension | 550*400*350mm | ||
Tank Capacity | 77L | ||
Transducer | 24pcs | ||
Ultrasonic Power | 900W | ||
Heating Power | 3000W | ||
Time setting of Ultrasonic | 0~99 hours | ||
Temperature setting | Room temperature ~ 95°C adjustable | ||
Drain value |
Yes
|
||
Water inlet/outlet |
Yes
|
||
Bubbling system | Yes, air compressor is provided by user | ||
Generator | 1pcs | ||
Generator power control | 1200W | ||
Basket | Yes | ||
Basket load | 150KG | ||
3
|
3rd Chamber
|
Function
|
Hot air drying tank
|
Inner tank dimension
|
550*400*350mm
|
||
Turbines power
|
750W
|
||
Dryer power
|
3000W
|
||
4 | Working way of machine | Working way | Full automatic |
Loading and unloding platform | Yes | ||
Moving way of basket | By mechanical arm | ||
Control way |
PLC touch screen |
||
5 |
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
7
|
Production time
|
35 working days after deposit
|
Cleaning process: (cleaning direction: from left to right)
Working way
The entire process of putting the basket into the cleaning tank, removing the basket and moving the basket between the tanks is automatically completed by a single-arm manipulator. This ultrasonic cleaning machine has a total of 3 working tanks, plus 1 loading and unloading station, a total of 4 stations .
Same series with different size for your choice:
Model | Size of every tank | Tank Volume | Ultrasonic Power |
Heating Power of Ultrasonic tank | Heating Power of drying tank | Transducer |
L*W*H (mm) | (L) | (W) | (W) | 750W | (pcs) | |
JTM-3024AD | 500X300X250 | 38L*3 | 600W | 1500W*2 | 750W | 24pcs |
JTM-3036AD | 500X350X300 | 53L*3 | 900W | 1500W*2 | 750W | 36pcs |
JTM-3048AD | 550X400X350 | 77L*3 | 1200W | 3000W*2 | 750W | 48pcs |
JTM-3060AD | 550X450X400 | 99L*3 | 1500W | 3000W*2 | 750W | 60pcs |
JTM-3072AD | 600X500X450 | 135L*3 | 1800W | 4500W*2 | 750W | 72pcs |
JTM-3096AD | 700X500X500 | 175L*3 | 2400W | 6000W*2 | 750W | 96pcs |
JTM-3120AD | 800X600X550 | 264L*3 | 3000W | 6000W*2 | 750W | 120pcs |
JTM-3144AD | 1000X600X600 |
360L*3 |
3600W | 9000W*2 | 750W | 144pcs |
JTM-3216AD | 1000X900X600 | 540L*3 | 5400W | 18000W*2 | 1100W | 216pcs |
JTM-3288AD | 12000*1000*800 | 960L*3 | 7200W | 24000W*2 | 1500W | 288pcs |
