Product Details:
|
| Ultrasonic Power: | 600/1080W | Heating Power: | 500W |
|---|---|---|---|
| Tank Capacity: | 30L | Inner Tank Size: | 19.7x11.8x7.9" |
| Machine Dimension: | 23x13x13" | Gross Weight: | 17KG |
| High Light: | 1080W Electric Ultrasonic Cleaner,30L Electric Ultrasonic Cleaner,Beaker Clamp Ultrasonic Engine Bath |
||

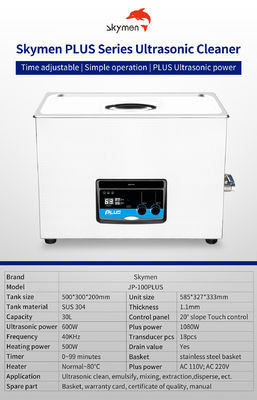

Ultrasonic Cleaner for Beaker And Clamp Lab Instruments 30L Ultrasonic Bath
| Model No. | JP-100PLUS |
| Function |
Ultrasonic cleaning + Hot water cleaning
|
|
Ultrasonic Frequency
|
40kHz |
|
Tank Material
|
SUS 304
|
|
Tank Capacity
|
30 Liter
|
|
Inner tank dimension
|
500*300*200mm / 19.7x11.8x7.9" (Length*width*deep)
|
|
Machine dimension
|
585*330*330mm / 23x13x13"(Length*width*height)
|
|
Gross weight of machine
|
17KG; packed by foam in carton
|
|
Ultrasonic Power
|
600/1080W
|
|
Heating Power
|
500W
|
|
Time setting of Ultrasonic
|
0~30 minutes
|
|
Temperature setting
|
Room temperature ~ 80°C / 176°F adjustable
|
|
Drain value
|
Yes
|
|
Lid
|
Yes
|
|
Basket
|
Yes
|
|
Power supply
|
220V, 110V
|
|
Warranty
|
1 Year, free spare parts within 1 year, online technical support
|
|
Certificate
|
CE; RoHS; FCC; REACH
|
|
Lead time |
3 Working days
|
|
Shipping time
|
5~7 day by express
|
| Model | Capacity | Tank Size | Ultrasonic Power | Heating Power | Frequency | Tank thickness | Material |
| (L) | (L*W*H)mm | (W) | (W) | (KHz) | (mm) | SUS304 | |
| JP-020PLUS | 3.2 | 240*135*100 | 120/180 | 100 | 40 | 1 | SUS304 |
| JP-030PLUS | 4.5 | 300*150*100 | 180/300 | 200 | 40 | 1 | SUS304 |
| JP-031PLUS | 6.5 | 300*150*150 | 180/300 | 200 | 40 | 1 | SUS304 |
| JP-040PLUS | 10 | 300*240*150 | 240/480 | 200 | 40 | 1 | SUS304 |
| JP-060PLUS | 15 | 330*300*150 | 360/600 | 300 | 40 | 1 | SUS304 |
| JP-080PLUS | 22 | 500*300*150 | 480/840 | 500 | 40 | 1 | SUS304 |
| JP-100PLUS | 30 | 500*300*200 | 600/1080 | 500 | 40 | 1 | SUS304 |
Cleaning effect show:
The Cleaning Mechanism
Once the power cable of an ultrasonic cleaning machine is plugged into a power source and the machine is switched on, the transducer starts changing size almost instantly. It then converts the electrical energy to ultrasonic energy.
Due to the excitement, the transducer increases in size, creates high-frequency compression sound waves and results in rapid formation and collapse of cavitation bubbles.
As the compression waves continue, the cavitation bubbles will grow larger, and when they reach a certain size and can’t retain their shape any longer, the bubbles stir through the liquid, turning it apart.
These bubbles are what impacts against the objects in the tank, causing dust, dirt, germs, oil, pigments, and other contaminants that might have stuck to the items to come off. The same thing occurs when you put a portable ultrasound machine inside a sink or bowl
