Product Details:
|
| Ultrasonic Power: | 240/480W | Heating Power: | 200W |
|---|---|---|---|
| Tank Capacity: | 10L | Inner Tank Size: | 11.8x9.4x5.9" |
| Machine Dimension: | 15x11.4x11" | Gross Weight: | 8.6G |
| High Light: | Degassing Sonic Ultrasonic Cleaner,3 Gallon Sonic Ultrasonic Cleaner,480W Industrial Ultrasonic Parts Cleaner |
||

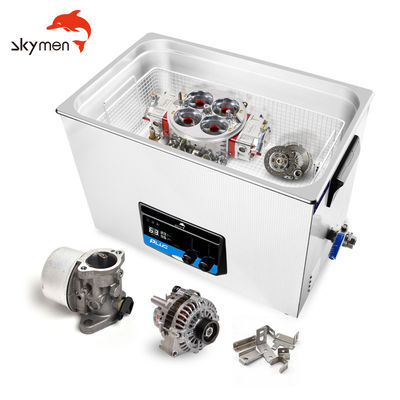

Ultrasonic Cleaner for Precision Metal Stamping Parts 3 Gallon Ultrasonic Bath
Degassing is used for the reliable removal of gas from samples (e.g. for the removal of carbon dioxide) or for the degassing of HPLC solvents in the analytical lab.
Mixing combines two liquids that are not ordinarily mixable, e.g. oil in water.
Dispersing is used with for substances that are not ordinarily mixable, for example solid substances in liquid such as pigments in water.
Cleaning applies to laboratory glassware or laboratory instruments, even joints of articulated components and in hollow bodies. A special application is cleaning analytical sieves. Combined with elma lab clean chemicals this is an environmentally friendly application.
| Model No. | JP-040PLUS |
| Function |
Ultrasonic cleaning + Hot water cleaning
|
|
Ultrasonic Frequency
|
40kHz |
|
Tank Material
|
SUS 304
|
|
Tank Capacity
|
10 Liter
|
|
Inner tank dimension
|
300*240*150mm / 11.8x9.4x5.9" (Length*width*deep)
|
|
Machine dimension
|
380*290*280mm / 15x11.4x11"(Length*width*height)
|
|
Gross weight of machine
|
8.6KG; packed by foam in carton
|
|
Ultrasonic Power
|
240/480W
|
|
Heating Power
|
200W
|
|
Time setting of Ultrasonic
|
0~30 minutes
|
|
Temperature setting
|
Room temperature ~ 80°C / 176°F adjustable
|
|
Drain value
|
Yes
|
|
Lid
|
Yes
|
|
Basket
|
Yes
|
|
Power supply
|
220V, 110V
|
|
Warranty
|
1 Year, free spare parts within 1 year, online technical support
|
|
Certificate
|
CE; RoHS; FCC; REACH
|
|
Lead time |
3 Working days
|
|
Shipping time
|
5~7 day by express
|
| Model | Capacity | Tank Size | Ultrasonic Power | Heating Power | Frequency | Tank thickness | Material |
| (L) | (L*W*H)mm | (W) | (W) | (KHz) | (mm) | SUS304 | |
| JP-020PLUS | 3.2 | 240*135*100 | 120/180 | 100 | 40 | 1 | SUS304 |
| JP-030PLUS | 4.5 | 300*150*100 | 180/300 | 200 | 40 | 1 | SUS304 |
| JP-031PLUS | 6.5 | 300*150*150 | 180/300 | 200 | 40 | 1 | SUS304 |
| JP-040PLUS | 10 | 300*240*150 | 240/480 | 200 | 40 | 1 | SUS304 |
| JP-060PLUS | 15 | 330*300*150 | 360/600 | 300 | 40 | 1 | SUS304 |
| JP-080PLUS | 22 | 500*300*150 | 480/840 | 500 | 40 | 1 | SUS304 |
| JP-100PLUS | 30 | 500*300*200 | 600/1080 | 500 | 40 | 1 | SUS304 |
Cleaning effect show:
Safe, easy-to-use ultrasonic cleaners from Grainger can be especially effective for cleaning metal and plastic machinery and parts. Choose the size, timing and heat options to fit specific cleaning tasks, such as removing blood, proteins and contaminants from glassware and lab instruments; eliminating dirt, grease, waxes and oils from switches and gears and cleaning flux and contaminants from electronics
