CE 840W 22L Ultrasonic Pcb Cleaner SUS304 For Hardware Fitting

CE 840W 22L Ultrasonic Pcb Cleaner SUS304 For Hardware Fitting
CE 840W 22L Ultrasonic Pcb Cleaner SUS304 For Hardware Fitting
CE 840W 22L Ultrasonic Pcb Cleaner SUS304 For Hardware Fitting CE 840W 22L Ultrasonic Pcb Cleaner SUS304 For Hardware Fitting CE 840W 22L Ultrasonic Pcb Cleaner SUS304 For Hardware Fitting

Large Image :  CE 840W 22L Ultrasonic Pcb Cleaner SUS304 For Hardware Fitting

Product Details:
Place of Origin: China
Brand Name: Skymen
Certification: CE, ROHS, FCC
Model Number: JP-080PLUS
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Foam carton
Delivery Time: In Stock

CE 840W 22L Ultrasonic Pcb Cleaner SUS304 For Hardware Fitting

Description
Ultrasonic Power: 480/840W Heating Power: 500W
Tank Capacity: 22L Inner Tank Size: 19.7x11.8x5.9"
Machine Dimension: 23x13x11" Gross Weight: 15KG
High Light:

840W Ultrasonic Pcb Cleaner

,

22L Ultrasonic Pcb Cleaner

,

SUS304 Table Top Ultrasonic Bath

Ultrasonic Cleaner for Precision Hardware Fitting 22L Ultrasonic Bath With CE Certificate

  • Stainless steel – most of the cleaners are constructed with either of the materials, and this makes the ultrasonic cleaning machines durable and lasts a lifetime.
  • Piezoceramic transducers - they are always found at the bottom or side of the tank
  • Tank – many of the cleaners come with a tank. Each tank varies in size and accommodates different gallons of solvent. There are some without tanks. You will need a bowl or sink to use them. Sonic Soak is a perfect example.
  • On and off switch – found in all models. Some models offer automatic shut off
  • Timers and temperature controllers – this feature is not found in all models
  • Drainer – not all ultrasonic machines have this feature, but for the ones that have, the drainer helps to drain solution after cleaning
  • Electrical energy – it powers the transducers. Most ultrasonic cleaners run at an average power of 50 watts to 100 watts per gallon.
  • Operating modes ­– some ultrasonic cleaning machines has sweep modes that give a slight fluctuation in the frequency and a pulse mode that boosts ultrasonic power.
  • Rack or basket – helps to prevent scratches or etch while cleaning your item

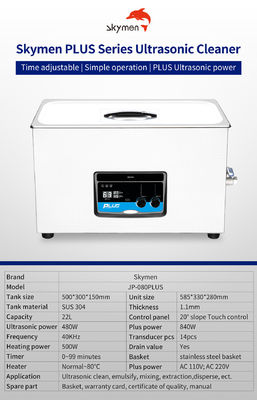

Specifications:
Model No. JP-080PLUS
Function
Ultrasonic cleaning + Hot water cleaning
Ultrasonic Frequency
40kHz
Tank Material
SUS304
Tank Capacity
22 Liter
Inner tank dimension
500*300*150mm 19.7x11.8x5.9" (Length*width*deep)
Machine dimension
585*330*280mm / 23x13x11"(Length*width*height)
Gross weight of machine
15KG; packed by foam in carton
Ultrasonic Power
480/840W
Heating Power
500W
Time setting of Ultrasonic
0~30 minutes
Temperature setting
Room temperature ~ 80°C / 176°F adjustable
Drain value
Yes
Lid
Yes
Basket
Yes
Power supply
220V, 110V
Warranty
1 Year, free spare parts within 1 year, online technical support
Certificate
CE; RoHS; FCC; REACH

Lead time

3 Working days
Shipping time
5~7 day by express
CE 840W 22L Ultrasonic Pcb Cleaner SUS304 For Hardware Fitting 0
Same serie machine with different capacity:
Model Capacity Tank Size Ultrasonic Power Heating Power Frequency Tank thickness Material
(L) (L*W*H)mm (W) (W) (KHz) (mm) SUS304
JP-020PLUS 3.2 240*135*100 120/180 100 40 1 SUS304
JP-030PLUS 4.5 300*150*100 180/300 200 40 1 SUS304
JP-031PLUS 6.5 300*150*150 180/300 200 40 1 SUS304
JP-040PLUS 10 300*240*150 240/480 200 40 1 SUS304
JP-060PLUS 15 330*300*150 360/600 300 40 1 SUS304
JP-080PLUS 22 500*300*150 480/840 500 40 1 SUS304
JP-100PLUS 30 500*300*200 600/1080 500 40 1 SUS304

Cleaning effect show:

CE 840W 22L Ultrasonic Pcb Cleaner SUS304 For Hardware Fitting 1
Skymen – the specialists for ultrasonic technology work in close cooperation with the customers to develop new ultrasonic cleaning processes for laboratory applications, such as analyzing, sample processing and cleaning of laboratory instruments. The range of our ultrasonic units is optimized for use in laboratories. The Skymen units are indispensable both for research and for the practical use in the lab to find solutions for problems and to get reproducible test results.
Skymen offers various different types of ultrasonic cleaners. Each series consists of units of different sizes. They are designed for special applications and meet the requirements of the everyday work in a lab.
