Product Details:
|
Model: | JP-2144H | First Tank Volume: | 960L |
---|---|---|---|
First Tank Size: | 1200X1000X800mm | Transducers: | 144pcs; 50W Of Every Transducer |
Ultrasonic Power: | 7200W | Heating Power: | 24000W |
Heating Power Of Dryer: | 1500W | Frequency: | 28/40KHz |
Highlight: | ultrasonic cleaning device,ultrasonic washing machine |

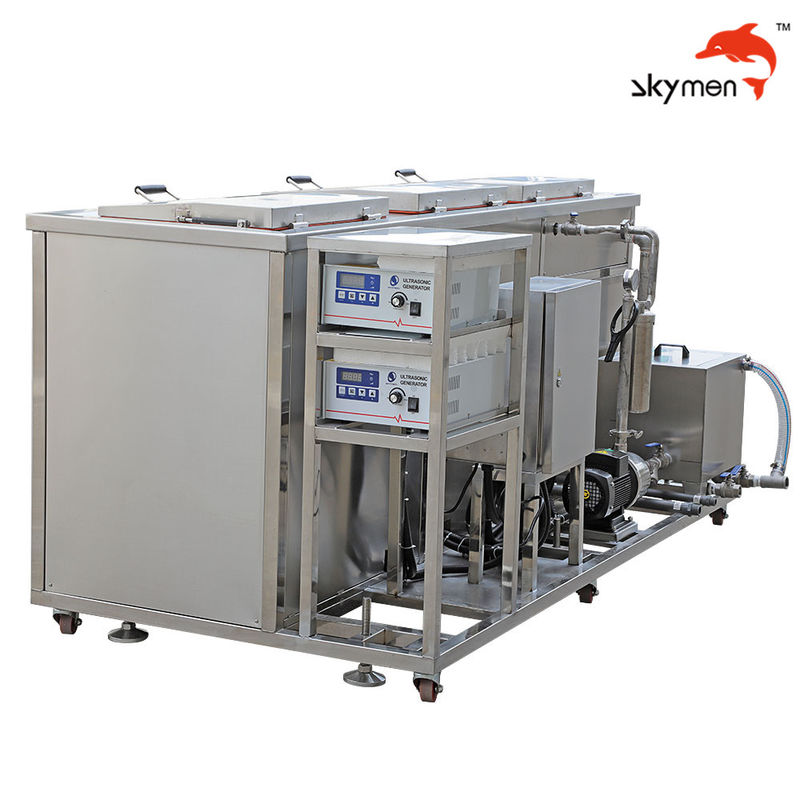

1000L Ultrasonic Cleaner 7200W for heater exchangers with Drying System 28/40KHz
Specification
Model | JP-2144H |
1st Tank Volume | 960L |
2nd Tank Volume | 960L |
First tank size | 1200X1000X800mm |
Second tank size | 1200X1000X800mm |
Transducers | 144pcs 50W of every transducer |
Ultrasonic Power | 7200W |
Heating Power of Ultrasonic tank | 24000W |
Heating Power of Drying tank | 1500W |
Frenquency | 28KHz/40KHz |
Drying System | 1 set |
Unit size | 2950*1300*1500mm |
Packing size | 3010*1360*1620mm |
Timer | 0~99 minutes adjustable |
Heater | Room temperature~99℃ adjustable |
Material | SUS 304 default, can be SUS 316 |
Power Supply | AC 220V 3 phase ; AC 380V 3 phase |
N.W. | 560G |
G.W. |
600KG Wrapped by film in wooden case |
Lead time | 18 working days |
Warranty | 1 year warranty period, technique support all time |
Certificates | CE, RoHS, FCC, SGS |
Advantage | Filter the dirty water; keep the water clear in tank; lower the frequency of changing water |
Images:
Clean effect:
Same series with different size for your choice:
Model | Size of every tank | Tank Volume | Ultrasonic Power |
Heating Power of Ultrasonic tank | Heating Power of drying tank | Transducer |
L*W*H (mm) | (L) | (W) | (W) | 750W | (pcs) | |
JP-2012H | 500X300X250 | 38L*2 | 600W | 1500W | 750W | 12pcs |
JP-2018H | 500X350X300 | 53L*2 | 900W | 1500W | 750W | 18pcs |
JP-2024H | 550X400X350 | 77L*2 | 1200W | 3000W | 750W | 24pcs |
JP-2030H | 550X450X400 | 99L*2 | 1500W | 3000W | 750W | 30pcs |
JP-2036H | 600X500X450 | 135L*2 | 1800W | 4500W | 750W | 36pcs |
JP-2048H | 700X500X500 | 175L*2 | 2400W | 6000W | 750W | 48pcs |
JP-2060H | 800X600X550 | 264L*2 | 3000W | 6000W | 750W | 60pcs |
JP-2072H | 1000X600X600 | 360L*2 | 3600W | 9000W | 750W | 72cs |
JP-2108H | 1000X900X600 | 540L*2 | 5400W | 18000W | 1100W | 108pcs |
JP-2144H | 12000*1000*800 | 960L*2 | 7200W | 24000W | 1500W | 144pcs |
Features:
With inlet and outlet for cleaning solution
Stainless steel tank has resistance to wear and long work life.
Free setting from 1 min to 99mins.
Normal~95℃ temperature .
With Stainless steel basket
Industrial trade power cord, more safer
With drainage
With the filter system save detergent, more environmentally friendly
Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
100% brand new and high quality!
Compared to traditional cleaning methods, ultrasonic cleaners show great advantages. Especially in specialized and group-oriented production enterprises, ultrasonic cleaning has gradually replaced traditional dipping, brushing, pressure washing, vibration cleaning and steam cleaning.
Ultrasonic cleaners are highly efficient and clean, thanks to the penetrating and cavitation shock waves that their sound waves travel through the medium. Therefore, it is easy to clean the parts with complicated shapes, and the general degreasing, descaling, phosphating and other processes can be completed in two or three minutes under the action of ultrasonic waves, and the speed can be several times higher than the conventional method. To a few dozen degrees, the cleanliness can also reach a high standard, which highlights the results that are difficult or impossible to replace with other treatment methods in many cases where the surface quality and production efficiency of the product are high.
