Product Details:
|
Product Name: | Ultrasonic Cleaner | Capacity: | 500 Liter |
---|---|---|---|
Ultrasonic Power: | 4500W | Timer: | 1~99 Hours |
Feature: | Power Adjustable | Optioal: | Aerospace Parts Cleaning |
Frequency: | 40khz | Material: | Sus304/316 |
Heating Power: | 12kw | Transducer: | 90pcs |
Brand: | Skymen | Certification: | CE |
Machine Type:: | Industrial Ultrasonic Cleane | Cleaning Process:: | Hot Water Cleaning |
Highlight: | dual frequency ultrasonic cleaner,ultrasonic washing machine |

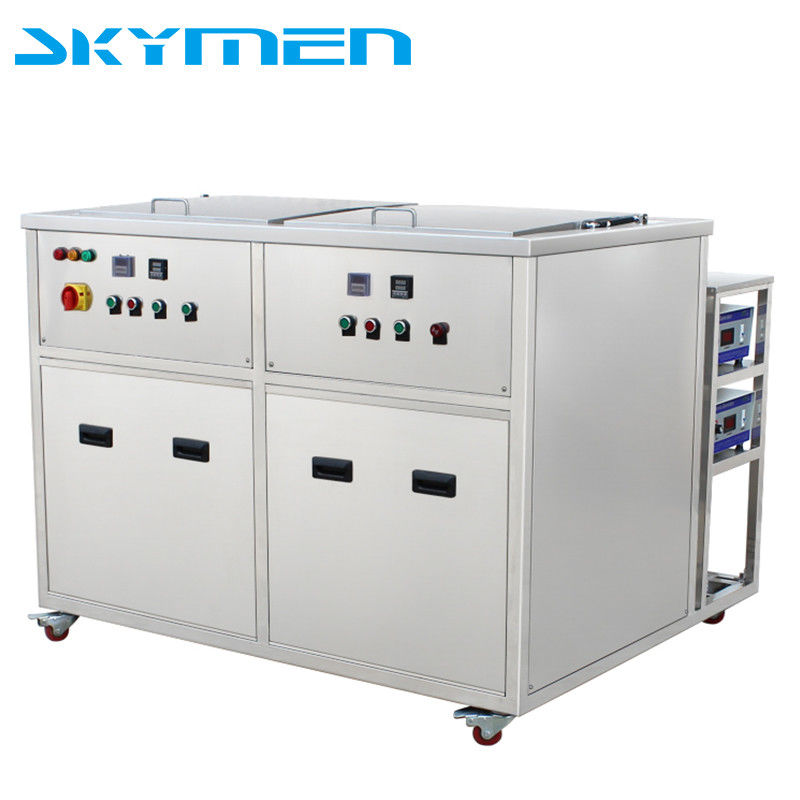

Skymen Customized Dual Tanks Ultrasonic Cleaning Machine With Rinsing / Dryer
Skymen Cleaning Equipment Shenzhen Co., Ltd., which engaged in ultrasonic cleaner field for more than 7 years. Our main products are ultrasonic cleaner with different capacity.
Our company is a famous ultrasonic manufacturer with R&D, production and sales. High quality product and after sales services is available from us.
Not only standard ultrasonic cleaner, any non-standard can be design by our engineer.
Suggestion and drawing is professional for you.
Welcome to visit our factory, provide your precious guidance and conduct business negotiation.
Advantage:
Application:
SKYMEN specifically designed to clean the internals and externals of a ultrasonic cleaning machines are used by many manufacturers to clean injection moulds, dies and tools. ,fast and effectively. With the unique cleaning techniques this machine incorporates one large higvehicle radiators, industrial compressor radiator and hydraulic coolersh powered cleaning tank . Generators control , and pump and filtration system. Best cleaning the ultimate ultrasonic cleaner for vehicle radiators,
Ultrasonic cleaning machine with rinsing tank:
|
|||
Model | JP-2048G | JP-2072G | JP-2144G |
Ultrasonic Tank Dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
Rinsing tank dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
Max. Capacity | 77L/tank | 135L/tank | 175L/tank |
Construction Case | SUS304 (Mirror shining image available) | ||
Construnction Tank | SUS304 | ||
Transducer Number | 48pcs | 72pcs | 144pcs |
Ultrasonic power(Max.) | 2400W | 3600W | 7200W |
Ultrasonic frequency | 40kHz | 40kHz | 40kHz |
Temperature range | 20~80C adjustable | ||
Heating power | 6KW | 12KW | 24KW |
Timer | 1~99h | 1~99h | 1~99h |
Drain | 3/4" Valve | ||
Lid & Basket | Available, material: SUS304 | ||
Cleaning Tank voltage | AC220V/AC380V 3phase | ||
Generator Voltage | AC110V / 220V 1phase | ||
Features | With double tank for cleaning and rinsing. With filtration system Multi-direction castors with brake; |
