Product Details:
|
| Product Name: | Industrial Ultrasonic Cleaner | Capacity: | 360 Liter |
|---|---|---|---|
| Ultrasonic Power: | 3600W | Ultrasonic Frequency: | 28/40kHz |
| Timer: | 1~99 Hours | Feature: | Power Adjustable; With Filtration System |
| Standard: | CE | Application: | Car Industry |
| High Light: | automotive ultrasonic cleaner,ultrasonic cleaning device |
||

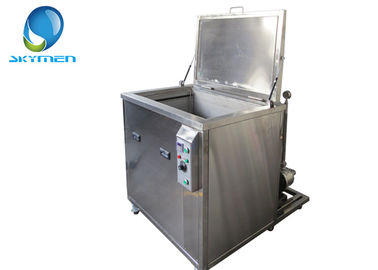

CE 360L Engine Block / Carburetor Industrial Ultrasonic Cleaner JTS-1072
Oil filtration system is optional to recycle the solvent and prevent the second pollution.
Free parts will be sent if any quality problem within 1 year warranty.
Applications:
-Industrial ultrasonic cleaner is professional for car parts washing, engine block cleaning,workshop sonic bath cleaning.
Ideal to clean rust,carbon,pait,heavy oil, without damage to parts inside tank with suitable cleaning liquid.
Description:
Competitive Advantage:
Specifications:
|
Model |
JTS-1072 |
|
Tank’s working dimension (mm) |
1000*600*600(L*W*H) |
|
Overall dimension (mm) |
1180*780*720(L*W*H) |
|
Tank’s total capacity |
360L |
|
Tank’s material |
SUS304 / SUS316 |
|
In-tank surface finishing |
Hard-Cr Plating Treatment ( 20+ microns ) |
|
Housing’s material |
Stainless steel |
|
Ultrasonic frequency |
28kHz / 40kHz |
|
Ultrasonic transducer |
72pcs |
|
Ultrasonic output power (MAX.) |
3600W |
|
Electronic generator |
KG3600 |
|
Heater’s (hot plate) power |
9KW |
Notice: Tank size can be design based on your requirement.
Skymen JTS Series:
|
Skymen Model No. |
JTS-1030 |
JTS-1036 |
JTS-1060 |
JTS-1072 |
JTS-1108 |
JTS-1144 |
||||
|
TANK DIMENSION(mm) |
500x406x500 |
500x460x550 |
700x650x650 |
1000x600x600 |
1000x900x600 |
1200x1000x800 |
||||
|
OVERALL DIMENSION(mm) |
680x586x850 |
680x640x900 |
900x850x1000 |
1200x800x950 |
1240x1140x950 |
1440x1240x1150 |
||||
|
MAX. CAPACITY |
101L |
126L |
295L |
360L |
540L |
960L |
||||
|
CONSTRUCTION CASE |
SUS 304 (MIRROR SHINING IMAGE AVAILABLE) |
|||||||||
|
CONSTRUCTION TANK |
SUS 304 / 316L |
|||||||||
|
ULTRASONIC POWER(MAX.) |
1500W |
1800W |
3000W |
3600W |
5400W |
7200W |
||||
|
ULTRASONIC FREQUENCY |
28kHz/40kHz/68kHz/80kHz/120kHz |
|||||||||
|
MAX. HEATING TEMP. |
20~80C ADJUSTABLE |
|||||||||
|
HEATING POWER |
3KW |
4.5KW |
6KW |
9KW |
12KW |
24KW |
||||
|
TIMER |
0~30min adjustable |
|||||||||
|
DRAIN |
¾" VALVE |
|||||||||
|
LID & BASKET |
TAKE-OFF / STRUT LID; SUS 304 |
|||||||||
|
CLEANING TANK’S POWER REQUIREMENT |
AC220V/380V/415V/440V. 3 |
|||||||||
|
GENERATOR’S POWER REQUIREMENT |
AC110V/ 220V / 240V, 1 |
|||||||||
|
GENERATOR |
WITH SWEEP MODE AND REMOTE CONTROL |
|||||||||
|
FEATURES |
MULTI-DIRECTION CASTORS WITH BRAKE; 1 YEAR WARRANTY |
|||||||||
|
Optional |
FILTRATION SYSTEM (PUMP, SUS FILTER, OIL CATCH CAN) |
|||||||||
FAQ:
Q: What’s advantage of Skymen ultrasonic cleaner?
A: Skymen ultrasonic cleaner is the best way to have thorough cleaning without damaging objects. It helps to
remove stubborn dirt and dust from watch, eyeglasses, jewelry, etc, make them look new once again.
It’s very safe and easy to operate, proves to be a best helping hand for you at home.
Q: How often should I change the cleaning fluid in my tank?
A: Changed whenever it becomes visibly too contaminated, or when the cleaning process is not as effective.
Q: Why do I need to use a basket?
A: Basket would help to load objects together, and get better cleaning effect.
Q: Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.
No damage to your daily objects.
Q: What about the warranty?
A: 1 Year warranty for Skymen ultrasonic cleaner.
If any technical problem during warranty time, replacement parts will be sent free of charge. And technical
support is also available after 1 year.
