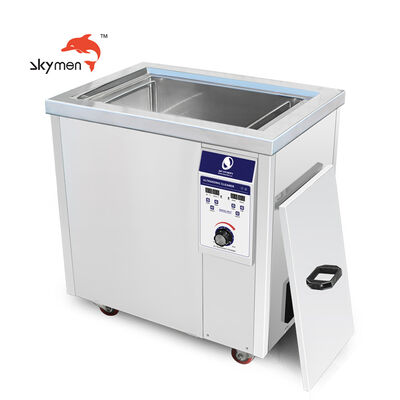

38L Ultrasonic Cleaning Machine SUS304 for Removing Oxide Coating
Skymen Single Tank Industrial Ultrasonic Cleaner JP-120ST

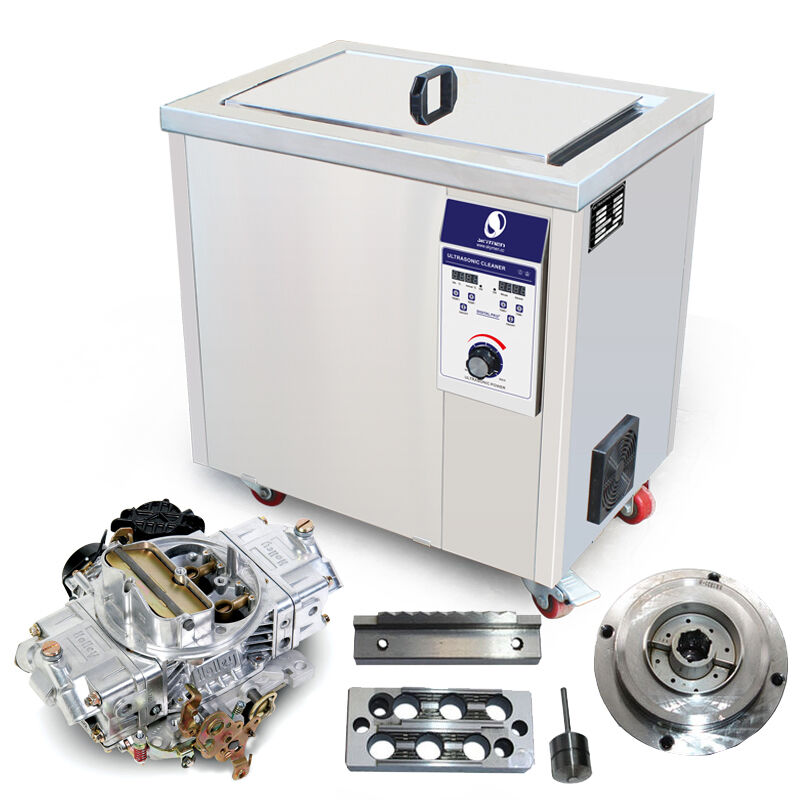

This 40L ultrasonic cleaning machine with 1500W heater is designed for removing oxide coatings and other contaminants from industrial workpieces. The equipment utilizes ultrasonic technology to clean parts effectively, causing particles, oil stains, and other attachments to fall off or dissolve through mechanical vibration.
Please choose the size that fits your needs, or contact us for professional suggestions.
Technical Specifications
| Model |
JP-120ST |
JP-180ST |
JP-240ST |
JP-300ST |
JP-301ST |
| Capacity (L) |
38 |
53 |
77 |
99 |
96 |
| Tank Size (MM) |
500×300×250 |
500×350×300 |
550×400×350 |
550×450×400 |
800×300×400 |
| Packing Size (MM) |
735×455×695 |
735×500×695 |
780×595×765 |
820×675×830 |
1050×500×765 |
| Frequency (KHz) |
28/40 |
| Ultrasonic Power (W) |
0-600 |
0-900 |
0-1200 |
0-1500 |
0-1500 |
| Heating Power (W) |
1500 |
1500 |
3000 |
4500 |
4500 |
| Timer |
1-99min |
| Heater Temperature (°C) |
20-95 |
| Material |
SUS304 |
Features: Power adjustable, digital control panel, easy operation, with castor and brake for easy mobility.
Key Features
- Stainless steel tank with excellent wear resistance and long working life, includes drainage system
- Generous 38-liter tank capacity
- Includes stainless steel basket for convenient part handling
- Compatible with tap water, industrial alcohol, and solvent cleaners for higher cleaning requirements
- Industrial control chip microcontroller with flexible circuit boards for secure and stable operation
- Equipped with drainage, basket, lid, and multi-directional castors
- High-quality Korean technique transducers
- PCB board independently researched, developed, and produced by Skymen
- Suitable for cleaning cast iron, steel, stainless steel, brass, bronze, and various metals
Packing Details
| Tank Size |
500×350×300mm (L×W×H) |
| Unit Size |
670×480×700mm (L×W×H) |
| Package Size |
790×570×870mm (wooden case) |
| Net Weight / Gross Weight |
51KG / 72KG |
Applications
Electronic factories, utensils, hardware, machinery, communication equipment, biological instruments, medical instruments, glasses, optical components, textiles, auto parts, ships, aviation, mining areas, and commercial cleaning applications.
Warranty
1-year warranty for Skymen ultrasonic cleaner. During warranty period, replacement parts are provided free of charge. Technical support available after warranty period.
Cleaning Effect Demonstration
Frequently Asked Questions
What frequency is better for my parts?
Frequency selection depends on the pollutants in your objects. 28kHz frequency provides stronger cleaning action, ideal for automotive parts, motors, and vessel parts (removing oils, grease, pastes). 40kHz is better for PCB boards, electronic parts, and higher precision goods. Higher precision typically requires higher frequency.
Can ultrasonic cleaning damage parts?
Despite the powerful effect of thousands of implosions per second, the cleaning process is safe and will not damage your daily objects or components.
What cleaning solution should I use?
Various formulas are designed for specific applications. Proper selection is crucial for optimal cleaning performance and to prevent unwanted reactions with your workpiece.
Is rinsing required after cleaning cycles?
Rinsing is recommended to remove any chemical residue that could be harmful to the part. You can rinse directly in your ultrasonic cleaner, in a clean water bath, or using a separate sink with tap, distilled, or deionized water.
About Skymen Cleaning Equipment
Skymen Cleaning Equipment Shenzhen Co., Ltd. has been engaged in the ultrasonic cleaner field for over 10 years. We specialize in ultrasonic cleaners of different capacities and are a renowned ultrasonic manufacturer with comprehensive R&D, production, and sales capabilities. We provide high-quality products and reliable after-sales services. In addition to standard ultrasonic cleaners, our engineers can design custom non-standard solutions to meet specific requirements.
