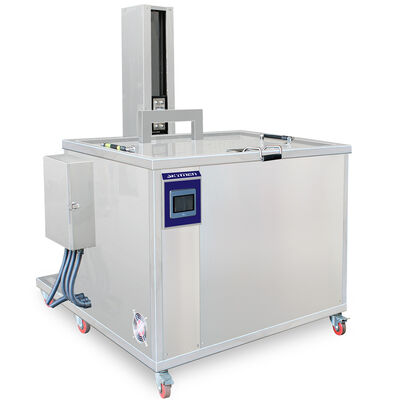

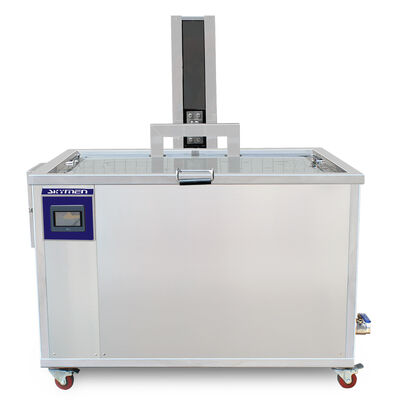

Professional Automated Ulrasonic Cleaner Washing Systems 140gal.

Ultrasonic Frequency: 40,000 Hz / 28,000 Hz (select above)
Tank Material: Stainless Steel
Power Supply: AC 480V / 380V / 220V 50 / 60Hz
Tank Capacity: 140 Gallons
Tank Inside Dimensions: 48"×40"×32" (L×W×H) - Customizable at no additional cost
Effective Depth: 18"
Power: 7200 Watts Ultrasonic, 27000 Watts immersion heater
Ultrasonic Generator: 4 × KG1800 generator with Sweep and power adjustment
Weight: 600 Lbs
Warranty: 1 Year

1. Ultrasonic welding machines convert low current frequency to high frequency AC using ultrasonic generators, then create mechanical vibration at the same frequency through ultrasonic transducers.

2. Mechanical vibration is transmitted to the welding joints via amplitude modulators. The vibration energy received by the welding joints transfers to the workpiece, where it converts to heat energy through friction, melting the plastic.

3. After vibration stops, maintained pressure allows the weld to solidify through molecular linking, creating a unified whole.

Industrial ultrasonic cleaning serves numerous sectors including: food processing, textile manufacturing, paper production, printing, petroleum processing, transportation, power generation, metalworking, machinery manufacturing, automotive production, instrumentation, electronics, telecommunications, home appliances, medical equipment, optical products, military equipment, aerospace, and atomic energy industries.

Ultrasonic cleaning is internationally recognized as the most efficient and effective cleaning method, achieving over 98% cleaning efficiency and the highest cleanliness levels. Traditional manual and organic solvent cleaning methods reach only 60-70% efficiency, while gas-phase and high-pressure water jet cleaning achieve less than 90% efficiency.
