Fast Removing Polypropylene Dust/ Oil/ Dirt Injection Mold Ultrasonic Bath

Fast Removing Polypropylene Dust/ Oil/ Dirt Injection Mold Ultrasonic Bath
Fast Removing Polypropylene Dust/ Oil/ Dirt Injection Mold Ultrasonic Bath Fast Removing Polypropylene Dust/ Oil/ Dirt Injection Mold Ultrasonic Bath Fast Removing Polypropylene Dust/ Oil/ Dirt Injection Mold Ultrasonic Bath Fast Removing Polypropylene Dust/ Oil/ Dirt Injection Mold Ultrasonic Bath

Large Image :  Fast Removing Polypropylene Dust/ Oil/ Dirt Injection Mold Ultrasonic Bath

Product Details:
Certification: CE, RoHS
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2000
Contact Now

Fast Removing Polypropylene Dust/ Oil/ Dirt Injection Mold Ultrasonic Bath

Description
Model NO.: JTS-1072 Automation: Manual
Cleaning Precision: Ultra-Precision Industrial Cleaning Control: Manual
Material: SUS304 Power Supply: Three Phase
Tank Size: 1000X600X600mm Wood Case Size: 1300X900X1100mm
Ultrasonic Power: 3600W Heating Power: 12kw
Timer: 1-99 Mins Adjustable Heater Temperature: 20~80c Adjustable
Frequency: 40,000Hz Tank Capacity: 360L With Roller
Gross Weight: 280kg
Highlight:

polypropylene ultrasonic cleaning bath

,

industrial ultrasonic dirt remover

,

oil removal ultrasonic injection mold cleaner

Fast Removing Polypropylene Dust/Oil/Dirt Injection Mold Ultrasonic Bath
This specialized injection mold ultrasonic bath efficiently removes polypropylene dust, oil, and dirt from plastic molds, significantly reducing cleaning time and labor requirements.
How Ultrasonic Cleaning Works
Ultrasonic energy generates controlled, high-magnitude pressure fluctuations in liquids that produce consistent, high-level cleanliness in minimal time. Unlike conventional methods, ultrasonic cleaning penetrates minute crevices that other techniques cannot reach.
Injection Mold Cleaning Procedure
  • Fill the tank with appropriate chemistry and activate heating
  • Ensure the tool model doesn't trap air and all surfaces are wetted
  • Activate ultrasonic energy by turning the system on
  • Remove cleaned tool model when cycle ends and ensure complete drainage
  • Thoroughly rinse all surfaces with clean water
  • Dry tool model by evaporation, air-drying, or forced hot air
Plastic Mold Cleaning Process
Recommended precision cleaning process using Skymen Model JP-720ST ultrasonic cleaning unit:
Process Stage Ultrasonic Frequency Handling Temperature (°C) Time (minutes)
Wash 40KHz Basket 60 5
Rinse N/A Basket Warm N/A
Dry N/A Basket Ambient Until dry
Technical Specifications
Model JP-720ST (digital, power adjustable)
Tank Size 1000×600×600mm
Wood Case Packing 1300×900×1100mm
Ultrasonic Power 1440W~3600W
Heating Power 12KW
Timer 1~99min adjustable
Heater 20~80°C adjustable
Frequency 40,000Hz
Tank Capacity 360L With Roller
Gross Weight 280kg
Power Adjustable 40%-100%

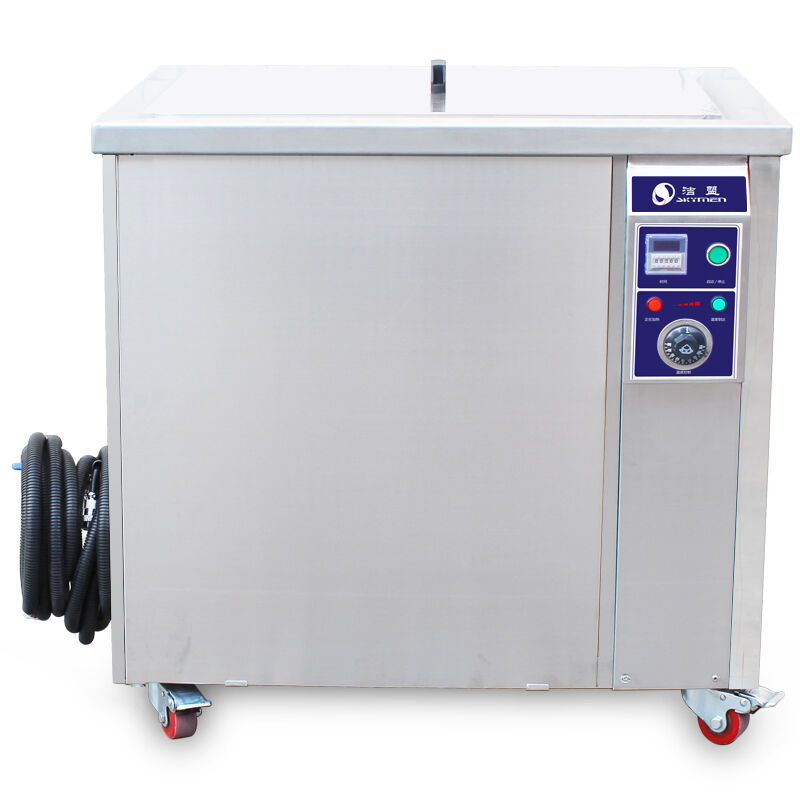

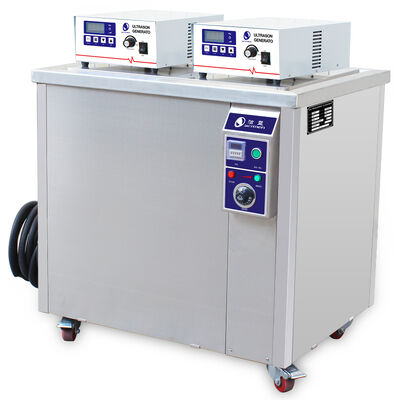

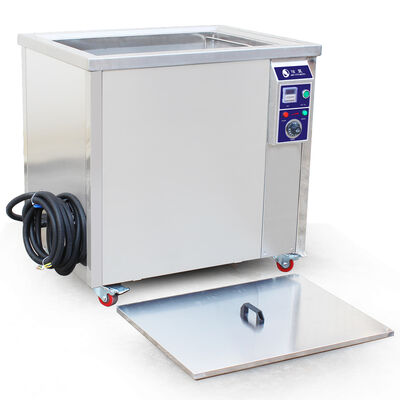

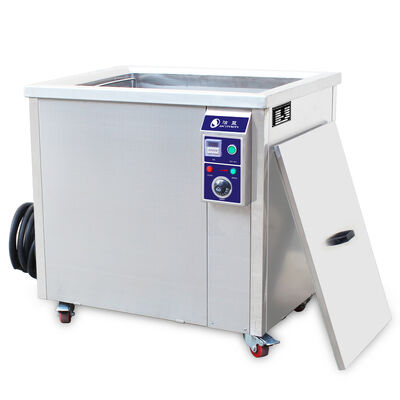

Product Images
Fast Removing Polypropylene Dust/ Oil/ Dirt Injection Mold Ultrasonic Bath 0 Fast Removing Polypropylene Dust/ Oil/ Dirt Injection Mold Ultrasonic Bath 1 Fast Removing Polypropylene Dust/ Oil/ Dirt Injection Mold Ultrasonic Bath 2 Fast Removing Polypropylene Dust/ Oil/ Dirt Injection Mold Ultrasonic Bath 3
Custom Solutions Available
If the standard tank size doesn't suit your plastic mold requirements, we offer larger ultrasonic cleaners and can design and produce specialized ultrasonic cleaning machines with custom functions.
Company Advantages
With 10 years of industry experience, Skymen supplies ultrasonic cleaning machines to distributors worldwide. We welcome partnerships for mutually beneficial cooperation.
Certifications & Approvals
Our products meet international standards with certifications including ISO, High Tech Company, CE, RoHS, FCC, and National Medical Instrument Approval.
Fast Removing Polypropylene Dust/ Oil/ Dirt Injection Mold Ultrasonic Bath 4 Fast Removing Polypropylene Dust/ Oil/ Dirt Injection Mold Ultrasonic Bath 5
