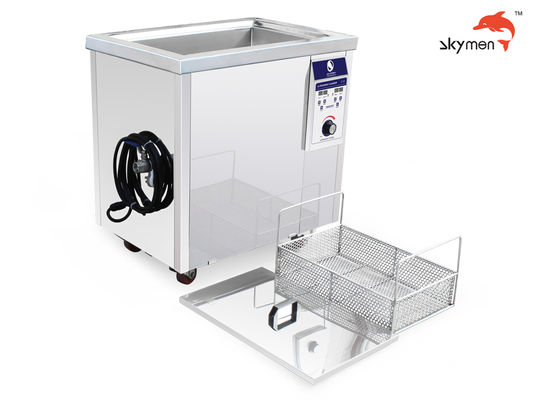

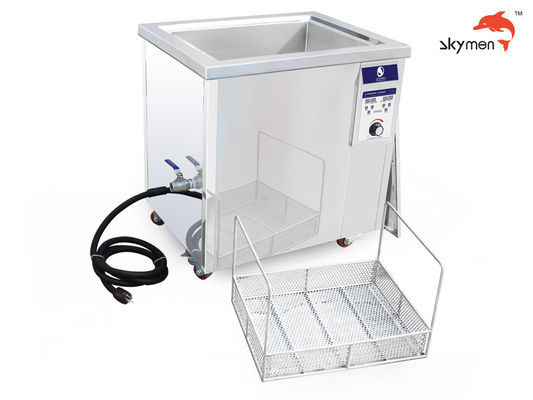

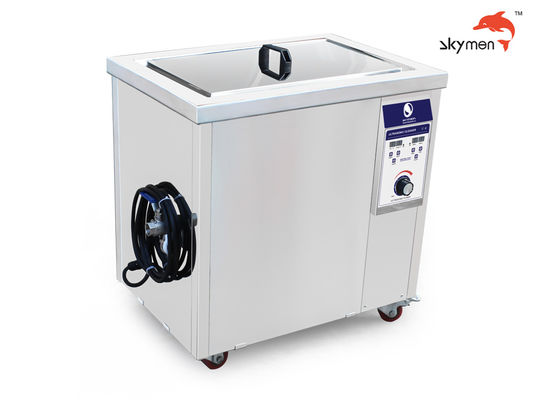

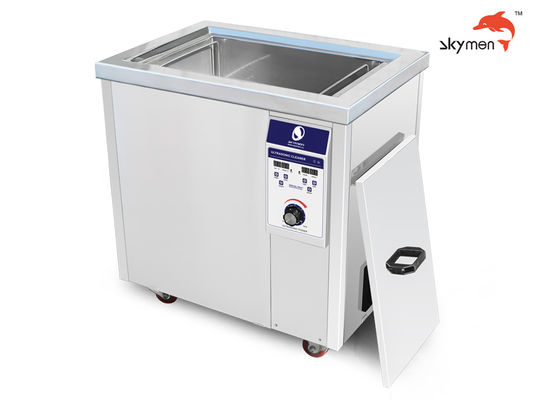

77L Tank Capacity Stainless Steel SUS304 Industrial Ultrasonic Cleaner with 40,000 Hz Ultrasonic Frequency

Large Image : 77L Tank Capacity Stainless Steel SUS304 Industrial Ultrasonic Cleaner with 40,000 Hz Ultrasonic Frequency

Product Details:

Certification:	CE, RoHS, ["Ce, Ce, RoHS, RoHS", "Ce, RoHS"]
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	1000

Contact Now

77L Tank Capacity Stainless Steel SUS304 Industrial Ultrasonic Cleaner with 40,000 Hz Ultrasonic Frequency

Description

Model NO.:	JP-240ST	Ultrasonic Frequency:	40,000 Hz
Material:	Stainless Steel SUS304	Tank Capacity:	77L
Tank Size:	550X400X350mm (L X W X H)	Timer:	1-30minutes, Digital Timer
Power Supply:	AC 100 ~ 120V, 50 / 60Hz, AC 220 ~ 240V, 50 / 60Hz	Ultrasonic Power:	1200W
Heating Power:	3000W, Digital Heating	Unit Size:	780595765 Mm (L X W X H)
Heater Temperature:	0 ~80ºC Adjustable	Transducer Quantity:	24pcs
Net Weight:	80 Kg	Gross Weight:	85 Kg
Paking Size:	840655885 Mm (L X W X H)
Highlight:	77L Tank Capacity Industrial Ultrasonic Cleaner , Stainless Steel SUS304 Ultrasonic Cleaning Machine , 40 , 000 Hz Ultrasonic Frequency Ultrasonic Cleaner

Turbochargers Ultrasonic Cleaning Machine JP-240ST Skymen Ultrasonic Cleaner

Product Specification

Ultrasonic frequency: 28/40kHz
Tank material: stainless steel SUS304 stamping slot
Tank capacity: 77 L
Timer: 1~99 min adjustable
Heater: 0 ~80ºC adjustable
Power: AC 100 ~ 120 V, 60 Hz/AC 200 ~ 240 V, 50 Hz
Ultrasonic power: 1200W (24pcs transducers)
Heating power: 3000 W
Tank size: 550×400×350 mm (L×W×H)
Unit size: 780×595×765 mm (L×W×H)
Packing size: 840×655×885 mm (L×W×H)
Net weight: 80 kg
Gross weight: 85 kg

Certifications

CE & RoHS & ISO9001 & REACH

Features

Adjustable ultrasonic power
Original BLT type transducer
SUS 304/316L stainless steel tank
Adaptable for continuous operation
Adjustable thermo controller
With separate control ultrasonic electronic generator
Sweep mode control available
Boost mode & oil skimmer upon clients requirement
Pressure pump and filter system are optional

Tank size is custom made.

MOQ: 1PCS

1 year warranty

Working Principle

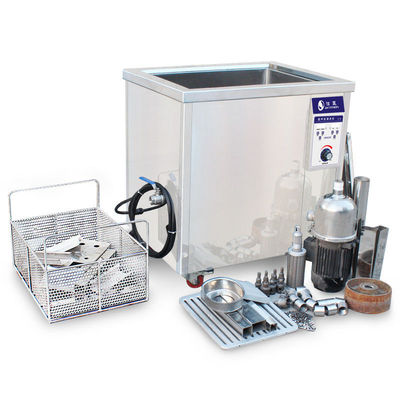

Wide Application

This ultrasonic cleaner is suitable for:

• Diesel injection pumps

• Metal parts prior to powder coating

• Electrical components

• Printer heads and toner cartridges

• Mobile phones

• Vehicle differentials

• Surgical equipment

• Turbochargers

• Heat exchangers for combination boilers

• And many other industrial and precision cleaning applications

Similar Models with Different Volume

Model	Tank size (L×W×H mm)	Volume (L)	Ultrasonic Power (W)	Heating Power (W)	Transducer (pcs)
JP-120ST	500×300×250	38	600	1500	12
JP-180ST	500×350×300	53	900	1500	18
JP-240ST	550×400×350	77	1200	3000	24
JP-300ST	550×450×400	99	1500	4500	30
JP-301ST	800×300×400	96	1500	4500	30
JP-360ST	600×500×450	135	1800	4500	36
JP-480ST	700×500×500	175	2400	6000	48
JP-600ST	800×600×550	246	3000	6000	60
JP-720ST	1000×600×600	360	3600	9000	72
JP-1108ST	1000×900×600	540	5400	18000	108
JP-1144ST	1200×1000×800	960	7200	27000	144
