Product Details:
|
| Model: | JP-0900P | Cleaning Method: | High Pressure Spraying |
|---|---|---|---|
| Basket Diameter: | 900mm | Work Space Height: | 500mm |
| Basket Load-bearing: | 250KG(can Be Customized) | Rotating Speed: | 10~50R/MIN |
| Water Pump Power: | 1.5KW | Sub-Tank Capacity: | 130L |
| Basket Rotation Drive: | Motor/0.15kw | Heating Power: | 6KW |
| High Light: | Auto Parts Spray Cleaning Machine,High Pressure Spray Cleaning Machine,Engine Block Spraying Cleaning Machine |
||

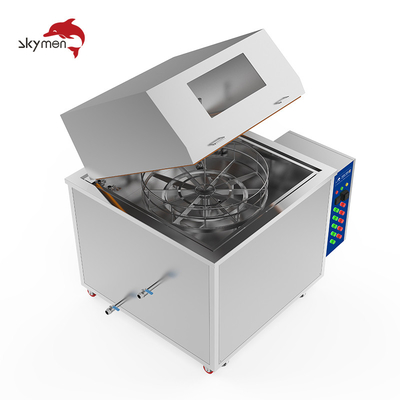

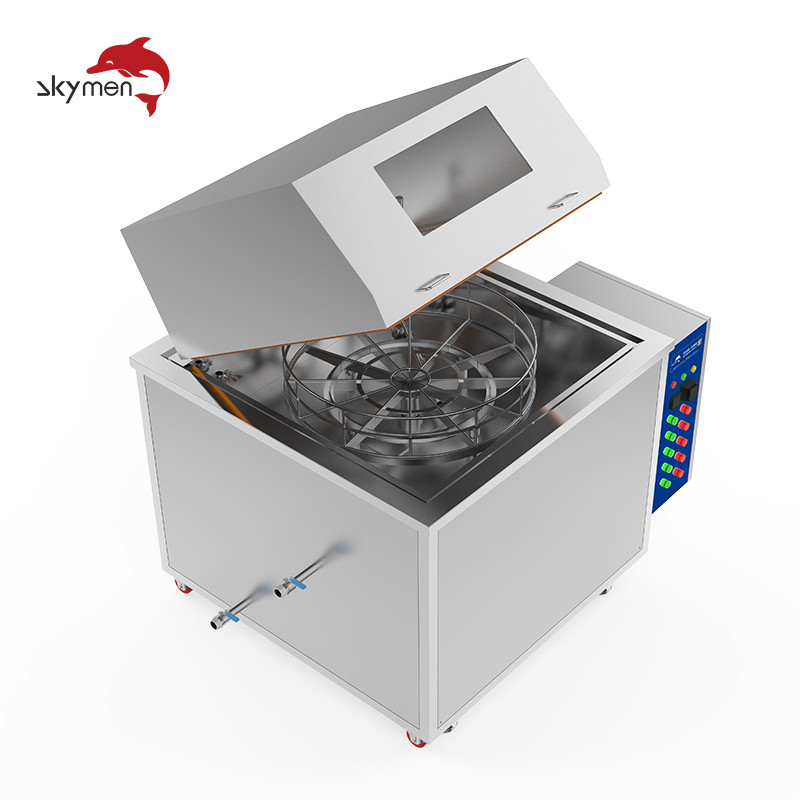

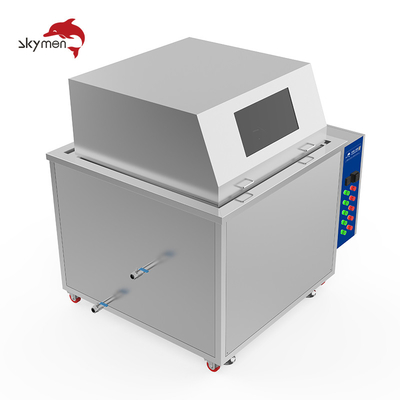

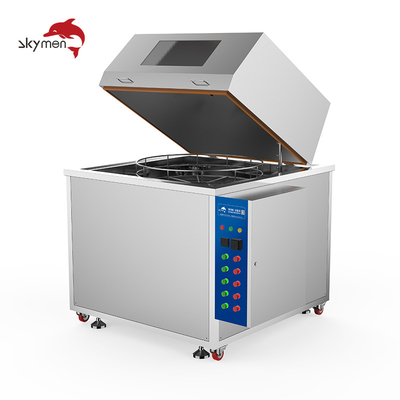

| Product Name: | Spraying Cleaning Machine with Rotary Basket |
|---|---|
| Model: | JP-0900P |
| Cleaning Method: | High Pressure Spraying |
| Basket | 900mm |
| Work Space Height: | 500mm |
| Basket Load-bearing: | 350KG (can Be Customized) |
| Water Pump Power: | 1.5KW |
| Spray Pressure: | 2.5-3 Bar Adjustable |
| Basket Rotation Drive: | Motor/0.37KW |
| Sub-Tank Capacity: | 130L |
| Rotating Speed: | 10~50R/MIN adjustable |
| Spraying Cleaning Machine With Rotating Basket | ||||||||||
| Model | Basket Diameter | Work Space Height | Cavity Material | Basket Load-bearing |
Basket Rotation Drive |
Rotating Speed (R/MIN) |
Sub-Tank Capacity | Heating Power | Water Pump Power | Spray Pressure (Bar) |
| JP-0500ZP | 500mm | 300mm | SUS304/1.5MM | 50kg | Spray drives rotation | - | 40L | 3KW | 0.55KW | 2.5 |
| JP-0600ZP | 600mm | 350mm | SUS304/1.5MM | 50kg | Spray drives rotation | - | 65L | 3KW | 0.55KW | 2.5 |
| JP-0500P | 500mm | 300mm | SUS304/1.5MM | 80kg | Motor/0.15kw | 10~50 | 50L | 3KW | 0.55KW | 2.5 |
| JP-0600P | 600mm | 350mm | SUS304/1.5MM | 80kg | Motor/0.15kw | 10~50 | 70L | 3KW | 0.55KW | 2.5～3 |
| JP-0700P | 700mm | 350mm | SUS304/1.5MM | 80kg | Motor/0.15kw | 10~50 | 85L | 3KW | 0.75KW | 2.5～3 |
| JP-0800P | 800mm | 500mm | SUS304/2.0MM | 250kg | Motor/0.15kw | 10~50 | 100L | 6KW | 0.75KW | 2.5～3 |
| JP-0900P | 900mm | 500mm | SUS304/2.0MM | 250kg | Motor/0.15kw | 10~50 | 130L | 6KW | 1.5KW | 2.5～3 |
| JP-1000P | 1000mm | 720mm | SUS304/2.0MM | 250kg | Motor/0.37kw | 10~50 | 145L | 6KW | 2.2KW | 3～5 |
| JP-1200P | 1200mm | 730mm | SUS304/2.0MM | 350kg | Motor/0.37kw | 10~50 | 160L | 9KW | 2.2KW | 3～5 |
| JP-1500P | 1500mm | 850mm | SUS304/2.0MM | 400kg | Motor/0.55kw | 10~50 | 200L | 9KW | 3KW | 3～5 |
| JP-2000P | 2000mm | 1000mm | SUS304/2.0MM | 600kg | Motor/0.75kw | 10~50 | 450L | 12KW | 3KW | 3～5 |
Highly equipped with automatic switch cover and PLC control
Note: Customization of high-pressure rotary spray cleaning machines of different sizes is supported. Please consult customer service for details.
Advantages of the Rotary Basket High Pressure Water Spraying Cleaning Machine
One-touch operation, adjustable spray pressure
720° cleaning without dead ends
Large cleaning batches, saving labor
Liquid real-time circulation filtration system to improve liquid utilization efficiency
Equipment has low energy consumption and low noise
The high-pressure spray cleaning machine can clean workpieces in batches with high efficiency and uniform effect.
Strong controllability and low cost
Operating procedures of Rotary Basket High Pressure Water Spraying Cleaning Machine
Open the upper cover and place the workpiece on the turntable;
Set spray cleaning time;
Turn on the device start button, and the device will enter the automatic cleaning state. After cleaning, the device will automatically
Stop moving;
Open the upper cover and manually unload the material
The Spraying Cleaning Machine is suitable for a variety of industrial cleaning applications, including but not limited to
- Cylinder block cleaning machine for automotive and heavy-duty engines
- Cleaning of metal parts in manufacturing plants
- Degreasing and cleaning of industrial equipment and machinery
- Removal of contaminants from metal surfaces in machining processes
- Cleaning of engine components in automotive and aerospace industries
- Surface preparation before painting or coating
- Cleaning of parts in the food, pharmaceutical, and chemical industries
- And many more industrial cleaning applications
