Product Details:
|
| Ultrasonic Power: | 600W | Warranty: | 1 Year |
|---|---|---|---|
| Frequency: | 28KHz/40KHz | Material: | SUS304 / 316L |
| Model: | JTM-1012 | Certificate: | CE |
| Highlight: | submersible ultrasonic transducer,ultrasonic extraction equipment |
||

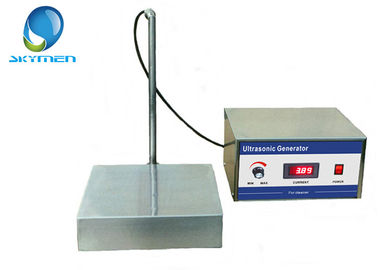

Industrial Flexible Submersible Ultrasonic Transducer & Generator
Production description:
Transducer pack size is custom made
CE approved
Engineer is available
1 year warranty---free parts can be sent if any quality problem
Lead time: 8~15 days
Features:
Original BLT type transducer
SUS stainless steel housing Hard-Cr plating Treatment ( 20 + microns )
Adaptable for continuous operation
Adjustable ultrasonic power
With separate control ultrasonic electronic generator
Custom made size is available
Transducer no./transducer box: range[6pcs~40pcs per box]
Ultrasonic power: range[300W~2000W]
Ultrasonic frequency: 28KHZ/40KHz
Transducer pack Specifications:
Model (JTM models) | JTM-1006 | JTM-1012 | JTM-1018 | JTM-1024 | JTM-1030 | JTM-1036 | |||
Ultrasonic transducer box size (mm) | L | 305 | 355 | 406 | 500 | 550 | 500 | ||
W | 250 | 305 | 305 | 355 | 406 | 460 | |||
H | 100 | 100 | 100 | 100 | 100 | 100 | |||
Housing material | SUS304/SUS316L | ||||||||
Surface finishing | Hard-Cr plating treatment (20+microns) | ||||||||
Ultrasonic frequency | 28KHz / 40KHz | ||||||||
Ultrasonic transducers | 6pcs | 12pcs | 18pcs | 24pcs | 30pcs | 36pcs | |||
Ultrasonic power | 300W | 600W | 900W | 1200W | 1500W | 1800W | |||
Electronic generator | KG300 | KG600 | KG900 | KG1200 | KG1500 | KG1800 | |||
Ultrasonic generator work separately control transducers | |||||||||
power suppy | AC 110V/220V or 220/240V, 1,13AMP | ||||||||
*Custom made:68KHz/80KHz/120KHz and size are all available | |||||||||
Immersible ultrasonic transducer units can be installed in the tank by three ways:
1. side mounted
2. bottom mounted
3. top mounted
Skymen will design proper mounted way for you according to your requirements and existing tank specifications.
Packing & delivery details:
Packing , loading, delivery time | |
Packing unit | 1set/wooden case |
Packing method | Export wooden case |
Loading port | Shenzhen |
Delivery time | About 15 working days |
Minimum Order Quantity | 1set |
Transport method | By express company / air / sea |
