7 Meters Tank Industrial Ultrasonic Cleaner For Cleaning Heat Exchanger
Technical characteristics 7 meter tank ultrasonic cleaner
Dimensions: 6.5 m tank
Usable dimensions 6.1 x 1.9 m (lxw).
Material: all-stainless steel 304.
Total ultrasonic energy: max. 96KW.
Ultrasonic mode:3 cleaning stages, at 100%, 80% and 60%, in this mode the transducer power will randomly be switched for approx. 20% or 40% of the transducers,in order to realize a quicker cleaning process. in this mode cleaning nonferrous metals, like aluminium (attention to the kind of applied detergent), copper and brass is also possible.
Details about heat exchanger ultrasonic cleaner
| Model No. |
JTS-1252 |
| Image |
 |
| Ultrasonic model |
Ultrasonic Frequency |
28 kHz |
| Material |
Stainless Steel SUS304 |
| Tank Capacity |
29348 L
|
| Timer |
1~99 hours adjustable |
| Heater |
20°C to 95°C adjustable |
| Power Supply |
240V/50Hz, 3 phase power
|
| Ultrasonic Power |
96KW |
| Heating Power |
60KW |
| Basket& cover |
Standard equiped |
| Packing |
Packing size |
Designed for transport in a 40 ft container
|
| Warranty |
1 year |
| Application. |
Cleaning parts, components and heat exchangers with state-of-the-art
ultrasonic cavitation power.
|
| Certificates |
CE/ROHS/FCC/PSE/ISO9001 |

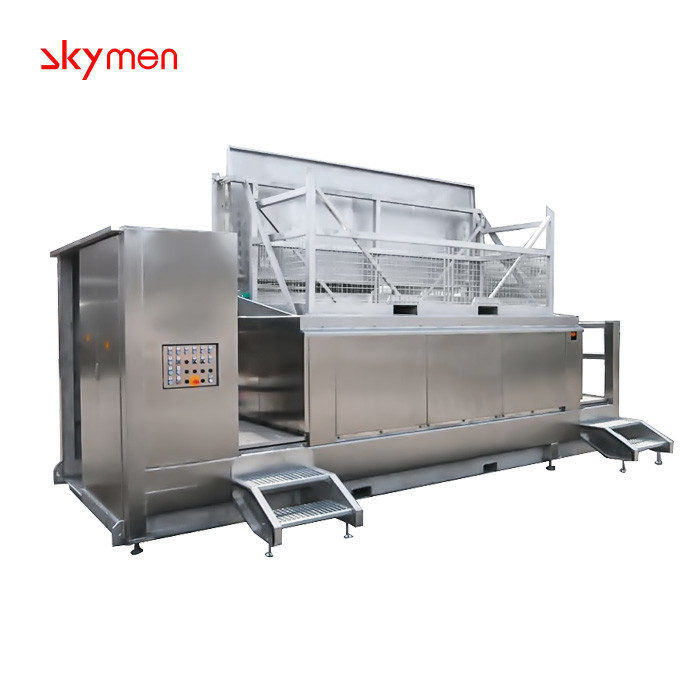

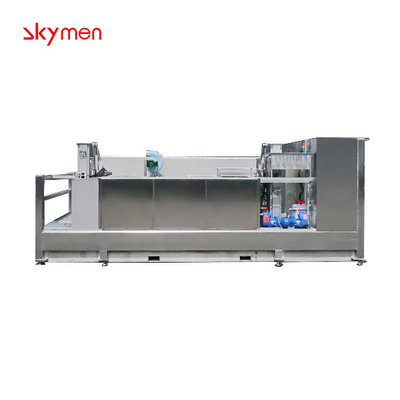

Pictures of heat exchanger ultrasonic cleaner:
Cleaning effects of heat exchanger ultrasonic cleaner:
FAQ:
What autoparts can be cleaned?
cylinder heads, cylinder blocks, crankshafts,
camshafts, carburetors, con-rods, pistons, turbocharger components,
diesel injectors, DPF filters, brake system components,
gearbox and transmission components, heat exchanger, radiators etc.
How does the ultrasonic cleaner play a role in the auto parts industry?
In the automotive industry, ultrasonic cleaners use industrial strength cleaning action to:
Clean carbon deposits from carburetors and engine parts
Removes stubborn oil, grease, lubricants, paint, rust, and dirt
Safely clean any aluminum parts
Penetrate and thoroughly clean small holes, small apertures, and crevices
Clean sensitive parts including wiring and plastic without damage
How about after sales services?
12 months warranty for SKYMEN ultrasonic cleaner. Any technical problem during warranty time, free replacement parts will be sent to your door. And technical support is also available after 1 year.
