Product Details:
|
| Ultrasonic Power: | 0-1800W | Ultrasonic Frequency: | 28/40Khz |
|---|---|---|---|
| Horn Size: | 550*450*100mm | Generator: | Digital, IC Program, Continuouse |
| Functions: | Cleaning | Application: | Put In Welding Tank |
| High Light: | Cr Coating Submersible Ultrasonic transducer,Submersible Ultrasonic transducer 1800W,Cr Coating Submersible Transducer |
||

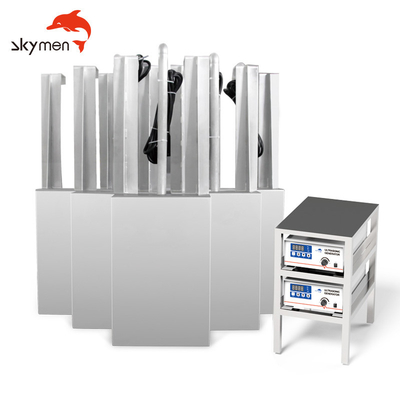

Submersible Ultrasonic transducer 1800W with Generator SUS316 With Cr Coating
Advantage of submersible ultrasonic transducer :
| Model No. | JP-1036I | |
| Ultrasonic model of submersible Ultrasonic transducer | Ultrasonic Frequency | 40 kHz |
| Material | Stainless Steel SUS304 | |
| Timer | 1~99min adjustable | |
| Heater | N/A | |
| Degas | No | |
| Semiwave | No | |
| Power Supply | AC 100 ~ 120V, 50 / 60Hz | |
| AC 220 ~ 240V, 50 / 60 Hz | ||
| Ultrasonic Power | 0-1800W | |
| Transducer | 36 pcs | |
| Basket& cover | No | |
| Tank Size | 550*450*100mm ( L x W x H ) | |
| Max Power | 1800W | |
| Warranty | Warranty of Submersible ultrasonic transducer | 1 year |
| Features of Submersible Ultrasonic transducer | 1. Using high-quality high-performance transducers and unique ultrasonic generators, strong cleaning power and stable performance. 2. Using high-quality stainless steel plate, acid and alkali resistance, beautiful appearance. 3. Split structure design, easy to install and use, easy to maintain, suitable for a variety of cleaning requirements. 4. Integral bending forming, straight seam double-sided protective welding, small deformation and thorough leakage prevention. 5. The shape, power lead-out method, and fixed position can be designed and customized according to needs. |
|
| Application of Submersible ultrasonic transducer | Manufacture line,Electronics,Aerospace and marine parts, Machinery,Plating and Painting,Food industry |
|
| Certificates | CE/ROHS/FCC/PSE/ISO2008 9001 | |
Features of Submersible ultrasonic transducer:
1. Split structure design, easy to install and use, easy to maintain, suitable for a variety of cleaning requirements.
2. The shape, power lead-out method, and fixed position can be designed and customized according to needs.
3. Using high-quality high-performance transducers and unique ultrasonic generators, strong cleaning power and stable performance.
4. Integral bending forming, straight seam double-sided protective welding, small deformation and thorough leakage prevention.
5. Using high-quality stainless steel plate, acid and alkali resistance, beautiful appearance.
Ways of installing submersible ultrasonic transducer box:

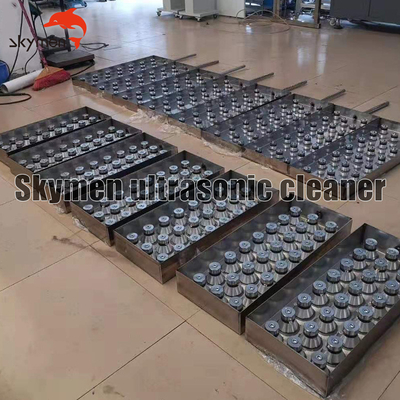

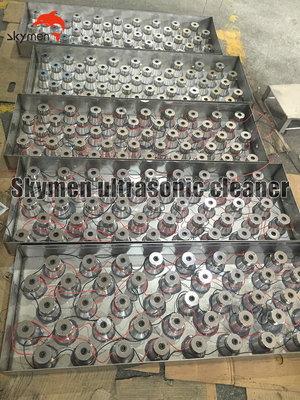

Different Sizes of submersible ultrasonic transducer:
| Model | Plate Size | Transducers | Ultrasonic Power | Generator | Frequency |
| (L*W*H)mm | (pcs) | (W) | (set) | (KHz) | |
| JP-1006I | 305*205*100 | 6 | 300 | 1 | 28/40 |
| JP-1012I | 355*305*100 | 12 | 600 | 1 | 28/40 |
| JP-1018I | 340*280*100 | 18 | 900 | 1 | 28/40 |
| JP-1024I | 430*280*100 | 24 | 1200 | 1 | 28/40 |
| JP-1030I | 460*370*100 | 30 | 1500 | 1 | 28/40 |
| JP-1036I | 550*450*100 | 36 | 1800 | 1 | 28/40 |
| JP-1048I | 600*450*100 | 48 | 2400 | 1 | 28/40 |
Application of submersible ultrasonic transducer:
Immersible ultrasonic transducers are sealed stainless steel enclosures, to make a exist tank become a ultrasonic tank.
The number and placement of the submersible ultrasonic cleaning transducers is primarily determined by the volume of liquid in the tank, geometric layout of the existing tank, and load size of the parts. Depending on the size of the tank and parts cleaning application, the Watts of ultrasonic power per gallon or Watts/gal can vary from 30 to 100+ W/gal.
| Industry | Cleaning Objects |
| Manufacture line | Drop in ultrasonics addition to existing manufacturing cleaning process lines (aqueous cleaning lines, passivation, plating lines, or other part finishing processes which require from microscopic surface scrubbing agitation) |
| Electronics | PCB board, electronic parts, TV parts, computer parts, |
| Aerospace and marine parts | Turbine blades, Marine Engine components, Overhaul parts, Pneumatics, |
| Machinery | Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools; Valve bodies and manifolds |
| Plating and Painting | polishing parts, SUS cutter, tableware, plating |
| Food industry | Oven tray, boiler, bottles, bottle cap, Hood Filters |
| Optical& watch tool | optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band, watch cover, watch hand |
| Jewelry | Jewelry, diamond, gold, silver products |
| Dental and Medical | Medical device stainless steel parts cleaning |
