Product Details:
|
Material: | SUS 304 | Tank Capacity: | 960L |
---|---|---|---|
Tank Size: | 1200X1000X800 Mm | Ultrasonic Power: | 7200W |
Heating Power: | 27000W | Transducer: | 144pcs |
High Light: | Filter System Skymen Ultrasonic Cleaner,Big Tanks Skymen Ultrasonic Cleaner,960L Ultrasonic Cleaning machine |
Skymen Ultrasonic Cleaning Machine Big Tank With Filter System Cycle Washing
Function:
Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt.
Features:
Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.
Time is adjustable among 1 second to 500 hours by simple handle of large timer.
Additional special case for small parts cleaning and drainage for changing of cleaning solution.
Automatic stopwatch to manage working time and maintenance time.
Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.
Specificatoin:
Model | JP-1144G |
Ultrasonic power | 7200W (114pcs transducers) |
Frequency | 40KHz / 28KHz |
Housing material | SUS304 |
Tank material | SUS304 / 316 |
Heating power | 72000W |
Tank capacity | 960L |
Timer | Digital 1-99 min adjustable |
Heater | Room temperature~150℃ |
Voltage | AC 380V, 3phase 50Hz |
Tank size | 1200X1000X800mm |
Certificate | ISO9001:2008|CE & RoHS |
From 10 galles to 200 gallons ,size could be customized

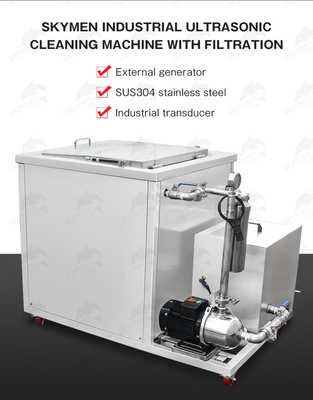

Images of this model:

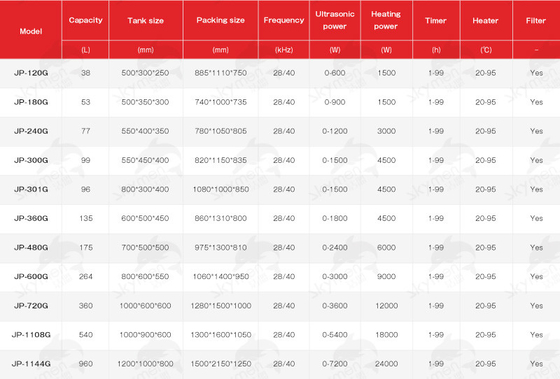

Similar models with different tank volume:
Model | Tank size | Volume | Ultrasonic Power |
Heating Power |
Transducer |
L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
JP-120G | 500X300X250 | 38L | 600W | 1500W | 12pcs |
JP-180G | 500X350X300 | 53L | 900W | 1500W | 18pcs |
JP-240G | 550X400X350 | 77L | 1200W | 3000W | 24pcs |
JP-300G | 550X450X400 | 99L | 1500W | 4500W | 30pcs |
JP-301G | 800X300X400 | 96L | 1500W | 4500W | 30pcs |
JP-360G | 600X500X450 | 135L | 1800W | 4500W | 36pcs |
JP-480G | 700X500X500 | 175L | 2400W | 6000W | 48pcs |
JP-600G | 800X600X550 | 246L | 3000W | 6000W | 60pcs |
JP-720G | 1000X600X600 | 360L | 3600W | 9000W | 72pcs |
JP-840G | 1500X700X400 | 420L | 4200W | 15000W | 84pcs |
JP-960G | 1200X500X800 | 480L | 4800W | 15000W | 96pcs |
JP-1108G | 1000X900X600 | 540L | 5400W | 18000W | 108pcs |
JP-1120G | 1000X800X800 | 640L | 6000W | 21000W | 120pcs |
JP-1132G | 1000X1000X800 | 800L | 6600W | 24000W | 132pcs |
JP-1144G | 1200X1000X800 | 960L | 7200W | 27000W | 144pcs |
JP-1216G | 1500X1000X1000 | 1500L | 10800W | 36000W | 216pcs |
How does Ultrasonic Cleaner work?
How Ultraosnic Cleaner Work?
Cavitation, the collapse of millions of tiny bubbles created by ultrasonic vibrations, releases high energy and enormous cleaning power.
This cleaningaction gently and thoroughly removes dirt, oil, and contaminants from every surface in contact with the cleaning fluid.
Because the liquid can penetrateinto very small crevices, ultrasonic cleaning can clean intricate items that cannot be cleaned by hand.
APPLICATION:
1.Car service: DPF,Flushing carburetors, injectors, injectors, fuel filter mesh cleaning (petrol), individual parts, assemblies, and entire blocks.
2. Medicine: Washing and polishing of optics, sterilization and cleaning of surgical instruments, vials, dental and
pharmaceutical industries; cleaner reusable, molds.
3. Engineering: Cleaning of parts, pipes, wires, etc. before finishing, machining parts and components to the preservation,
processing of parts after reopening, welding, grinding, polishing, cleaning strainers in the fuel and hydraulic systems,
deburring parts.
4. Instrumentation: Washing and polishing of optics, precision mechanics components, integrated circuits and printed circuit boards.
Good for commercial or industrial workpeice :
1. Can get much better cleaning result for oil-remove , carbon-remove and rust-remove ;
2. Skymen commercial or industrial ultrasonic models , which the inner tank more bigger and ultrasonic power more powerful with much better cleaning effect , can meet customers longer time lasting cleaning ;
3. More safety for end users with chemicals inside cleaning and no worry about affecting machine outer casing .
Package by polywooden case:
Before and after :
