Anilox Roller Industrial Ultrasonic Cleaning Machine Anilox Cleaner For Printing

Anilox Roller Industrial Ultrasonic Cleaning Machine Anilox Cleaner For Printing
Anilox Roller Industrial Ultrasonic Cleaning Machine Anilox Cleaner For Printing Anilox Roller Industrial Ultrasonic Cleaning Machine Anilox Cleaner For Printing Anilox Roller Industrial Ultrasonic Cleaning Machine Anilox Cleaner For Printing

Large Image :  Anilox Roller Industrial Ultrasonic Cleaning Machine Anilox Cleaner For Printing

Product Details:
Place of Origin: China
Brand Name: skymen/OEM
Certification: CE/FCC/RHoS/REACH
Model Number: JP-1144W
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: wooden case
Delivery Time: In Stock
Payment Terms: T/T, L/C, Paypal
Supply Ability: 5000 units per week

Anilox Roller Industrial Ultrasonic Cleaning Machine Anilox Cleaner For Printing

Description
Material: SUS 304/316 Tank Capacity: 750L
Tank Size: 1500X1000X500 Mm Frequency: 40KHz / 28KHz
Power Supply: AC 220V 3 Phase 50Hz / AC 380V, 3 Phase 50Hz Transducer: 144pcs
Model: JP-1144W External Generator: 3 Pcs
High Light:

750L Ultrasonic Cleaning Machine

,

Anilox Roller Ultrasonic Cleaning Machine

,

144pcs Transducer Industrial Ultrasonic Cleaning Machine

Industrial Professional Ultrasonic Anilox Roller Cleaning Machine Anilox Cleaner for Printing Factory



Function:

Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt.



Features:



Specailly for Aniox roller cleaning:

1. Middle holding wheel frame flexible adjustable
2. With Rotating Function, bearing: max 25kg
3. With 1 set of transmission device, main modules are support module, transmission module and power module.
4. In the support module, a set of support seats are installed on both sides of the tank, one of which can be moved, and the other set of support seats are fixed.
5. Install the transmission module on the fixed support base, install the rolling bearing, gear and chain made of nylon material.
6. A gear is installed on the motor in the power module, the gear drives the chain, and the chain acts on the nylon rolling bearing in the transmission module.



Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.

Time is adjustable among 1 second to 500 hours by simple handle of large timer.

Additional for small parts cleaning specially and drainage for changing of cleaning solution.

Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.



Specificatoin:

Model JP-1144w
Ultrasonic power 7200W (144pcs transducers)
Frequency 40KHz / 28KHz
Housing material SUS304
Tank material SUS304 / 316
Heating power 2400W
Tank capacity 750L
Timer Digital 1-99 min adjustable
Heater room temp~80℃
Voltage AC 220V, 3phase 50Hz
AC 380V, 3phase 50Hz
Tank size 1500X1000X500mm
Certificate ISO9001:2008|CE & RoHS



From 10 galles to 200 gallons ,size could be customized



Images of this model:

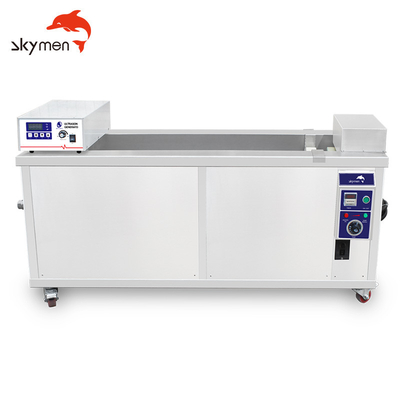

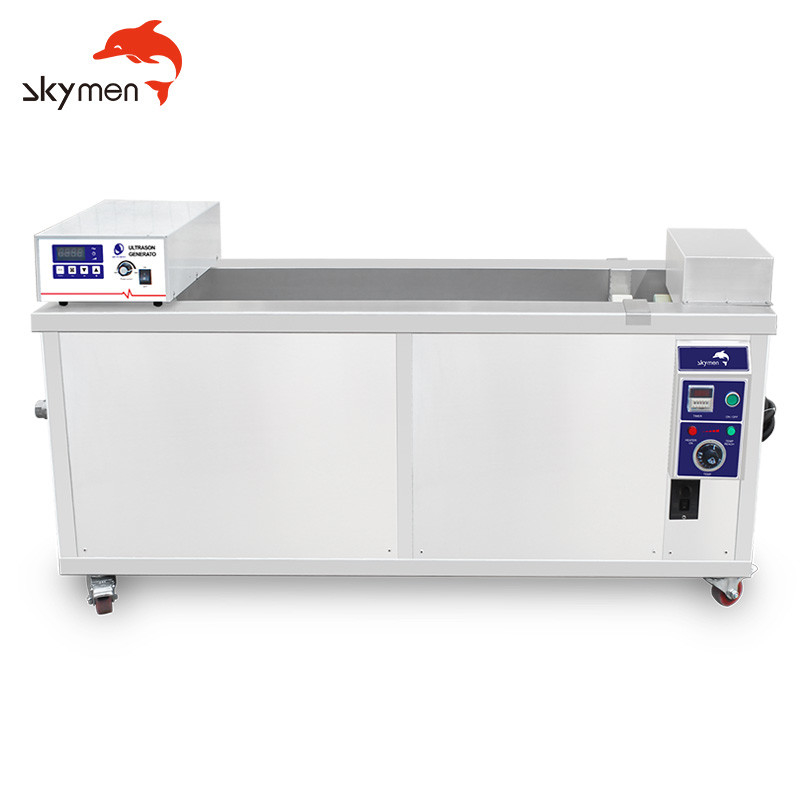

Anilox Roller Industrial Ultrasonic Cleaning Machine Anilox Cleaner For Printing 0

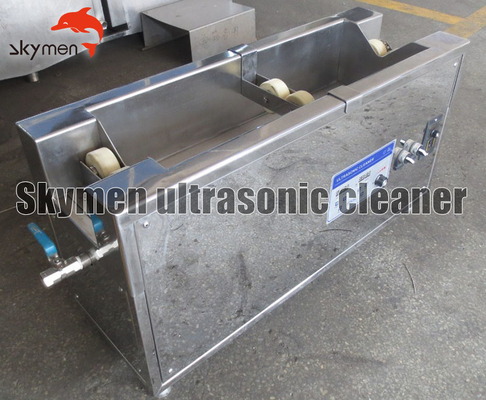

Anilox Roller Industrial Ultrasonic Cleaning Machine Anilox Cleaner For Printing 1



The whole set machine including:

1* cleaning machine

1* lid

1* basket



Similar models with different tank volume:

Model Tank size Volume Ultrasonic
Power
Heating
Power
Transducer
L*W*H (mm) (L) (W) (W) (pcs)
JP-120ST 500X300X250 38L 600W 1500W 12pcs
JP-180ST 500X350X300 53L 900W 1500W 18pcs
JP-240ST 550X400X350 77L 1200W 3000W 24pcs
JP-300ST 550X450X400 99L 1500W 4500W 30pcs
JP-301ST 800X300X400 96L 1500W 4500W 30pcs
JP-360ST 600X500X450 135L 1800W 4500W 36pcs
JP-480ST 700X500X500 175L 2400W 6000W 48pcs
JP-600ST 800X600X550 246L 3000W 6000W 60pcs
JP-720ST 1000X600X600 360L 3600W 9000W 72pcs
JP-1108ST 1000X900X600 540L 5400W 18000W 108pcs
JP-1144ST 1200X1000X800 960L 7200W 27000W 144pcs



FAQ



How about after sales services?

12 months warranty for SKYMEN ultrasonic cleaner. Any technical problem during warranty time, free replacement parts will be sent to your door. And technical support is also available after 1 year.



What are advantages of ultrasound over traditional cleaning methods?

1) .minimizes the use of manual labor

2) .makes cleaning and degreasing without the use of organic solvents

3) reaches every area of product and remove all types of dirt

4) .shorten processes such as extraction, dispersion, purification, and chemical reactions. 5).eliminates costly mechanical and chemical cleaning of heat exchangers



Will ultrasonic cleaning damage item’s parts?

Ultrasonic cleaning is considered as safe cleaning way for most parts; In some cases, it is necessary to observe carefully. The effect of thousands of implosions per second is very powerful, and the cleaning process is safe.

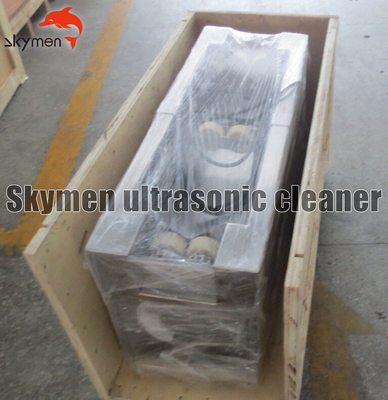

Package by polywooden case:

Anilox Roller Industrial Ultrasonic Cleaning Machine Anilox Cleaner For Printing 2



Before and after :

Anilox Roller Industrial Ultrasonic Cleaning Machine Anilox Cleaner For Printing 3
