|Features:||With Rotating System||Product Name:||Anilox Roller Cleaning Equipment|
|Application:||Various Size Anilox Roller Cleaning||Capacity:||126liter|
|Ultrasonic Frequency:||28/40kHz||Tank Material:||SUS304|
400L Anilox Roller Cleaning Equipment,
28kHz Anilox Roller Cleaning Equipment,
SUS304 Tank Anilox Roller Cleaner
Strong Power Fast Cleaning Anilox Roller Cleaning Equipment For Various Anilox Roller

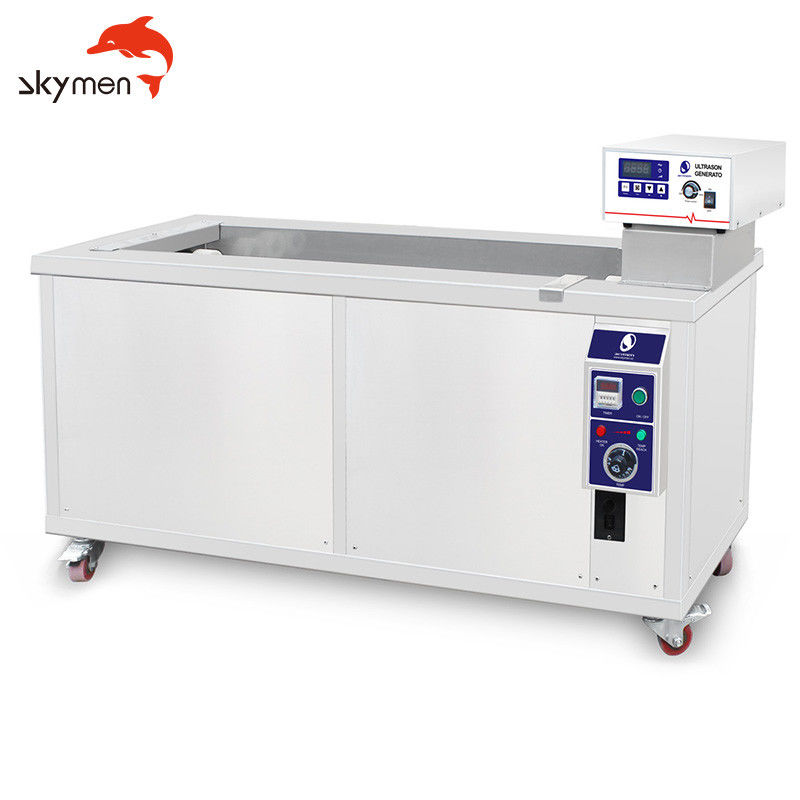

Ultrasonic Anilox Roller cleaning is now recognized as being the most successful method of removing ink, coatings and adhesives from engraved rollers. Skymen Anilox Roller Cleaner is fit for all kinds and all size anilox roller in removing ink,dust and other contaminant on anilox roller.
2.Length Adjustable Function:
Because printing company ususally will have various size Anilox Roller so we have designed length adjustable function meet different cleaning requirement for different size anilox roller.
3.How Ultrasonic Cleaner Work For Anilox Cleaner.
Ultrasonic is sound energy that creates cavitation when introduced into a liquid. The cavitation is caused by pressure differentials, providing the cleaning action of this process. When using ultrasonic cleaning systems, be aware that excessive exposure time can cause cell damage.
To monitor this, ultrasonic generators are generally controlled by timers to limit exposure time and minimize damage to anilox cells. As a rule, higher line screen engravings require shorter cleaning times and are more susceptible to damage, as shown in the following examples:
Example 1: An 800-line screen roll contains 736,000 cells per square inch (wall width is 3 microns; cell depth is 8 microns.) The exposure time recommended to clean an 800-line screen roll should not exceed 3 minutes. Example
Example 2: A 200-line screen roll contains 46,000 cells per square inch (wall width is 7 microns; cell depth is 34 microns.) This lower line screen roll takes longer to clean, and can tolerate an exposure time of up to 20 minutes because wider walls are not as susceptible to damage.
The following reference table outlines exposure time recommendations for cleaning anilox rolls using ultrasonics:
|Line Screen||Recommended Time in Ultrasonic Cleaner|
|360 and below||20 minutes|
|380 - 440||15 minutes|
|460 - 660||10 minutes|
|680 - 800||3 minutes|
Any line count above 800-line screen should be cleaned manually.
4.Video Presentation Of Skymen Anilox Roller Cleaner
|Special Function||Length Adjustable And Rotating|
6.Feature Of JTS-1072
Over time Anilox rolls will reduce the amount of ink they transfer because of blocking of the cell structures. Ink hardens & dries, blocking the cells reducing the volume of ink they can carry. Ultrasonic cleaning is an environmental & safe way to bring Anilox rolls back to new condition without harsh chemicals.
1.Ultrasonic cleaning removes old Ink residue.
2.Quick & easy
3.No harsh chemicals
4.Brings rolls back to new condition.
5.Applications: cleaning Anilox Rolls, tools
7.How to choose a suitable Anilox Roller Ultrasonic Cleaner
Ultrasonic cleaning is now recognized as being the most successful method of removing ink, coatings and adhesives from engraved rollers. However, it is extremely important to select an ultrasonic cleaning system which is specifically designed for ceramic rollers and a system which will clean without damaging the fine screen cell walls.
Ceramic anilox rolls cannot be properly cleaned with conventional mechanical methods. The ceramic cell cavities are far smaller than even the finest brush bristles. Although blast systems can clean coarse anilox rolls, only ultrasonic cleaners can thoroughly and safely clean the fine count anilox rolls being used today.
8 Befor and After:
9. Package and Delivery
It will be packed by a wood case with shipping standard.
Delivery: it will be sent 20days after your payment.
