Product Details:
|
| Transducer: | 24pcs | Material: | SUS304 |
|---|---|---|---|
| Generator: | Yes | Ultrasonic Power: | 600~2400W |
| Thickness: | 2.5mm | Flange: | Yes |
| High Light: | 1200W Immersible Ultrasonic Transducer,Air Cooler Immersible Ultrasonic Transducer,SUS Ultrasonic Transducer Box |
||

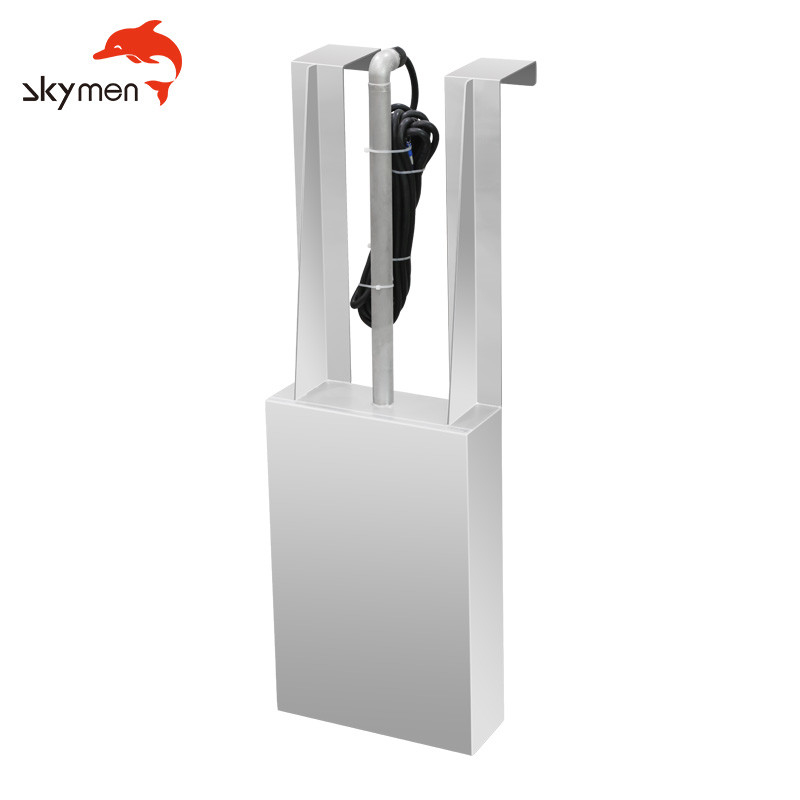

Submersible Ultrasonic transducer Rod For Extraction Diameter 300mm
Specification:
| Model No. | JP-1024I |
| Function | Ultrasonic Cleaning |
| Ultrasonic Frequency | 28/40KHz |
| Material | SUS304 |
| Transducer | 24pcs |
| Time setting | 1-99 hours adjustable |
| Power Supply | AC220V/ 50Hz |
| Ultrasonic Power | 1200W (40%-100% adjuatable) |
| Box Size (LxWxH) | 430*280*100mm (L*W*H) |
| Generator | 1 set |
| Wire method | Rigid tube connect to box |
| N.W./G.W. | 30KG/35KG Packed by plywood box |
| MOQ | 1pcs |
Other size for your choice:
| Model | Tube Size | Transducers | Ultrasonic Power | Weight | Frequency | Generator |
| (D*H)mm | (pcs) | (W) | (KG) | (Khz) | (set) | |
| JM-1003 | 57*180 | 3 | 150 | 3 | 28/40 | 1 |
| JM-1006 | 57*300 | 6 | 300 | 5 | 28/40 | 1 |
| JM-1012 | 57*550 | 12 | 600 | 10 | 28/40 | 1 |
| JM-1018 | 57*750 | 18 | 900 | 15 | 28/40 | 1 |
| JM-1024 | 57*1000 | 24 | 1200 | 20 | 28/40 | 1 |
| JM-1036 | 57*1520 | 36 | 1800 | 30 | 28/40 | 1 |
| Model | Plate Size | Transducers | Ultrasonic Power | Generator | Frequency | Sample Price | 2-20pcs |
| (L*W*H)mm | (pcs) | (W) | (set) | (KHz) | ($) | ($) | |
| JP-1006I | 305*205*100 | 6 | 300 | 1 | 28/40 | 430 | 385 |
| JP-1012I | 355*305*100 | 12 | 600 | 1 | 28/40 | 550 | 465 |
| JP-1018I | 340*280*100 | 18 | 900 | 1 | 28/40 | 600 | 525 |
| JP-1024I | 430*280*100 | 24 | 1200 | 1 | 28/40 | 680 | 630 |
| JP-1030I | 460*370*100 | 30 | 1500 | 1 | 28/40 | 750 | 700 |
| JP-1036I | 550*450*100 | 36 | 1800 | 1 | 28/40 | 840 | 775 |
| JP-1048I | 600*450*100 | 48 | 2400 | 1 | 28/40 | 1220 | 1130 |
Feature:
1. The default frequency is 28/40KHz, if need other frequency(20/68/80/132KHz), then need to quote.
2. Tank material is SUS304, if need SUS316, then price is 20% higher
3. There is no Skymen Logo for this series machine on sale, can put customer's logo, MOQ is 2pcs.
4. This series machine is mainly for distributor to take up market.
5. All the box can be put in water to working directly, customer needs to weld tank by himself.

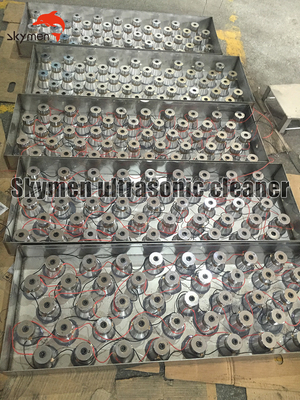

Actual usage scenarios
