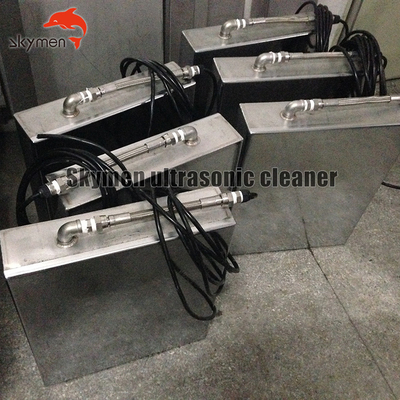

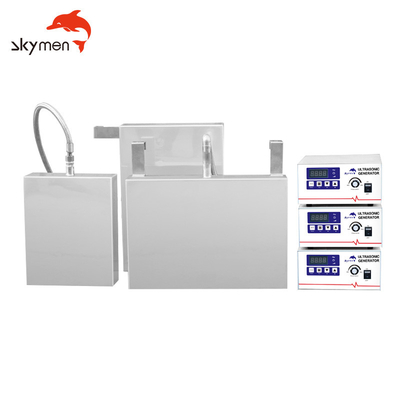

Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer

Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer
Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer

Large Image :  Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer

Product Details:
Place of Origin: China
Brand Name: Skymen
Certification: CE ROHS FCC SGS
Model Number: JP-1048I
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD300~1200USD / SET
Packaging Details: 1unit per carton / wooden case
Delivery Time: In Stock
Payment Terms: T/T
Supply Ability: 8000 pcs per month

Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer

Description
Material: SUS304/SUS316 Generator: Yes
Transducer: 12~48pcs Ultrasonic Power: 600~2400W
Thickness: 2.5mm Screw: Yes
High Light:

Immersible Ultrasonic Transducer Box

,

Ultrasonic Transducer Box 1800W

,

SUS304 Immersible Ultrasonic Transducer

Submersible Ultrasonic transducer Rod For Extraction Diameter 300mm


Specification:

Model No. JP-1036I
Function Ultrasonic Cleaning
Ultrasonic Frequency 28/40KHz
Material SUS304
Transducer 36pcs
Time setting 1-99 hours adjustable
Power Supply AC220V/ 50Hz
Ultrasonic Power 1800W (40%-100% adjuatable)
Box Size (LxWxH) 460*370*100mm (L*W*H)
Generator 1 set
Wire method Rigid tube connect to box
N.W./G.W. 35KG/40KG Packed by plywood box
Quantity 1pcs


Other size for your choice:

Model Tube Size Transducers Ultrasonic Power Weight Frequency Generator
(D*H)mm (pcs) (W) (KG) (Khz) (set)
JM-1003 57*180 3 150 3 28/40 1
JM-1006 57*300 6 300 5 28/40 1
JM-1012 57*550 12 600 10 28/40 1
JM-1018 57*750 18 900 15 28/40 1
JM-1024 57*1000 24 1200 20 28/40 1
JM-1036 57*1520 36 1800 30 28/40 1



Model Plate Size Transducers Ultrasonic Power Generator Frequency Sample Price 2-20pcs
(L*W*H)mm (pcs) (W) (set) (KHz) ($) ($)
JP-1006I 305*205*100 6 300 1 28/40 430 385
JP-1012I 355*305*100 12 600 1 28/40 550 465
JP-1018I 340*280*100 18 900 1 28/40 600 525
JP-1024I 430*280*100 24 1200 1 28/40 680 630
JP-1030I 460*370*100 30 1500 1 28/40 750 700
JP-1036I 550*450*100 36 1800 1 28/40 840 775
JP-1048I 600*450*100 48 2400 1 28/40 1220 1130


Feature:
1. The default frequency is 28/40KHz, if need other frequency(20/68/80/132KHz), then need to quote.
2. Tank material is SUS304, if need SUS316, then price is 20% higher
3. There is no Skymen Logo for this series machine on sale, can put customer's logo, MOQ is 2pcs.
4. This series machine is mainly for distributor to take up market.

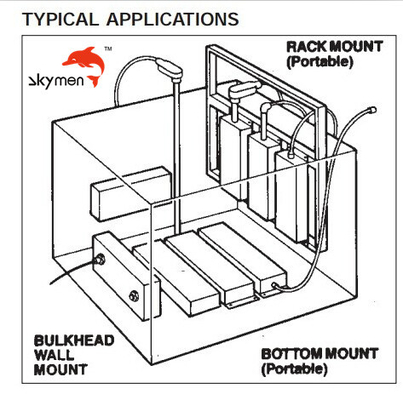

5. All the box can be put in water to working directly, customer needs to weld tank by himself.

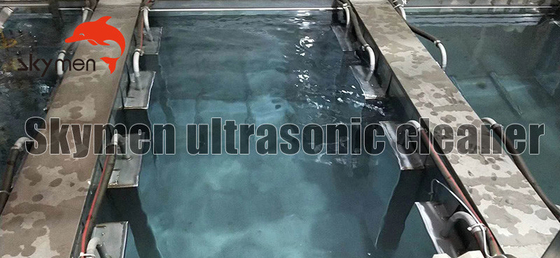

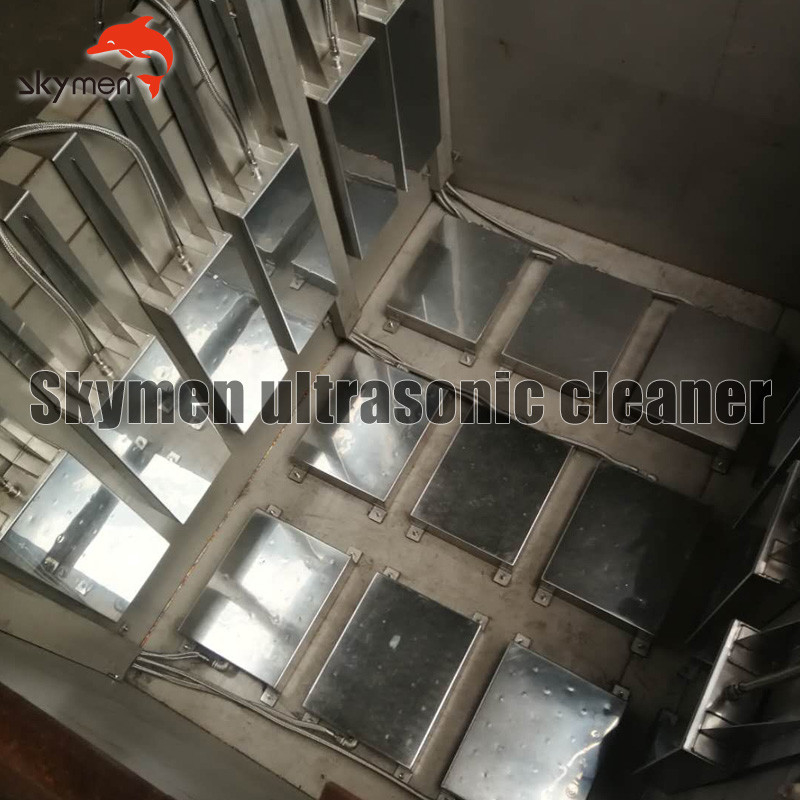

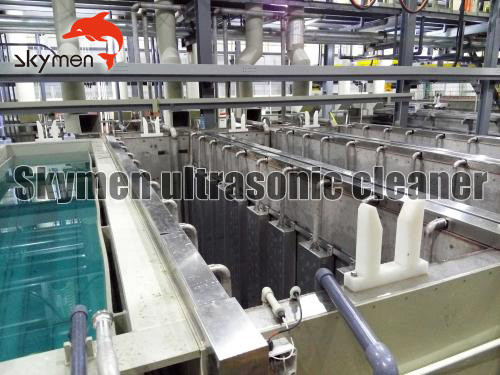

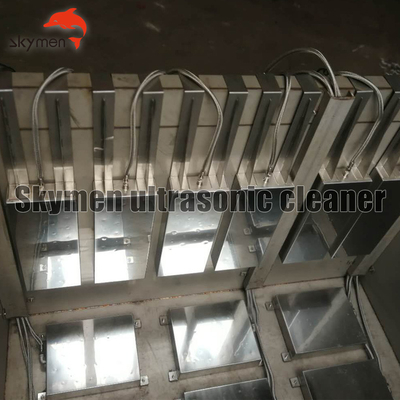

Actual usage scenarios
Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer 0Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer 1Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer 2Skymen Immersible Ultrasonic Transducer Box SUS304 Adjustable Timer 3
