Product Details:
|
Material: | SUS 304/316 | Tank Capacity: | 135Liter*3 |
---|---|---|---|
Tank Size: | 600X500X450 Mm | Frequency: | 28/40KHz |
Power Supply: | 380V / 220V 3 Phase | Ultrasonic Power: | 1800W*2 |
Highlight: | SUS304 Housing Industrial Ultrasonic Cleaner Mahine,Three Tanks Industrial Ultrasonic Cleaner Mahine,Semi Automatic Industrial Ultrasonic Cleaner |

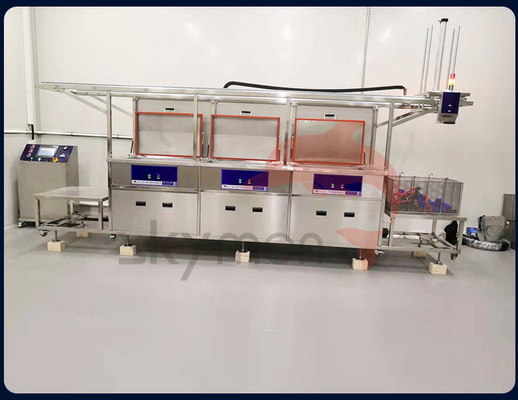

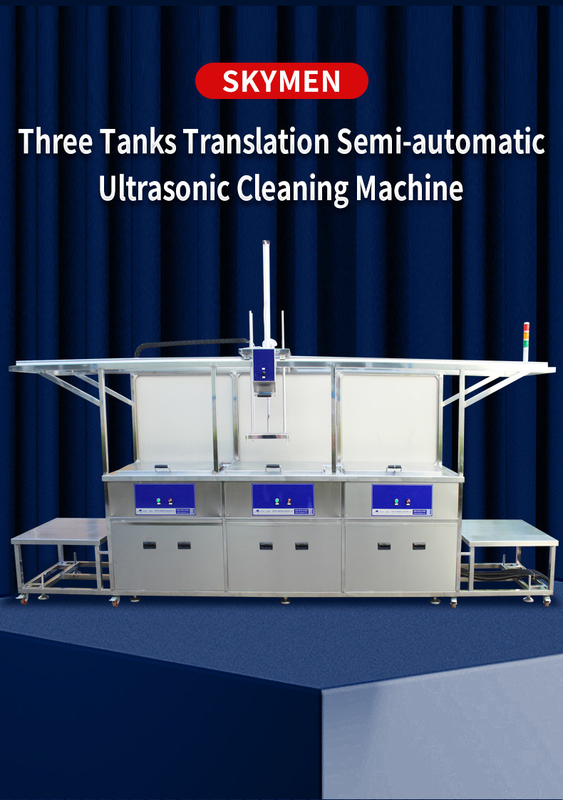

Semi-automatic Industrial Ultrasonic Cleaner Mahine with Three Tanks Translation
Function:
Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt.
Features:
Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.
Time is adjustable among 1 second to 500 hours by simple handle of large timer.
Additional special case for small parts cleaning and drainage for changing of cleaning solution.
Automatic stopwatch to manage working time and maintenance time.
Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.
Specificatoin:
Model | JP-3072GH |
Ultrasonic power | 0-3600W Adjustable |
Frequency | 28/40KHz |
Housing material | SUS304 |
Tank material | SUS304 / 316 |
Heating power | 4500W*2 |
Tank capacity | 135L*3 |
Timer | 0-99hours adjustable |
Heater | Room temperature~95℃ |
Voltage | 380V / 220V 3 phase |
Tank size | 600X500X450mm |
Certificate | ISO9001:2008|CE & RoHS |
Size could be customized
Similar models with different tank volume:
Model | Tank Size | Volume | Ultrasonic Power |
Heating Power |
Time Control |
L*W*H (mm) | (L) | (W) | (W) | (min) | |
JP-3072GH | 600X500X450 | 135L | 1800W*2 | 4500W*2 | 0-99h |
JP-3096GH | 700X500X500 | 175L | 2400W*2 | 6000W*2 | 0-99h |
JP-3120GH | 800X600X550 | 264L | 3000W*2 | 6000W*2 | 0-99h |
JP-3144GH | 1000X600X600 | 360L | 3600W*2 | 9000W*2 | 0-99h |
JP-3168GH | 1500X700X400 | 420L | 4200W*2 | 15000W*2 | 0-99h |
JP-3192GH | 1200X500X800 | 480L | 4800W*2 | 15000W*2 | 0-99h |
JP-3216GH | 1000X900X600 | 540L | 5400W*2 | 18000W*2 | 0-99h |
JP-3240GH | 1000X800X800 | 640L | 6000W*2 | 21000W*2 | 0-99h |
JP-3264GH | 1000X1000X800 | 800L | 6600W*2 | 24000W*2 | 0-99h |
JP-3288GH | 1200X1000X800 | 960L | 7200W*2 | 27000W*2 | 0-99h |
JP-3432GH | 1500X1000X1000 | 1500L | 10800W*2 | 36000W*2 | 0-99h |
How does Ultrasonic Cleaner work?
Before and after :
What are advantages of ultrasound over traditional cleaning methods?
1).minimizes the use of manual labor
2).makes cleaning and degreasing without the use of organic solvents
3).reaches every area of product and remove all types of dirt
4).shorten processes such as extraction, dispersion, purification, and chemical reactions.
5).eliminates costly mechanical and chemical cleaning of heat exchangers
Application:
Industrial ultrasonic cleaner China can be used to clean & degrease engine block, oil filter, cooler, nozzle, wheel and other kinds of car parts.
Ultraosnic cleaner is ideal to clean rust,carbon,pait,heavy oil,fruit agricultural chemicals and other things hard to clean, without damage to parts inside tank.
tank dimension and transducers are custom made available.
Functions:
1st tank work as ultrasonic cleaning;
2nd work as rinsing parts after cleaning.
3rd Spray.
Custom made is ok

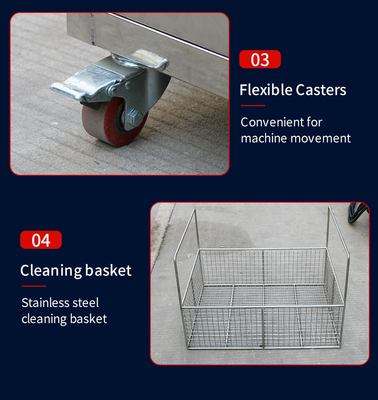

ultrasonic cleaner equipment system with filter system ,Specification of tank dimension are custom made available.Either for big mould or small parts cleaning can receive perfect cleaning efficiency. Stainless steel basket is optional.
