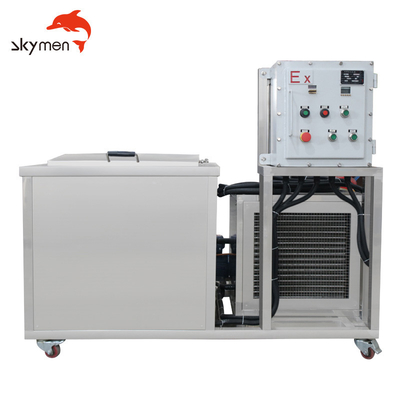

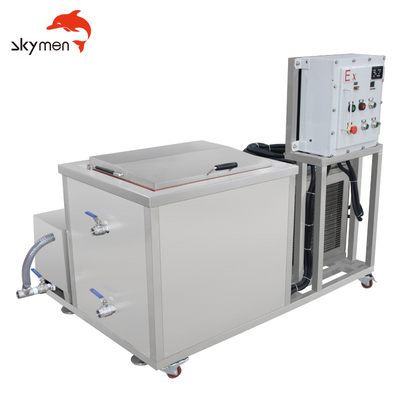

High Power Industrial Ultrasonic Bath Explosion Proof With Cooling System

High Power Industrial Ultrasonic Bath Explosion Proof With Cooling System
High Power Industrial Ultrasonic Bath Explosion Proof With Cooling System High Power Industrial Ultrasonic Bath Explosion Proof With Cooling System

Large Image :  High Power Industrial Ultrasonic Bath Explosion Proof With Cooling System

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JTS-1048FB
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$ 8660
Packaging Details: Wooden case
Delivery Time: In Stock
Payment Terms: T/T
Contact Now

High Power Industrial Ultrasonic Bath Explosion Proof With Cooling System

Description
Cleaning Media: Flammable And Explosive Detergent Technology: T5
Cooling System: Available Explosion-proof: Available
Oil Skimmer: Available Cleaning Tank Size: 700x500x500mm
Capacity: 175 Liters
Highlight:

4.5kW industrial ultrasonic bath

,

Explosion Proof industrial ultrasonic bath

,

100 liters industrial Ultrasonic Cleaning Machine

High Power Ultrasonic Bath with Cooling System Explosion Proof Ultrasonic Cleaning Machine

Product Features
1. Digital touch: light touch button operation, digitaldisplay time and temperature;
2. Adjustable temperature: room temperature-95 degrees adjustable;
3. Adjustable power:0-100% adjustable;
4. Adjustable time:0-99H adjustable(normally open);·2.0 Argon welding liner: SUS304 stainless steel, 2mm thickness is more durable;
5. Stainless steel shell: buckle connection of square steel frame door, anti-dirty and anti-fingerprint;Stainless steel silencer
cover: SUS304 stainless steel, dirt-resistant and fingerprint-proof;
6. Stainless steel basket: SUS304 stainless steel, a variety of meshes are available,and steel bars are reinforced;.
7. Machine power cord:adopts industrial thickened cable, which is durable;
8. Non-slip casters: The machine adopts the design of mov-able stop-aid casters, which is convenient to move and fix;
9. Generator: brand generator with frequency sweep function;·
10. Independent research and development drive: imported original electrical accessories,stable output;
11. Transducer: Industrial imported head shaking, strong force and good effect, high conversion rate,long working hours;
12. Cooling system: The fan cooperates with multiple holes to dissipate heat in multiple directions.

Specifications of ultrasonic cleaner
Model name
JTS-1048FB
Working vessel Dimensions
700x500x500(LxWxH).
Cleaning tank capacity
175 liters
Material
all-stainless steel 304.
Total ultrasonic energy
max. 4.5 kW
Ultrasonic generator
1pcs, explosive proof generator
Ultrasonic technology
explosive proof
Transducer frequency
28 kHz or 40 kHz
Ultrasonic transducer power
ultrasonic power 2400W.
Ultrasonic mode
Power adjustable
Heater
6 kW, constant .
temperature approx. 20-95°C, in combination with ultrasonic power
Oil skimmer and separator
On behalf of removal of floating contaminants
Overflow tank
On behalf of maintaining the right liquid in cleaning vessel
Cover
for covering the cleaning tank top, hydraulically operated
Leveling
4 manually adjustable legs for system leveling
Basket
on behalf of safe positioning of parts; max. permissible weight 15 tonnes
Generator
1 set, explosive proof
Control
by means of a single electric box.
Power supply
3 phase power
Shipment
By air, by sea

Characteristics

Ultrasonic activity operates on similar principles to sound waves. As electrical energy is transferred to mechanical energy, it causes positive and negative pressure waves that generate microscopic bubbles that form on all surfaces throughout the component being cleaned. But these are no ordinary bubbles. The air bubbles in the fluid in ultrasonic cleaning equipment implode when they come into contact with a solid surface. This effect is known as cavitation. When the air bubbles implode, a powerful jet of fluid is created which comes into contact with the surfaces of the objects being cleaned at extremely high pressures and temperatures. This dynamic effect separates contaminants from all surfaces without damaging the object in any way. These micro-jet shock waves, combined with special ultrasonic cleaning solvents, remove bitumen, heavy oils, fats lime scale deposits and other (chemical) waste products in refineries much faster and more thoroughly than conventional methods (high pressure,steam, mechanical and chemical cleaning).
Usage: The system is developed to generate a faster and higher cleaning level by means of ultrasonic power, in combination with specialized chemicals (degradable). Due to the microscopic level a perfect inner and outer penetration will be created.

Application

High Power Industrial Ultrasonic Bath Explosion Proof With Cooling System

Same Series explosive proof ultrasonic cleaner List

High Power Industrial Ultrasonic Bath Explosion Proof With Cooling System

Cleaning Effect

High Power Industrial Ultrasonic Bath Explosion Proof With Cooling System
