Product Details:
|
Tank Capacity: | 99L | Tank Size: | 550X450X400 Mm |
---|---|---|---|
Ultrasonic Power: | 1500W For Two | Heating Power: | 4500W For Two |
Frequency: | 40KHz / 28KHz | Transducer: | 60pcs |
High Light: | Car Parts Industrial Ultrasonic Cleaner,60pcs Transducers Industrial Ultrasonic Cleaner,99L Car Parts Ultrasonic Cleaner |
1500W*2 99L Capacity JP-3060GH Industrial Ultrasonic Cleaner
Function:
Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt .
Features:
Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.
Time is adjustable among 1 second to 500 hours by simple handle of large timer.
Additional special case for small parts cleaning and drainage for changing of cleaning solution.
Automatic stopwatch to manage working time and maintenance time.
Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.
Specificatoin:
Model | JP-3060GH |
Ultrasonic power | 1500W*2 (60pcs transducers) |
Frequency | 40KHz / 28KHz |
Housing material | SUS304 |
Tank material | SUS304 / 316 |
Heating power | 4500W*2 |
Tank capacity | 99L |
Timer | Digital 1-99 min adjustable |
Heater | Room temperature~150℃ |
Voltage | AC 380V, 3phase 50Hz |
Tank size | 550X450X400mm |
Certificate | ISO9001:2008|CE & RoHS |
From 10 galles to 200 gallons , size could be customized

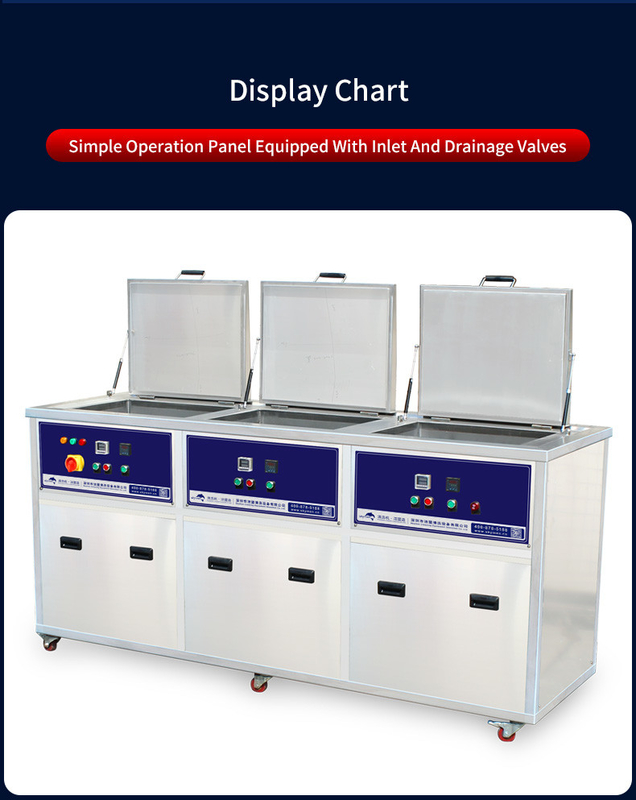

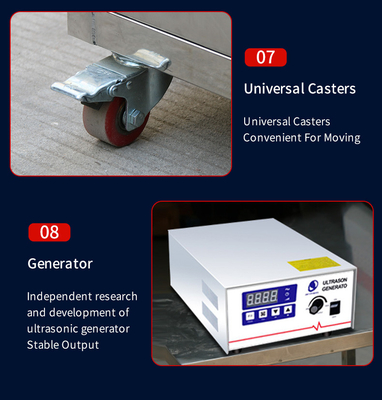

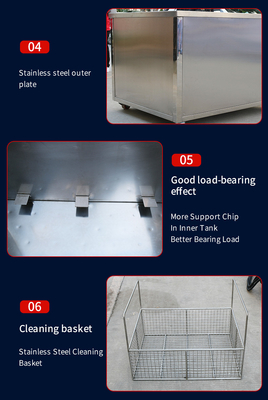

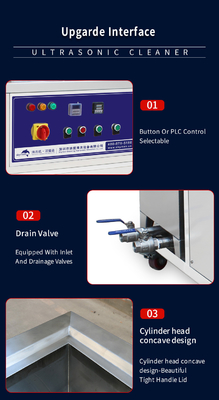

Images of this model:
Similar models with different tank volume:
Model | Tank size | Volume | Ultrasonic Power |
Heating Power |
Transducer |
L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
JP-3024GH | 500X300X250 | 38L | 600W*2 | 1500W*2 | 24pcs |
JP-3036GH | 500X350X300 | 53L | 900W*2 | 1500W*2 | 36pcs |
JP-3048GH | 550X400X350 | 77L | 1200W*2 | 3000W*2 | 48pcs |
JP-3060GH | 550X450X400 | 99L | 1500W*2 | 4500W*2 | 60pcs |
JP-3061GH | 800X300X400 | 96L | 1500W*2 | 4500W*2 | 30pcs |
JP-3072GH | 600X500X450 | 135L | 1800W*2 | 4500W*2 | 72pcs |
JP-3096GH | 700X500X500 | 175L | 2400W*2 | 6000W*2 | 96pcs |
JP-3120GH | 800X600X550 | 246L | 3000W*2 | 6000W*2 | 120pcs |
JP-3144GH | 1000X600X600 | 360L | 3600W*2 | 9000W*2 | 144pcs |
JP-3168GH | 1500X700X400 | 420L | 4200W*2 | 15000W*2 | 168pcs |
JP-3192GH | 1200X500X800 | 480L | 4800W*2 | 15000W*2 | 192pcs |
JP-3216GH | 1000X900X600 | 540L | 5400W*2 | 18000W*2 | 216pcs |
JP-3240GH | 1000X800X800 | 640L | 6000W*2 | 21000W*2 | 240pcs |
JP-3264GH | 1000X1000X800 | 800L | 6600W*2 | 24000W*2 | 264pcs |
JP-3288GH | 1200X1000X800 | 960L | 7200W*2 | 27000W*2 | 288pcs |
JP-3432GH | 1500X1000X1000 | 1500L | 10800W*2 | 36000W*2 | 432pcs |
How does Ultrasonic Cleaner work?
How to use an ultrasonic cleaner ?
As ultrasonic wave through the solution in the lank, cause alternating high and low pressures in the solution.
During the low pressure stage , millions of the microscopic bubbles form and grow . This process is called "CAVITATION" .
During the high pressure stage , the bubbles implode releasing enormous amounts of the energy . They work in all directions , attacking surface and invading all recesses and openings.
Package by polywooden case:
Before and after :
