SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets

Certification
China Skymen Technology Corporation Limited certification
China Skymen Technology Corporation Limited certification
Customer Reviews
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

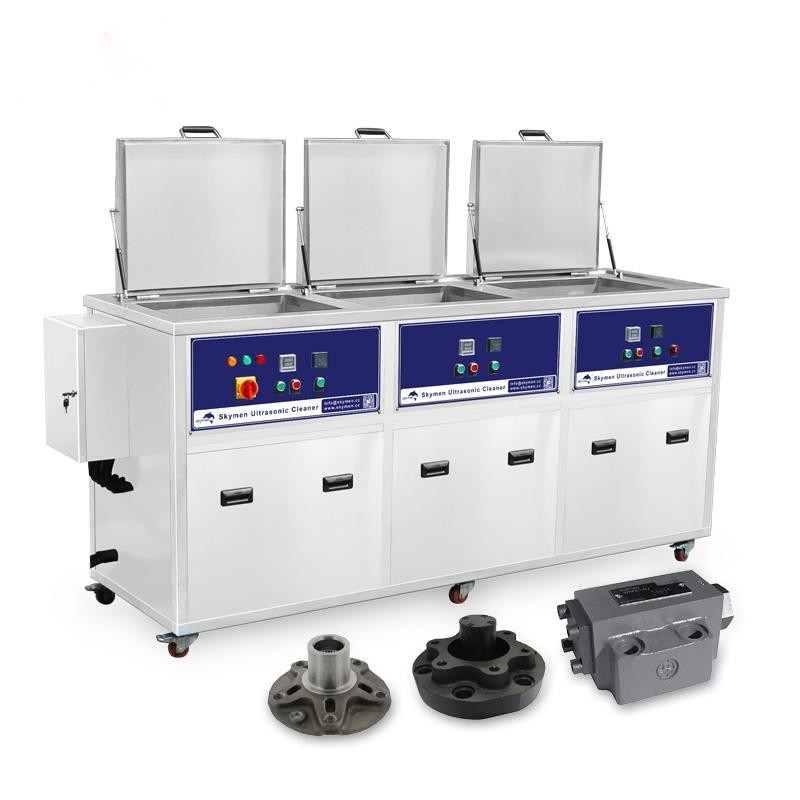

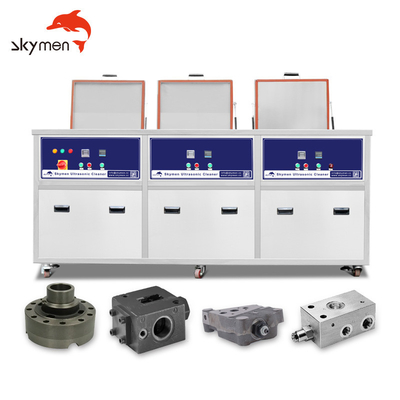

SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets

SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets
SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets
SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets

Large Image :  SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JTM-3120GH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 8000USD / UNIT
Packaging Details: Wooden case
Delivery Time: In Stock
Payment Terms: T/T
Supply Ability: 800 pcs per month

SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets

Description
Tank Dimension: 32 X 24 X 22 Inch Vessel Volume: 70 Gallon
Ultrasonic Power: 3000W X 2 Heating Power: 6000W X 3
Generator: Inside Machine 1st Tank: Ultrasonic Cleaning
2nd Tank: Ultrasonic Rinsing/water Sprary 3rd Tank: Hot Air Drying
High Light:

264L Ultrasonic cleaning machine

,

Hydraulic Valve Ultrasonic cleaning machine

,

SUS304 stainless steel ultrasonic cleaner

hydraulic valve componnets Ultrasonic cleaning machine removing debris
SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets 0
Product Overview
Hydraulic Value cleaning process by Skymen 3 tank ultrasonic cleaner
For the dirt that is firmly pasted in the hydraulic valve, it should not be scratched when cleaning. When choosing a cleaning fluid, pay attention to its corrosiveness to avoid corrosion to the valve body. The cleaned parts should be kept carefully to avoid rust or recontamination. Skymen recommends using three tanks and three processes to complete the valve cleaning 1. The first process is ultrasonic cleaning. Chemicals can be added to the liquid to cooperate with ultrasonic cleaning. This process can remove most of the oil and dirt, including blind holes and gaps. 2. It is recommended to use high-pressure water spraying in the second process. After the first process is completed, move the valve to the spray tank and use high-pressure water for all-round spraying. This process can further clean 3. 3. The dirt on the valve and remove the residue. of chemicals. The third process is hot air drying, which can quickly dry the liquid remaining on the valve to avoid secondary pollution and rust
Features at a Glance

Application for all kinds of values
1. Slide valve
2. Shut-off valve
3. Butterfly valve
4. Ball valve
5. Plug valve
6. Check valve
7. Trap value
8. Pressure reducing valve
9. Safety value
10. Throttle valve
11. Relief valve
12. Balance valve
13. Shuttle valve



Benefits

1. Easy control.
2. Long life span
3. Economy of space
4. Minimal pollution for working place
5. No disassembly in transport
6. Fast cleaning
7. Saving detergent
8. Saving water
9. Saving labor
10. Saving time
11. Thoroughly cleaning
12. Safety for workers
13. Friendly to environment


Unique selling points

1. (Waste) water savings
2. Higher cleaning level
3. Noise reduction
4. Cleaning speed
5. Safety level
6. Environmental aspects
7. Staff expenses savings
8. Energy savings
9. Maintenance costs savings
10. Minimal damage to items
11. With Oil skimmer and separator
12. With Overflow tank
13. With hydraulic lifting system



Products Description
Specifications of Hydraulic Ultrasonic Cleaner
1st tank specification
Function
Ultrasonic cleaning + Filtration cycle system
Ultrasonic Frequency
28kHz
Tank Material
SUS 304
Inner tank dimension
32 x 24 x 22 inch / 800 x 600 x 550mm
Tank Capacity
70 Gallon / 264L
Transducer
60pcs
Ultrasonic Power
3000W
Heating Power
6000W
Time setting of Ultrasonic
0~99 hours
Temperature setting
Room temperature ~ 95°C adjustable
Generator
2 sets
Filtration cycle system
1 set, with water pump, overflow tank, filter element
2nd tank specification
Function
Ultrasonic cleaning
Ultrasonic Frequency
28kHz
Tank Material
SUS 304
Inner tank dimension
32 x 24 x 22 inch / 800 x 600 x 550mm
Tank Capacity
70 Gallon / 264L
Transducer
60pcs
Ultrasonic Power
3000W
Heating Power
6000W
Time setting of Ultrasonic
0~99 hours
Temperature setting
Room temperature ~ 95°C adjustable
Generator
1 set
3rd tank specification
Function
Hot air drying tank
Inner tank dimension
32 x 24 x 22 inch / 800 x 600 x 550mm
Turbines power
3000W
Dryer power
6000W
Temperature setting
20~150℃ adjustable
General
Power supply
3 phase power, 380V/50Hz; 220V/60Hz
Gross weight(no lifting)
500KG
Gross weight(with lifting)
750KG
Overall size(no lifting)
3000 x 1600 x 1000mm
Overall size(with lifting)
4000 x 1600 x 1700mm
Production time
25 working days
Details ImagesSUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets 1
Characteristics
Ultrasonic activity operates on similar principles to sound waves. As electrical energy is transferred to mechanical energy, it causes positive and negative pressure waves that generate microscopic bubbles that form on all surfaces throughout the component being cleaned. But these are no ordinary bubbles. The air bubbles in the fluid in ultrasonic cleaning equipment implode when they come into contact with a solid surface. This effect is known as cavitation. When the air bubbles implode, a powerful jet of fluid is created which comes into contact with the surfaces of the objects being cleaned at extremely high pressures and temperatures. This dynamic effect separates contaminants from all surfaces without damaging the object in any way. These micro-jet shock waves, combined with special ultrasonic cleaning solvents, remove bitumen, heavy oils, fats lime scale deposits and other (chemical) waste products in refineries much faster and more thoroughly than conventional methods (high pressure,steam, mechanical and chemical cleaning).
Usage: The system is developed to generate a faster and higher cleaning level by means of ultrasonic power, in combination with specialized chemicals (degradable). Due to the microscopic level a perfect inner and outer penetration will be created.
ApplicationSUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets 2
Same Series Machine List
Model No.
Inner Tank Dimension
Tank Volume
Ultrasonic Power
Heating Power
JTM-3024GH
20 x 12 x 10 inch
10 Gallon
600W x 2
1500W x 3
JTM-3036GH
20 x 14 x 12 inch
14 Gallon
900W x 2
1500Wx 3
JTM-3048GH
22 x 16 x 14 inch
20 Gallon
1200W x 2
3000Wx 3
JTM-3060GH
22 x 18 x 16 inch
25 Gallon
1500W x 2
3000Wx 3
JTM-3072GH
24 x 20 x 18 inch
36 Gallon
1800W x 2
4500Wx 3
JTM-3096GH
28 x 20 x 20 inch
46 Gallon
2400W x 2
6000Wx 3
JTM-3120GH
32 x 24 x 22 inch
70 Gallon
3000W x 2
6000Wx 3
JTM-3144GH
39 x 24 x 24 inch
95 Gallon
3600W x 2
9000Wx 3
JTM-3216GH
39 x 35 x 24 inch
143 Gallon
5400W x 2
18000Wx 3
JTM-3288GH
47 x 39 x 32 inch
254 Gallon
7200W x 2
24000Wx 3
Other inner tank size and tank capacity can be customized
Cleaning Effect
SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets 3
SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets 4
SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets 5
Cooperated with CRRC in 2021
In April 2021, Skymen Group will join hands with CRRC again through third-party cooperation. This is the best proof of Skymen Group's strength. In fact, this is not the first time the two sides have cooperated. As early as 2017 to the present, during the period Skymen Group has provided CRRC with cleaning technology solutions and cleaning equipment for many times, and is grateful to CRRC for its recognition and trust. This time, we will provide cleaning needs of spare parts based on motor vehicle maintenance, such as: cleaning couplings, clamps, gearboxes, valve seats and other spare parts. A set of intelligently controlled automatic ultrasonic cleaning equipment was manufactured to meet the needs of CRRC's intelligent cleaning.
SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets 6
Cooperated with HITACHI in 2021
Skymen Group and Hitachi Group announced a strategic cooperation in 2021 to provide them with intelligent cleaning technology solutions for precision hardware, and help accelerate the production efficiency and cleaning needs of workpieces. During this period, Skymen cleaning technology was strongly recognized by Hitachi Group. Skymen believes that the promotion of intelligent cleaning equipment in China should be developed towards a broader space, and at the same time, it will also transform technology into realistic productivity and add new momentum to China's industrial economic upgrade.
SUS304 Tank Ultrasonic Cleaning Machine Removing Debris For Hydraulic Valve Componnets 7
Cooperated with Samsung in 2020
In 2020, Samsung Group and Skymen Group reached an in-depth strategic cooperation to provide them with intelligent cleaning technology solutions in the electronics industry, and to help accelerate the production efficiency and cleaning needs of workpieces; Now in 2021, Samsung Group will once again purchase a fully automatic ultrasonic cleaning line equipment with Skymen Group, marking that Skymen Group's technical strength has once again been recognized by Samsung Group. In this cooperation, Skymen believes that China's intelligent cleaning equipment should be developed towards a broader space, and at the same time, technology will be transformed into realistic productivity, adding new momentum to China's industrial economic upgrade.
