Product Details:
|
| Transducer Box: | 460X370X100mm | Wire Methods: | Rigid/flexible Tube |
|---|---|---|---|
| Material: | SUS304/SUS316 | Fix Point: | Available |
| Flange: | Available | Suitable Tank Volume: | 90~100L |
| High Light: | FCC Submersible Ultrasonic Transducer Box,Oxygen Sensor Ultrasonic Transducer Box,1500W Ultrasonic Bath Transducer |
||

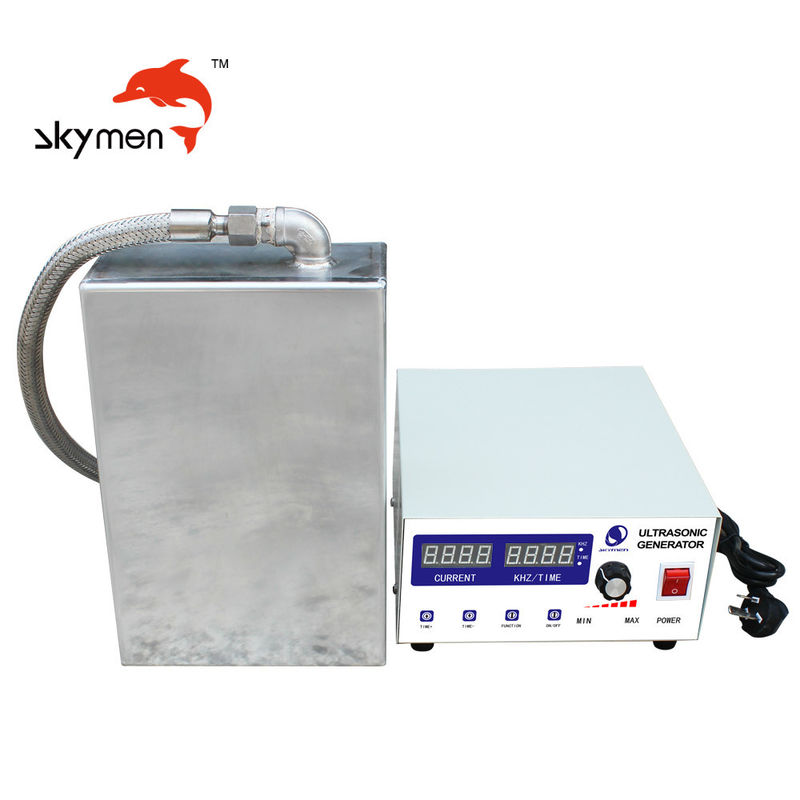

Submersible Ultrasonic transducer Box For Cleaning Oxygen Sensor of Car 1500W
Specification:
| Model | JP-1030I |
| Transducer | 30pcs |
| Ultrasonic power | 1500W |
| Ultrasonic frequency | 28/40Khz |
| Ultrasonic box size (L*W*H) | 460*370*100mm |
| Box weight | 30KG |
| Wiring out methods of box | Rigid or hose |
| Fixed point on box | Available |
| Flange to hang up on the tank wall | Available |
| Make according to your drawing | Available |
| Generator | 1 set |
| Generator weight | 7KG |
| Generator size |
370*280*150 |
| Packing way | Packed by plywood case |
| Double frequency | Available |
| Sweeping frequency | Available |
Other size for your choice:
| Model | Box size(mm) | Transducer | Ultrasonic Power(W) | Frequency(KHz) | Wire Method |
| JP-1006I | 305*205*100 | 6pcs | 300 | 28/40 | Rigid tube/hose |
| JP-1012I | 355*305*100 | 12pcs | 600 | 28/40 | Rigid tube/hose |
| JP-1018I | 340*280*100 | 18pcs | 900 | 28/40 | Rigid tube/hose |
| JP-1024I | 430*280*100 | 24pcs | 1200 | 28/40 | Rigid tube/hose |
| JP-1030I | 460*370*100 | 30pcs | 1500 | 28/40 | Rigid tube/hose |
| JP-1036I | 550*450*100 | 36pcs | 1800 | 28/40 | Rigid tube/hose |
| JP-1048I | 600*450*100 | 48pcs | 2400 | 28/40 | Rigid tube/hose |
| JTS-1030I | 500*300*100 | 30pcs | 1500 | 28/40 | Rigid tube/hose |
| JTS-1030I | 600*250*100 | 30pcs | 1500 | 28/40 | Rigid tube/hose |
| JTS-1036I | 600*400*100 | 36pcs | 1800 | 28/40 | Rigid tube/hose |
| JTS-1036I | 700*400*100 | 36pcs | 1800 | 28/40 | Rigid tube/hose |
| JTS-1036I | 800*350*100 | 36pcs | 1800 | 28/40 | Rigid tube/hose |
| JTS-1036I | 900*300*100 | 36pcs | 1800 | 28/40 | Rigid tube/hose |
| JTS-1036I | 1000*300*100 | 36pcs | 1800 | 28/40 | Rigid tube/hose |
| JTS-1048I | 700*500*100 | 48pcs | 2400 | 28/40 | Rigid tube/hose |
| JTS-1048I | 800*500*100 | 48pcs | 2400 | 28/40 | Rigid tube/hose |
| JTS-1048I | 900*400*100 | 48pcs | 2400 | 28/40 | Rigid tube/hose |
| JTS-1048I | 1000*400*100 | 48pcs | 2400 | 28/40 | Rigid tube/hose |
| JTS-1048I | 1100*350*100 | 48pcs | 2400 | 28/40 | Rigid tube/hose |
| JTS-1048I | 1200*300*100 | 48pcs | 2400 | 28/40 | Rigid tube/hose |
Feature:
1. The default frequency is 28/40KHz, if need other frequency(20/68/80/132KHz), then need to quote.
2. Tank material is SUS304, if need SUS316, then price is 20% higher
3. There is no Skymen Logo for this series machine on sale, can put customer's logo, MOQ is 2pcs.
4. This series machine is mainly for distributor to take up market.
5. All the box can be put in water to working directly, customer needs to weld tank by himself.
Actual usage scenarios
Protein extraction
Ultrasonic extraction of protein also has a significant effect. Ultrasonic waves can not only pulverize the above-mentioned embryos in water, but also liquefy 80% of the proteins, and also extract the thermally unstable 7S protein components.
Ultrasonic treatment can increase the protein extraction rate; ultrasonic treatment can also increase the separation temperature of the slurry and reduce the viscosity of the slurry, which can be used to directly produce high-protein soy milk products.
The soybean slurry of different concentrations, the heat-treated soybean slurry before grinding and the separated bean dregs are subjected to ultrasonic treatment. Compared with the untreated soybean slurry, the protein content of the soy milk has been significantly increased, and the increase range is 12% to 20%.
