900W SUS Submersible Ultrasonic Transducer Pad For Heat Exchanger

900W SUS Submersible Ultrasonic Transducer Pad For Heat Exchanger
900W SUS Submersible Ultrasonic Transducer Pad For Heat Exchanger 900W SUS Submersible Ultrasonic Transducer Pad For Heat Exchanger

Large Image :  900W SUS Submersible Ultrasonic Transducer Pad For Heat Exchanger

Product Details:
Place of Origin: China
Brand Name: Skymen
Certification: CE ROHS FCC SGS
Model Number: JP-1018I
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD540~600 / SET
Packaging Details: 1unit per carton / wooden case
Delivery Time: In Stock
Payment Terms: T/T
Supply Ability: 8000 pcs per month

900W SUS Submersible Ultrasonic Transducer Pad For Heat Exchanger

Description

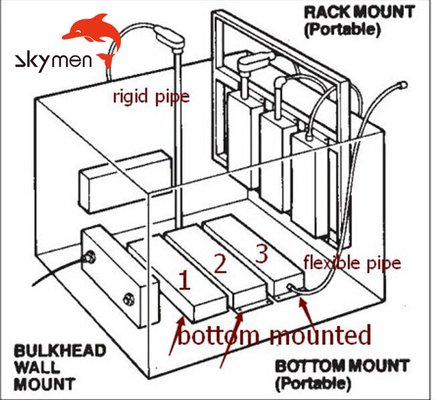

Transducer Box: 340X280X100mm Wire Methods: Rigid/flexible Tube
Material: SUS304/SUS316 Fix Point: Available
Flange: Available Suitable Tank Volume: 40~50L
High Light:

SUS Submersible Ultrasonic Transducer Pad

,

Heat Exchanger Ultrasonic Transducer Pad

,

900W Submersible Transducer Pad

Submersible Ultrasonic transducer Pad For Cleaning Heat Exchanger 900W



Specification:

Model JP-1018I
Transducer 18pcs
Ultrasonic power 900W
Ultrasonic frequency 28/40Khz
Ultrasonic box size (L*W*H) 340*280*100mm
Box weight 23KG
Wiring out  methods of box Rigid or hose
Fixed point on box Available
Flange to hang up on the tank wall Available
Make according to your drawing Available
Generator 1 set
Generator weight 7KG
Generator size

370*280*150

Packing way Packed by plywood case
Double frequency Available
Sweeping frequency Available



Other size for your choice:

Model Box size(mm) Transducer Ultrasonic Power(W) Frequency(KHz) Wire Method
JP-1006I 305*205*100 6pcs 300 28/40 Rigid tube/hose
JP-1012I 355*305*100 12pcs 600 28/40 Rigid tube/hose
JP-1018I 340*280*100 18pcs 900 28/40 Rigid tube/hose
JP-1024I 430*280*100 24pcs 1200 28/40 Rigid tube/hose
JP-1030I 460*370*100 30pcs 1500 28/40 Rigid tube/hose
JP-1036I 550*450*100 36pcs 1800 28/40 Rigid tube/hose
JP-1048I 600*450*100 48pcs 2400 28/40 Rigid tube/hose
JTS-1030I 500*300*100 30pcs 1500 28/40 Rigid tube/hose
JTS-1030I 600*250*100 30pcs 1500 28/40 Rigid tube/hose
JTS-1036I 600*400*100 36pcs 1800 28/40 Rigid tube/hose
JTS-1036I 700*400*100 36pcs 1800 28/40 Rigid tube/hose
JTS-1036I 800*350*100 36pcs 1800 28/40 Rigid tube/hose
JTS-1036I 900*300*100 36pcs 1800 28/40 Rigid tube/hose
JTS-1036I 1000*300*100 36pcs 1800 28/40 Rigid tube/hose
JTS-1048I 700*500*100 48pcs 2400 28/40 Rigid tube/hose
JTS-1048I 800*500*100 48pcs 2400 28/40 Rigid tube/hose
JTS-1048I 900*400*100 48pcs 2400 28/40 Rigid tube/hose
JTS-1048I 1000*400*100 48pcs 2400 28/40 Rigid tube/hose
JTS-1048I 1100*350*100 48pcs 2400 28/40 Rigid tube/hose
JTS-1048I 1200*300*100 48pcs 2400 28/40 Rigid tube/hose



Feature:
1. The default frequency is 28/40KHz, if need other frequency(20/68/80/132KHz), then need to quote.
2. Tank material is SUS304, if need SUS316, then price is 20% higher
3. There is no Skymen Logo for this series machine on sale, can put customer's logo, MOQ is 2pcs.
4. This series machine is mainly for distributor to take up market.
5. All the box can be put in water to working directly, customer needs to weld tank by himself.



Actual usage scenarios

900W SUS Submersible Ultrasonic Transducer Pad For Heat Exchanger 0900W SUS Submersible Ultrasonic Transducer Pad For Heat Exchanger 1900W SUS Submersible Ultrasonic Transducer Pad For Heat Exchanger 2



Ultrasonic extraction 2
advantage
Compared with conventional extraction technology, ultrasonic extraction is fast, inexpensive and efficient.

Compared with the water boiling and alcohol precipitation process, ultrasonic extraction has the following outstanding features:

(1) No need for high temperature

(2) Normal pressure extraction, good safety, simple operation, convenient maintenance

(3) High extraction efficiency

(4) It has a broad spectrum. Wide applicability, most of the various components of Chinese medicinal materials can be extracted by ultrasonic

(5) Ultrasonic extraction has little relationship with the properties of the solvent and the target extract

(6) Reduce energy consumption
