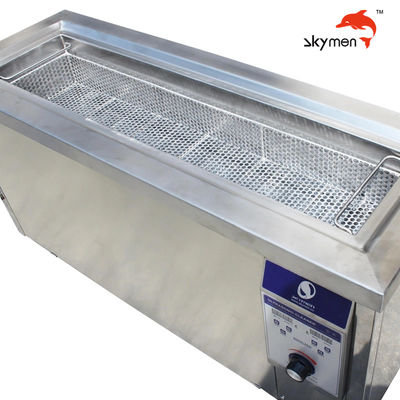

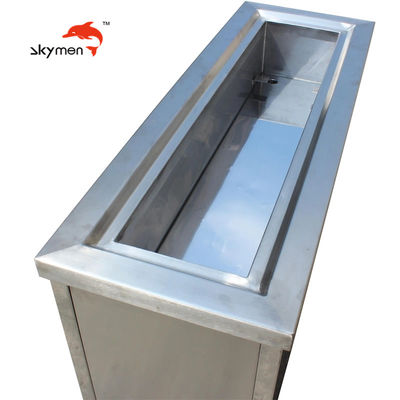

96L 800mm Length Ultrasonic Washing Machine 203 Fahrenheit For Mould

large.img.alt
large.img.alt
video play

Large Image :  96L 800mm Length Ultrasonic Washing Machine 203 Fahrenheit For Mould

Product Details:
Place of Origin: China
Brand Name: SKYMEN
Certification: CE, RoHs, FCC
Model Number: JP-301ST
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 3 working days
Supply Ability: 1200 pcs per month
Detailed Product Description
Application: Clean Melt-blown Mold Function: Ultrasonic+heating
Inner Dimension: 800*300*400mm Tank Volume: 96L
Temperature Setting: 95 Celsius / 203 Fahrenheit Ultrasonic Frequency: 28KHz
Transducer: 30pcs Ultrasonic Power: 1500W
High Light:

800mm Length Ultrasonic Washing Machine

,

96L Ultrasonic Washing Machine

,

203 Fahrenheit Benchtop Ultrasonic Cleaner

Ultrasonic Cleaner Industry for Melt blown mould

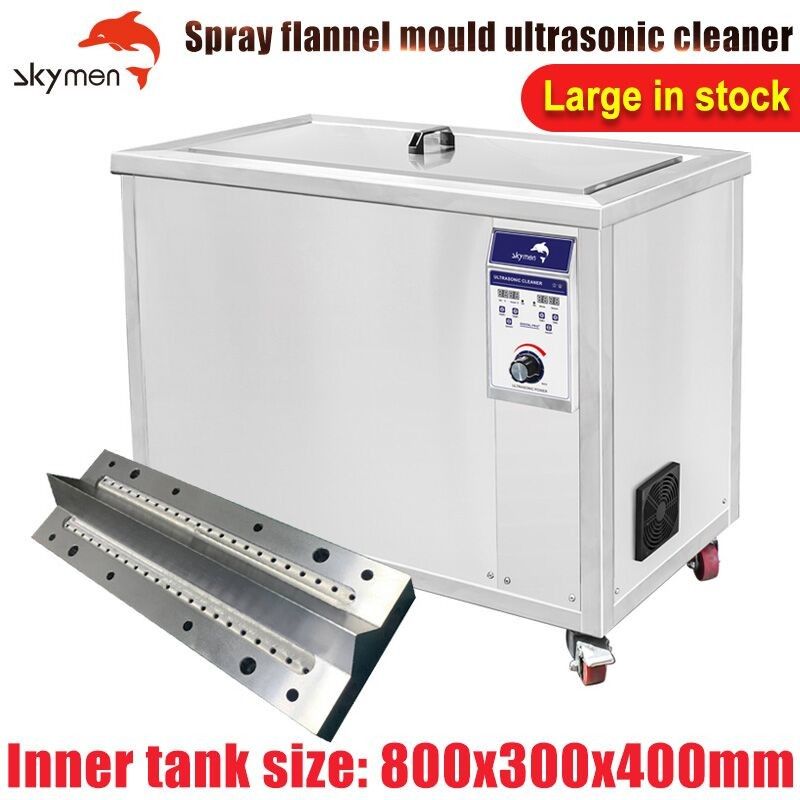

1. Inner tank dimension of this machine: 800*300*400mm (Length × width × deep)
2. The inner tank dimension can be changed/custom according to the size of your Melt blown mould length
3. 1500W stronger ultrasonic power; 3000W heating power
Features at a Glance

1. Fast and thoroughly cleaning
2. Saving labor; time; detergent
3 Clean cracks and blind holes for mould
4. No damage to the mold
5. Removing heavy dirt and fabric easily
6. Power can be adjustable
7. SUS 304/SUS 316 tank material
8. Liquid level switch can be added
9. Thermal insulation can be added
10. With water inlet/out let in suitable place
11. With stainless steel basket
12. Filtration cycle system is available
13. Lifting system for basket is available
14. Electrolysis is available
15. Double/Multi frequency is available
16. Cooling system is available
17. Deionized(DI) water is available
Product Parameters
Model Number
JP-301ST
Function
Ultrasonic cleaning + Hot water cleaning
Ultrasonic Frequency
28/40kHz (other frequency can be customized 20KHz 68KHz, 80KHz, 132KHz)
Tank Material
SUS 304 (SUS 316 can be customized)
Thickness of tank
2mm
Inner tank dimension
800*300*400mm / 31*12*16 inch (Length*width*deep)
Machine dimension
1100*700*850mm (Length*width*height)
Packing dimension
1200*800*1000mm (Length*width*height)
Gross weight of machine
130KG
Tank Capacity
96 Liter / 25 Gallon
Transducer
30pcs; 50W for each transducer; 100W transducer can be customized
Ultrasonic Power
1500W
Heating Power
3000W
Time setting of Ultrasonic
0~99 hours
Temperature setting
Room temperature ~ 95°C / 203°F adjustable
Drain hole
On the bottom of inner tank
Water inlet/outlet
Yes; 20mm
Basket
Yes; ,
Basket load
More than 200KG
Length of power line
1.5 meters
Power supply
220V 50Hz; 110V 60Hz
Warranty
1 year
Certificate
CE; RoHS; FCC; REACH
Lead time
3 days after payment
Cleaning Effect
96L 800mm Length Ultrasonic Washing Machine 203 Fahrenheit For Mould 0
96L 800mm Length Ultrasonic Washing Machine 203 Fahrenheit For Mould 1

Similar models with different tank volume:

Model Tank size Volume Ultrasonic
Power
Heating
Power
Transducer
L*W*H (mm) (L) (W) (W) (pcs)
JP-120ST 500X300X250 38L 600W 1500W 12pcs
JP-180ST 500X350X300 53L 900W 1500W 18pcs
JP-240ST 550X400X350 77L 1200W 3000W 24pcs
JP-300ST 550X450X400 99L 1500W 4500W 30pcs
JP-301ST 800X300X400 96L 1500W 4500W 30pcs
JP-360ST 600X500X450 135L 1800W 4500W 36pcs
JP-480ST 700X500X500 175L 2400W 6000W 48pcs
JP-600ST 800X600X550 246L 3000W 6000W 60pcs
JP-720ST 1000X600X600 360L 3600W 9000W 72pcs
JP-1108ST 1000X900X600 540L 5400W 18000W 108pcs
JP-1144ST 1200X1000X800 960L 7200W 27000W 144pcs





Company Profile
Skymen Cleaning Equipment Shenzhen Co. Ltd., that has worked on ultrasonic cleaner for more than 13 years.Our ultrasonic products fully range from mini household ultrasonic cleaner, benchtop stainless steel small ultrasonic cleaner, and industrial large tank ultrasonic cleaner as well as Immersible ultrasonic transducer system.Our company devote to research and development, with strong engineer teams.Otherwise, we accept customer’s idea and want to develop new products together.

Application

(1) Machinery industry: removal of anti-rust grease; cleaning of measuring tools; degreasing and derusting of mechanical parts; cleaning of engines, carburetors and auto parts; dredging and cleaning of filters and screens, etc.

(2) Surface treatment industry: degreasing and rust removal before electroplating; cleaning before ion plating; phosphating treatment; removing carbon deposits; removing oxide scale; removing polishing paste; surface activation treatment of metal workpieces, etc.

(3) Instrument and meter industry: high cleanliness of precision parts, cleaning before assembly, etc.

(4) Electronic industry: Removal of rosin and solder spots on printed circuit boards; cleaning of mechanical and electronic parts such as high voltage contacts.

(5) Medical industry: cleaning, disinfection, sterilization of medical equipment, cleaning of laboratory utensils, etc.

(6) Semiconductor industry: high cleanliness cleaning of semiconductor wafers.

(7) Clocks and watches, decoration industry: remove sludge, dust, oxide layer, polishing paste, etc.

(8) Chemical and biological industries: cleaning and descaling of laboratory utensils.

(9) Optical industry: degreasing, sweating and dust removal of optical devices.

(10) Textile printing and dyeing industry: cleaning textile spindles, spinnerets, etc.

(11) Petrochemical industry: cleaning and dredging of metal filter screens, cleaning of chemical containers, exchangers, etc.
