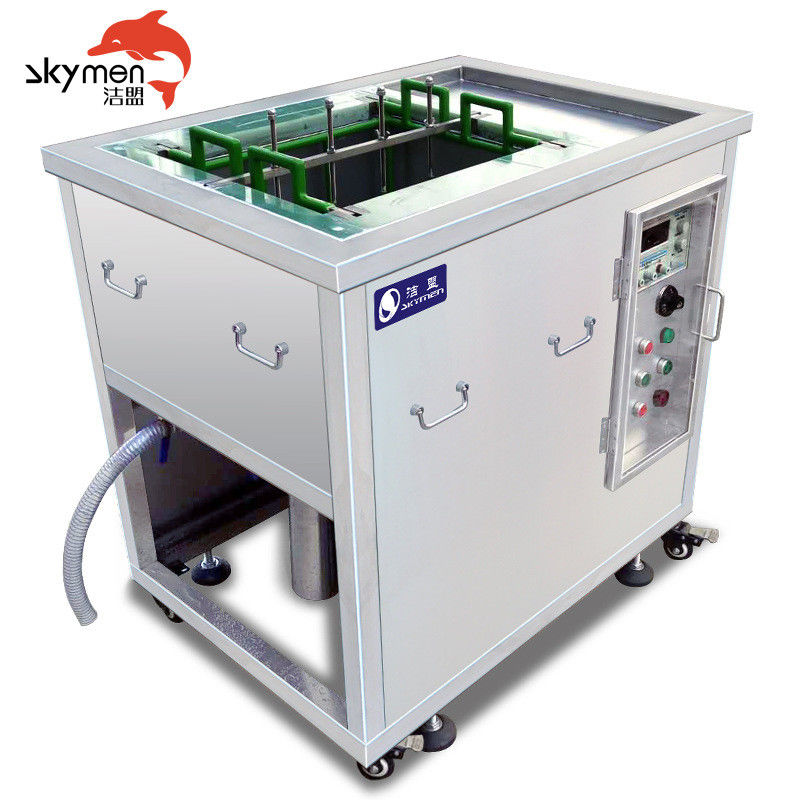

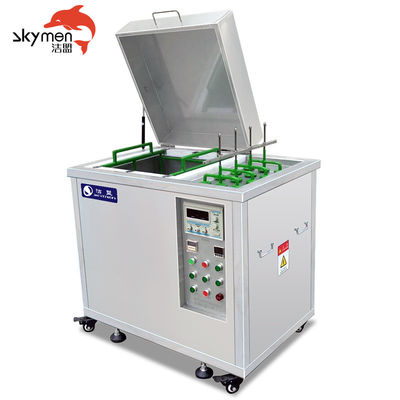

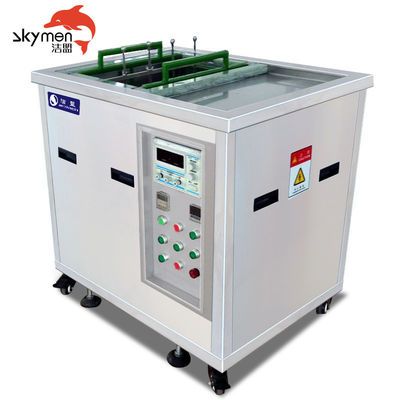

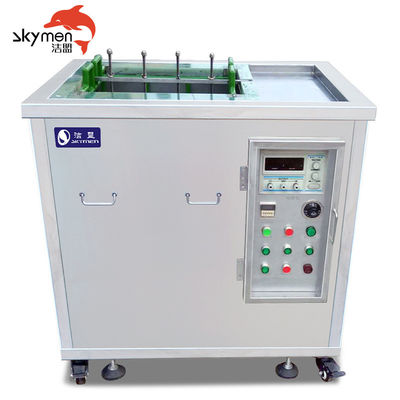

Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius

China Skymen Cleaning Equipment Shenzhen Co., Ltd certification
China Skymen Cleaning Equipment Shenzhen Co., Ltd certification
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius

Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius
Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius
video play

Large Image :  Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius

Product Details:
Place of Origin: China
Brand Name: SKYMEN
Certification: CE, RoHs, FCC
Model Number: JTS-1030
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 20~30 working days
Supply Ability: 1000 pcs per month
Detailed Product Description
Feature: Electrolysis Cleaning Type: Immersion / Soak
Power: 1500W+3000W Dimension(L*W*H): 550 X 450 X 400mm
Application: Clean Precision Mold Temperature Setting: 95 Celsius / 203 Fahrenheit
Ultrasonic Frequency: 28KHz/40KHz Transducer: 30pcs
High Light:

Precision Parts Ultrasonic Washing Machine

,

1500W Ultrasonic Washing Machine

,

95 Celsius Heating Ultrasonic Cleaner

Electrolysis Mold Ultrasonic washing machine for Precision Parts Heating ultrasonic cleaner
1. Inner tank dimension of this machine: 550*450*400mm (Length × width × deep)
2. The inner tank dimension can be changed/custom according to the size of your Melt blown mould length
3. 1500W stronger ultrasonic power; 3000W heating power

Features at a Glance

1. Fast and thoroughly cleaning
2. Saving labor; time; detergent
3 Clean cracks and blind holes for mould
4. No damage to the mold
5. Removing heavy dirt and fabric easily
6. Power can be adjustable
7. SUS 304/SUS 316 tank material
8. Liquid level switch can be added
9. Thermal insulation can be added
10. With water inlet/out let in suitable place
11. With stainless steel basket
12. Filtration cycle system is available
13. Lifting system for basket is available
14. Electrolysis is available
15. Double/Multi frequency is available
16. Cooling system is available
17. Deionized(DI) water is available
Product Parameters
Model Number
JTS-1030
Function
Electrolysis + Hot water cleaning
Ultrasonic Frequency
28/40kHz (other frequency can be customized 20KHz 68KHz, 80KHz, 132KHz)
Tank Material
SUS 304 (SUS 316 can be customized)
Thickness of tank
2mm
Inner tank dimension
550*450*400mm / 31*12*16 inch (Length*width*deep)
Machine dimension
1000*900*1000mm (Length*width*height)
Packing dimension
1100*1000*1200mm (Length*width*height)
Gross weight of machine
130KG
Tank Capacity
99 Liter / 26 Gallon
Transducer
30pcs; 50W for each transducer; 100W transducer can be customized
Ultrasonic Power
1500W
Heating Power
3000W
Time setting of Ultrasonic
0~99 hours
Temperature setting
Room temperature ~ 95°C / 203°F adjustable
Drain hole
On the bottom of inner tank
Water inlet/outlet
Yes; 20mm
Basket
Yes; ,
Basket load
More than 200KG
Length of power line
1.5 meters
Power supply
220V 50Hz; 110V 60Hz
Warranty
1 year
Certificate
CE; RoHS; FCC; REACH
Lead time
25 days after payment
Cleaning Effect
Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius 0
Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius 1

Similar models with different tank volume:

Model Tank size Volume Ultrasonic
Power
Heating
Power
Transducer
L*W*H (mm) (L) (W) (W) (pcs)
JP-120ST 500X300X250 38L 600W 1500W 12pcs
JP-180ST 500X350X300 53L 900W 1500W 18pcs
JP-240ST 550X400X350 77L 1200W 3000W 24pcs
JP-300ST 550X450X400 99L 1500W 4500W 30pcs
JP-301ST 800X300X400 96L 1500W 4500W 30pcs
JP-360ST 600X500X450 135L 1800W 4500W 36pcs
JP-480ST 700X500X500 175L 2400W 6000W 48pcs
JP-600ST 800X600X550 246L 3000W 6000W 60pcs
JP-720ST 1000X600X600 360L 3600W 9000W 72pcs
JP-1108ST 1000X900X600 540L 5400W 18000W 108pcs
JP-1144ST 1200X1000X800 960L 7200W 27000W 144pcs





Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius 2
Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius 3
Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius 4
Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius 5
Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius 6
Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius 7
Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius 8
Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius 9
Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius 10
Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius 11
Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius 12
Company Profile
Skymen Cleaning Equipment Shenzhen Co. Ltd., that has worked on ultrasonic cleaner for more than 13 years.Our ultrasonic products fully range from mini household ultrasonic cleaner, benchtop stainless steel small ultrasonic cleaner, and industrial large tank ultrasonic cleaner as well as Immersible ultrasonic transducer system.Our company devote to research and development, with strong engineer teams.Otherwise, we accept customer’s idea and want to develop new products together.
Precision Parts 1500W Ultrasonic Washing Machine Electrolysis Mold 95 Celsius 13


Ultrasonic cleaning of metal

It is well known that after the metal bar is extruded into a wire, the outer part of the wire often has a layer of carbonized film and oil. It is difficult to remove the dirt (especially the whole wire) by acid cleaning or other cleaning methods. The ultrasonic wire washing machine is According to the actual production needs, a continuous wire-cutting and high-efficiency cleaning equipment is used. The rough washing part is composed of a cleaning liquid storage tank, a transducer, a circulation pump, a filter and a matching piping system. After the wire is ultrasonically washed and washed, And then blow dry to complete the entire cleaning process. The integrated control of the whole set of equipment is simple, convenient and effective. It is widely used in other wires such as silk, tungsten wire, molybdenum wire, silk wire and copper wire (before the coating of insulating paint).
