Product Details:
|
Model: | JP-2072T | First Tank Volume: | 330L |
---|---|---|---|
First Tank Size: | 3000X220X500mm | Transducers: | 72pcs, 50W Of Every Transducer |
Ultrasonic Power: | 3600W | Heating Power: | 9000W |
Function: | Ultrasonic Clean+rinsing+drying | Frequency: | 28/40KHz |
Highlight: | Vertical Ultrasonic Blind Cleaning Machines,Ultrasonic Blind Cleaning Machines 40KHz,330L Double Tanks Ultrasonic Cleaner |

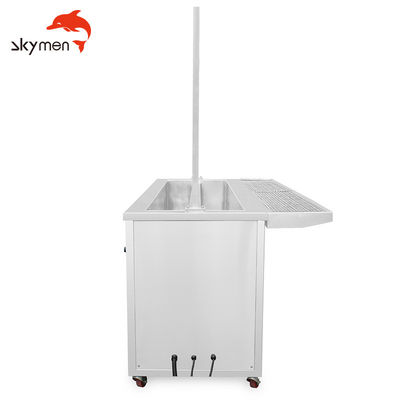

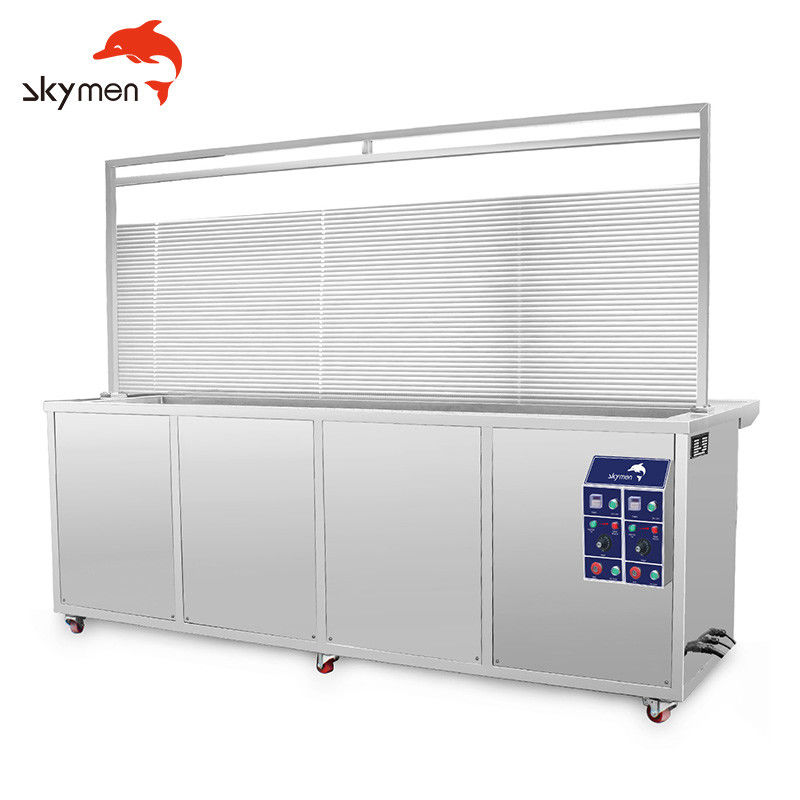

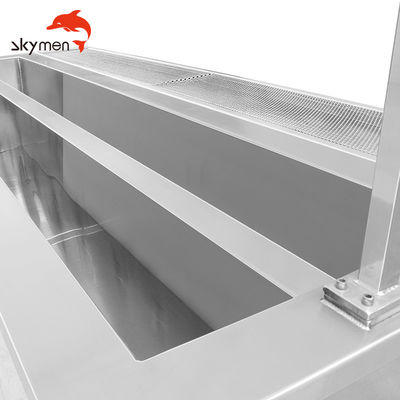

Double Tanks Blinds Curtain 3600W Ultrasonic Cleaning Machine with Drain Holder 28/40KHz
The advantages of the ultrasonic cleaning machine are: the ultrasonic cleaning effect is good, and the operation is simple. The sound that people hear is the acoustic signal with a frequency of 20-20000 Hz. The sound wave higher than 20000 Hz is called ultrasonic wave. The transmission of sound wave propagates longitudinally according to the sinusoidal curve, generating a large number of small bubbles. One reason is that a tensile stress is locally generated in the liquid to form a negative pressure. The decrease in pressure causes the gas originally dissolved in the liquid to be supersaturated, and escapes from the liquid to become small bubbles; another reason is that the strong tensile stress tears the liquid. "Become a hollow, called cavitation.
Same series with different size for your choice:
Model | 1st tank volume | 1st tank size | Transducers | Ultrasonic Power | Heating power | Frequency |
JP-2036T | 160L | 2000*200*400mm | 36pcs | 1800W | 4500W | 28/40KHz |
JP-2060T | 264L | 2400*220*500mm | 60pcs | 3000W | 6000W | 28/40KHz |
JP-2072T | 330L | 3000*220*500mm | 72pcs | 3600W | 12000W | 28/40KHz |
Specification
Model | JP-2072T |
1st Tank Volume | 330L Ultrasonic Cleaning tank with filtration cycle system |
2nd Tank Volume | 330L Ultrasonic Rinsng tank |
1st tank size | 3000*220*500mm |
2nd tank size | 3000*220*500mm |
Transducers | 72pcs |
Ultrasonic Power | 3600W |
Heating Power of Ultrasonic tank | 12000W |
Frenquency | 28KHz/40KHz |
Timer | 0~99 minutes adjustable |
Heater | Room temperature~99℃ adjustable |
Material | SUS 304 default, can be SUS 316 |
Power Supply | AC 220V 3 phase ; AC 380V 3 phase |
N.W. | 300G |
G.W. |
350KG Wrapped by film in wooden case |
Lead time | 18 working days |
Warranty | 1 year warranty period, technique support all time |
Certificates | CE, RoHS, FCC, SGS |
Advantage | Filter the dirty water; keep the water clear in tank; lower the frequency of changing water |
Feature:
1. It's designed for cleaning blind curtains.
2.There are 2 tanks, one is for Ultrasonic clean with heating function, you
can put chemicals in it to clean, another is rinsing tank for removing the
chemicals from curtain.
3. There is a high holder to support the blind curtain, and a leachate
frame to hold the wet curtain
Images:
Company Info:
Skymen Cleaning Equipment Shenzhen Co.,Ltd has been manufacturing ultrasonic cleaners since 2007, We can manufacture virtually any cleaning system in our 3200 square foot facility located in Shenzhen, China.
Our advantages:
1.We are direct manufacturer factory, have ability of mass production.
2.With R&D department, ensure our own technological and innovative products.
3.We have our own brand SKYMEN and do OEM & ODM for distributors.
4.Different capacity is available, 0.6liter ~30liter, 38liter ~5000liter,etc.Include mini household model, bentchtop model, industrial large tank with casters model and submersible transducer pack system.
5.Material for plastic model is stainless steel 304 & ABS, Material for stainless steel model is Stainless steel 304/316
6.CE, RoHS, FCC, C-Tick.
7.1 year warranty for all goods.
