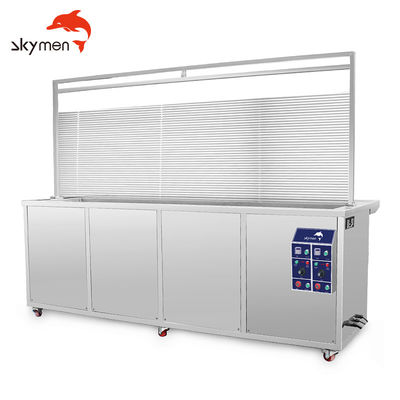

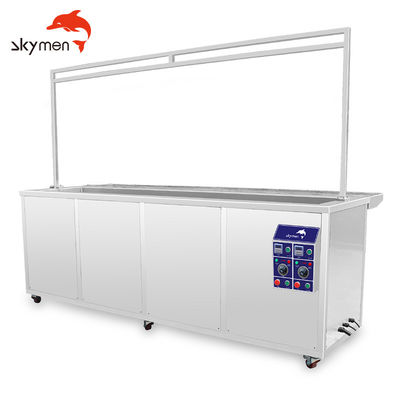

40kHz 264L Ultrasonic Vertical Blind Cleaner With Castor

Certification
China Skymen Technology Corporation Limited certification
China Skymen Technology Corporation Limited certification
Customer Reviews
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

40kHz 264L Ultrasonic Vertical Blind Cleaner With Castor

40kHz 264L Ultrasonic Vertical Blind Cleaner With Castor
40kHz 264L Ultrasonic Vertical Blind Cleaner With Castor 40kHz 264L Ultrasonic Vertical Blind Cleaner With Castor 40kHz 264L Ultrasonic Vertical Blind Cleaner With Castor 40kHz 264L Ultrasonic Vertical Blind Cleaner With Castor

Large Image :  40kHz 264L Ultrasonic Vertical Blind Cleaner With Castor

Product Details:
Place of Origin: China
Brand Name: Skymen
Certification: CE
Model Number: JTS-2060T
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs / wooden case packing
Delivery Time: In Stock
Payment Terms: Paypal / T/T / western Union
Supply Ability: 6,00pcs per month
Price:: nogotiation

40kHz 264L Ultrasonic Vertical Blind Cleaner With Castor

Description
Features: Separate Generator Control; Drying Tray Optional Product Name: Blind Ultrasonic Cleaner
Capacity: 264Liter Optional: Ultrasonic Tank With Rinsing Tank
Ultrasonic Power: 3000W/tank Standard: CE
Ultrasonic Frequency: 28/40kHz Timer: 1-99 Hours Adjust
Highlight:

174L Ultrasonic Vertical Blind Cleaner

,

40kHz Ultrasonic Vertical Blind Cleaner

,

Castor Ultrasonic Shades Cleaning Machines


Mobile Ultrasonic Blind Cleaner With Castor For  Window Blind Cleaning



Application:

Clean all type of blinds:

 - Wood Blinds

 - Vertical Blinds

 - Metal Mini Blinds

 - Faux Wood Blinds

 - Sheer Style Shades

 - Honeycomb and Pleated Shades


For window blind clean, Skymen recommend cleaner with double tank: ultrasonic tank & rinsing tank.

Ultrasonic tank is use to remove contaminants from every part of the blind, including the head rail, and bottom

 rails which support the blind.

Rinsing tank is use tap water to rinse off detergent residues from the blinds. Detergents remaining behind will

 leave residues on the blinds after drying, especially dark-colored blinds.


Specifications:


Ultrasonic tank size

Length* width* depth

2400x220x500mm

Capacity

264liters

Rinse tank size

Length* width* depth

2400x220x500mm

capacity

264 litres

Overall dimension

Length

2400mm L x 640mm W x 800mm H


Material

Stainless steel 304/316L

Ultrasonic power

3KW

Heating power

6 KW

Timer

1~30min adjustable

Heater

20~80C adjustable

ultrasonic frequency

28/40khz

voltage

AC220/380/415V, 50/60Hz

casters

4 casters with braker

transducer head

48pcs


Model No.

JTM-2060

JTM-2072

Ultrasonic tank size(mm)

2400x220x500

3000x220x500

Rinsing tank size(mm)

2400x220x500

3000x220x500

External Dim. (mm)

2580x670x720

3180x670x720

Capacity

  264liter

  330liter

Ultrasonic power

   3000W

3600W

Heating power

6KW

9KW

Transducer numbers

60pcs

72pcs

Ultrasonic frequency

28khz or 40khz



Timer



0~30min adjustable

Heater

20~80C adjustable



Material



Stainless steel 304

Power supply

AC220V, 3phase; AC380V/415V 3phase



Optional

Drying rack, Drying tray, Air bubble





40kHz 264L Ultrasonic Vertical Blind Cleaner With Castor

40kHz 264L Ultrasonic Vertical Blind Cleaner With Castor

Special Tank Size is available. No Problem to design machine based on your demand!


Features:

  1. long enough for cleaning several mini blinds at once, and long enough for most vertical blinds as well
  2. Separate Tanks - one for cleaning and one for rinsing
  3. Drain Pipes - one for each tank
  4. Industrial-Grade Transducers: very reliable, efficient, and powerful
  5. Durable Stainless Steel Tank
  6. Digital Timer for Controlling the Ultrasonic Power
  7. Temperature-Controlled Heating
  8. Sturdy Casters for Easy Transporting

Competitive Advantage:

  1. Tank constructed of Stainless steel 304/316L
  2. Chroming for Stainless steel plate which install ultrasonic transducer, enhance and protect the plate
  3. Separate generator control with sweep mode.
  4. With wheels for removable service.
  5. With heating and air bubble function to enhance cleaning result.
  6. 1 year warranty
  7. Remove build-up of dirt,  grease or soot rapidly, 15~30 seconds per blind.
  8. Only ultrasonic cleaner can prevent scratching, pitting or damage to blinds.
  9. Only ultrasonic cleaner can clean entire blind.
  10. Only ultrasonic cleaner can clean all types of blinds
  11. Including wood blinds, fabric blinds, aluminum blinds, plastic blinds, etc
  12. Rinsing tank with ultrasonic function or air bubble is optional.
  13. SKYMEN Ultrasonic cleaner can do all above for you
