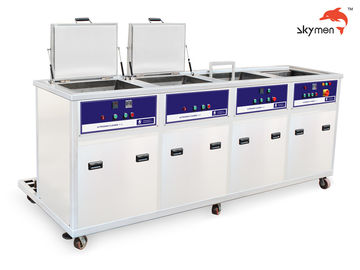

100L Tank Volume Ultrasonic Cleaning Machine 28/40KHz With Filter Dryer Spray

large.img.alt
small.img.alt

Large Image :  100L Tank Volume Ultrasonic Cleaning Machine 28/40KHz With Filter Dryer Spray

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JTS-4060GPH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 18 working days after payment
Payment Terms: T/T
Supply Ability: 800 pcs per month
Detailed Product Description
Model: JTS-4060GPH First Tank Volume: 99L
First Tank Size: 550X450X400mm Transducers: 30pcs In 1st Tank; 30pcs In 2nd Tank
Ultrasonic Power: 1500W*2 Heating Power: 3000W*2
Function: Ultrasonic Clean+filter+rinsing+spray+drying Frequency: 28/40KHz
High Light:

ultrasonic cleaning device

,

ultrasonic washing machine

100L Ultrasonic Cleaning Machine with Filter, Dryer, Spray 28/40KHz



Cleaning after grinding
Grinding is an important process in optical glass production that determines its processing efficiency and surface quality (appearance and precision). The main pollutants in the grinding process are abrasive powder and asphalt, and a few companies will have paint flakes during processing. Among them, the types of abrasive powders are different, and generally are alkali metal oxides mainly composed of cerium oxide. According to the material of the lens and the grinding precision, choose different types of grinding powder. The bitumen used in the grinding process is protective to prevent the polished mirror surface from being scratched or corroded. There are two types of cleaning equipment after grinding: one mainly uses an organic solvent cleaning agent, and the other mainly uses a semi-aqueous cleaning agent.



Low frequency choose:

Ultrasonic cleaners operate at very low frequencies (within the human hearing range) and produce noise. When the frequency is below 20 kHz, the working noise not only becomes very large, but may exceed the limits of safety noise as stipulated by occupational safety and health laws or other regulations. In applications where high power is required to remove dirt without regard to surface damage of the workpiece, lower cleaning frequencies ranging from 20 kHz to 30 kHz are typically selected. Cleaning frequencies in this frequency range are often used to clean large, heavy-duty parts.



Same series with different size for your choice:

Model Size of every tank Tank Volume Ultrasonic
Power
Heating Power of Ultrasonic tank Heating Power of drying tank Transducer
L*W*H (mm) (L) (W) (W) 750W (pcs)
JP-4024GPH 500X300X250 38L*4 600W 1500W*2 750W 24pcs
JP-4036GPH 500X350X300 53L*4 900W 1500W*2 750W 36pcs
JP-4048GPH 550X400X350 77L*4 1200W 3000W*2 750W 48pcs
JP-4060GPH 550X450X400 99L*4 1500W 3000W*2 750W 60pcs
JP-4072GPH 600X500X450 135L*4 1800W 4500W*2 750W 72pcs
JP-4096GPH 700X500X500 175L*4 2400W 6000W*2 750W 96pcs
JP-4120GPH 800X600X550 264L*4 3000W 6000W*2 750W 120pcs
JP-4144GPH 1000X600X600 360L*4 3600W 9000W*2 750W 144pcs
JP-4216GPH 1000X900X600 540L*4 5400W 18000W*2 1100W 216pcs
JP-4288GPH 12000*1000*800 960L*4 7200W 24000W*2 1500W 288pcs



Specification

Model JTS-4024GPH
1st Tank Volume 99L   Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 99L   Ultrasonic Rinsng tank
3rd Tank Volume 99L   Spray tank
4th Tank Volume 99L   Drying tank
1st tank size 550X450X400mm
2nd tank size 550X450X400mm
3rd Tank size 550X450X400mm
4th tank size 550X450X400mm
Transducers 30pcs in 1st tank; 30pcs in 2nd tank
Ultrasonic Power  1500W*2
Heating Power of Ultrasonic tank 3000W*2
Heating Power of Drying tank 750W
Frenquency 28KHz/40KHz
Drying System 1 set
Unit size 2920*1150*1000mm
Packing size 2980*1210*1120mm
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304 default, can be SUS 316
Power Supply AC 220V 3 phase ; AC 380V 3 phase
N.W. 500G
G.W.

550KG Wrapped by film in wooden case

Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water





Images:
100L Tank Volume Ultrasonic Cleaning Machine 28/40KHz With Filter Dryer Spray 0

100L Tank Volume Ultrasonic Cleaning Machine 28/40KHz With Filter Dryer Spray 1
Clean effect:

100L Tank Volume Ultrasonic Cleaning Machine 28/40KHz With Filter Dryer Spray 2100L Tank Volume Ultrasonic Cleaning Machine 28/40KHz With Filter Dryer Spray 3100L Tank Volume Ultrasonic Cleaning Machine 28/40KHz With Filter Dryer Spray 4
100L Tank Volume Ultrasonic Cleaning Machine 28/40KHz With Filter Dryer Spray 5

Principle

The principle of the ultrasonic cleaning machine is mainly to convert the sound energy of the power ultrasonic frequency source into mechanical vibration through the transducer, and to irradiate the ultrasonic wave into the cleaning liquid in the groove through the cleaning tank wall. Due to the radiation of the ultrasonic waves, the microbubbles in the liquid in the tank can be kept vibrated by the action of the sound waves. The adsorption of the dirt and the surface of the cleaning member is destroyed, causing fatigue damage of the dirt layer to be rejected, and the vibration of the gas type bubble scrubs the solid surface.
