Product Details:
|
Model: | JTS-4024GPH | First Tank Volume: | 38L |
---|---|---|---|
First Tank Size: | 500X300X250mm | Transducers: | 12pcs In 1st Tank; 12pcs In 2nd Tank |
Ultrasonic Power: | 600W*2 | Heating Power: | 1500W*2 |
Function: | Ultrasonic Clean+filter+rinsing+spray+drying | Frequency: | 28/40KHz |
High Light: | automotive ultrasonic cleaner,ultrasonic cleaning device |

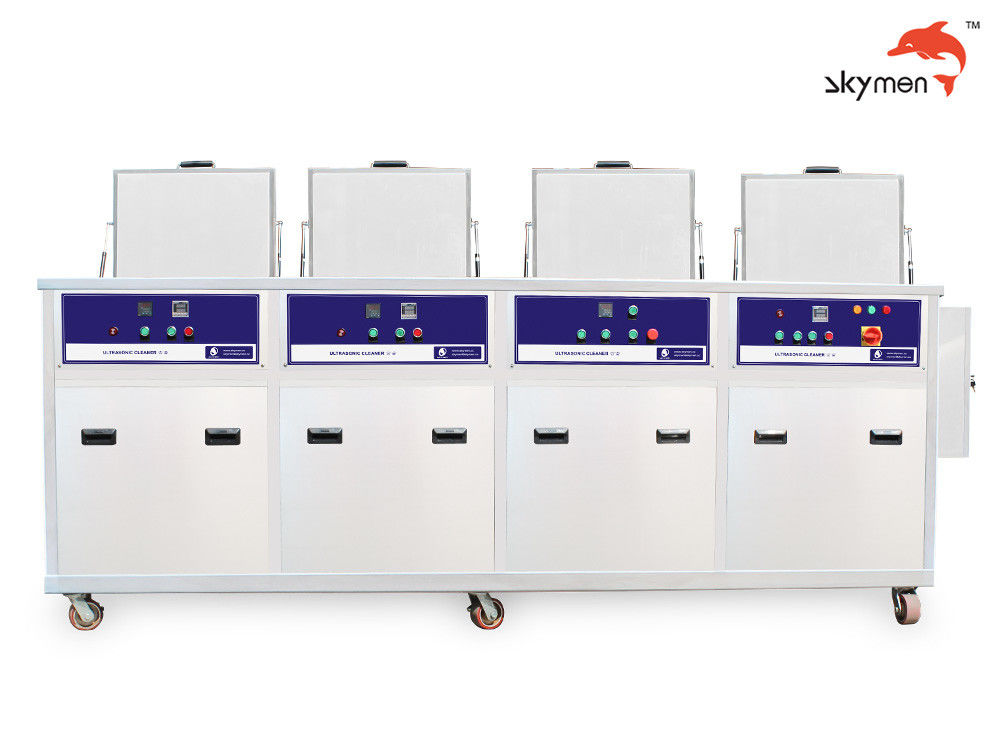

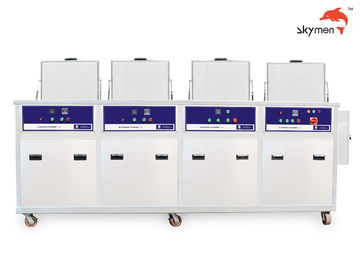

38L Ultrasonic Cleaning Machine with Filter, Dryer, Spray 28/40KHz
Main performance characteristics
The washing machine is operated by single chip software.
The cleaning machine's sound reduction cover and cleaning tank are made of high quality stainless steel.
The washing machine has good sealing performance and has sound insulation and heat insulation effect.
Digital display over temperature, over voltage, over current, low water level, no solution protection indication.
Digital memory, setting display ultrasonic working time, ultrasonic power, liquid level (and actual liquid level), heating temperature (and actual temperature).
The cleaning machine circuit has an automatic frequency sweep function, which can generate a continuous pulse jet, which makes the cleaning effect more obvious and the work is more stable.
The cleaning circuit and device are upgraded and matched, and the power conversion rate is high and the reactive power loss is low.
More Related Applications:
1. Removal of the rust-proof grease; Cleaning of measuring tools; Oil removal and rust removal of mechanical parts; Cleaning of engines, carburetors and automobile parts; Filter, filter mesh dredge cleaning.
2. Medical equipment cleaning/ disinfection/ sterilization; test utensils cleaning.
3. Remove oil and rust before plating; Cleaning before ion plating;Phosphating; Removal of carbon deposits; Removing oxide skins;Remove polishing paste; Metal workpiece surface activation treatment.
4. Industrial ultrasonic cleaner machine for cleaning electronic parts: ultrasonic PCB cleaner for cleaning circuit board.
Same series with different size for your choice:
Model | Size of every tank | Tank Volume | Ultrasonic Power |
Heating Power of Ultrasonic tank | Heating Power of drying tank | Transducer |
L*W*H (mm) | (L) | (W) | (W) | 750W | (pcs) | |
JP-4024GPH | 500X300X250 | 38L*4 | 600W | 1500W*2 | 750W | 24pcs |
JP-4036GPH | 500X350X300 | 53L*4 | 900W | 1500W*2 | 750W | 36pcs |
JP-4048GPH | 550X400X350 | 77L*4 | 1200W | 3000W*2 | 750W | 48pcs |
JP-4060GPH | 550X450X400 | 99L*4 | 1500W | 3000W*2 | 750W | 60pcs |
JP-4072GPH | 600X500X450 | 135L*4 | 1800W | 4500W*2 | 750W | 72pcs |
JP-4096GPH | 700X500X500 | 175L*4 | 2400W | 6000W*2 | 750W | 96pcs |
JP-4120GPH | 800X600X550 | 264L*4 | 3000W | 6000W*2 | 750W | 120pcs |
JP-4144GPH | 1000X600X600 | 360L*4 | 3600W | 9000W*2 | 750W | 144pcs |
JP-4216GPH | 1000X900X600 | 540L*4 | 5400W | 18000W*2 | 1100W | 216pcs |
JP-4288GPH | 12000*1000*800 | 960L*4 | 7200W | 24000W*2 | 1500W | 288pcs |
Specification
Model | JTS-4024GPH |
1st Tank Volume | 38L Ultrasonic Cleaning tank with filtration cycle system |
2nd Tank Volume | 38L Ultrasonic Rinsng tank |
3rd Tank Volume | 38L Spray tank |
4th Tank Volume | 38L Drying tank |
1st tank size | 500X300X250mm |
2nd tank size | 500X300X250mm |
3rd Tank size | 500X300X250mm |
4th tank size | 500X300X250mm |
Transducers | 12pcs in 1st tank; 12pcs in 2nd tank |
Ultrasonic Power | 600W*2 |
Heating Power of Ultrasonic tank | 1500W*2 |
Heating Power of Drying tank | 750W |
Frenquency | 28KHz/40KHz |
Drying System | 1 set |
Unit size | 2680*950*850mm |
Packing size | 2740*1010*970mm |
Timer | 0~99 minutes adjustable |
Heater | Room temperature~99℃ adjustable |
Material | SUS 304 default, can be SUS 316 |
Power Supply | AC 220V 3 phase ; AC 380V 3 phase |
N.W. | 500G |
G.W. |
550KG Wrapped by film in wooden case |
Lead time | 18 working days |
Warranty | 1 year warranty period, technique support all time |
Certificates | CE, RoHS, FCC, SGS |
Advantage | Filter the dirty water; keep the water clear in tank; lower the frequency of changing water |
