Product Details:
|
| Product: | Two Stage Ultrasonic Cleaner | Material: | Stainless Steel |
|---|---|---|---|
| Washing Step: | Sonic Cleaning And Drying | Ultrawave: | 40khz, (Or 80khz, 28khz,132khz, 68khz Optional） |
| Oil Separator: | With/ Without | Lid: | Hingled Lid With Rubber Seal |
| High Light: | ultrasonic cleaning device,ultrasonic washing machine |
||

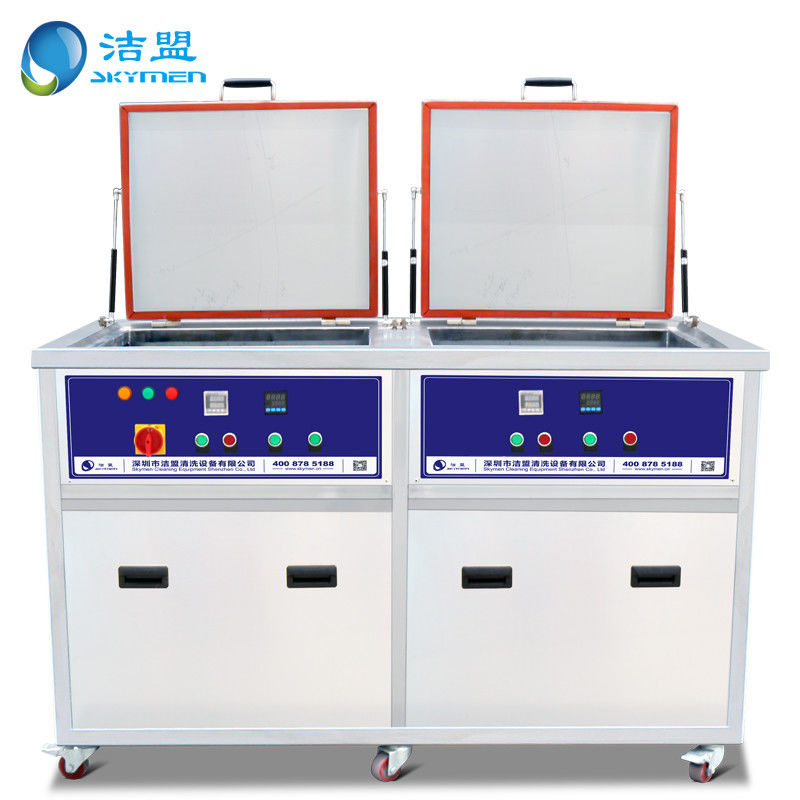

Skymen two steps ultrasonic cleaning system JP-2072G for injection mold cleaning
Product description
Features:
With double tanks for cleaning
Stainless steel tank has resistance to wear and long work life.
0～95℃ temperature range.
With 2 Stainless steel basket
With filtration system, save detergent, more environmentally friendly
Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
With ultrasonic genrator work separately control transducer
Specifications:
| Model | JP-2072G |
| Tank 1# (Ultrasonic cleaning tank) | Tank size:600X500X450mm Material:SUS304/SUS316 Frequency:28Khz/40Khz Ultrasonic power:1800W Heating power:4500W Transducer Number:36PCS |
| Tank 2#(ultrasonic rinsing tank) | Tank size:600X500X450mm Material:SUS304/SUS316 Frequency:28Khz/40Khz Ultrasonic power:1800W Heating power:4500W Transducer Number:36PCS |
| Capacity/tank | 135L/tank |
| Construction Case | SUS304/SUS316 |
| Transducer Number(Total) | 72pcs |
| Temperature range | 0~95℃ adjustable |
| Timer | 1~99h adjuestable |
| Utrasonic power(Total) | 3600W |
| Power supply | AC380V,50/60HZ,3phase |
| Heating power(Total) | 9000W |
| Noise | Below 80dB |
| Working liquid | Water+solvent |
| Drain | 3/4" Valve |
| Basket | Available, material: SUS304 |
Each machine must get QC strict testing before exit factory
High efficiency amazing result
