Product Details:
|
Model: | JP-2288G | First Tank Volume: | 960L |
---|---|---|---|
First Tank Size: | 1200X1000X800mm | Transducers: | 288pcs; 144pcs Of Every Tank |
Ultrasonic Power: | 14400W; 7200W Of Every Tank | Heating Power: | 48000W; 24000W Of Every Tank |
Filtration Cycle System: | Connected With 1st Tank | Frequency: | 28/40KHz |
High Light: | ultrasonic cleaning device,ultrasonic washing machine |

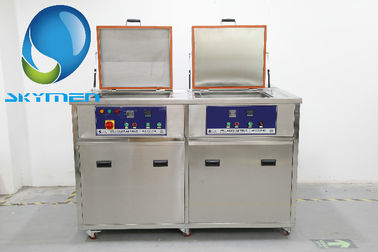

1000L Dual tanks Industrial Ultrasonic Cleaner for boiler, gas stove 28/40KHz with Filter
Same series with different size:
Model | Size of every tank | Tank Volume | Ultrasonic Power |
Heating Power |
Transducer |
L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
JP-2024G | 500X300X250 | 38L*2 | 600W*2 | 1500W*2 | 24pcs |
JP-2036G | 500X350X300 | 53L*2 | 900W*2 | 1500W*2 | 36pcs |
JP-2048G | 550X400X350 | 77L*2 | 1200W*2 | 3000W*2 | 48pcs |
JP-2060G | 550X450X400 | 99L*2 | 1500W*2 | 3000W*2 | 60pcs |
JP-2072G | 600X500X450 | 135L*2 | 1800W*2 | 4500W*2 | 72pcs |
JP-2096G | 700X500X500 | 175L*2 | 2400W*2 | 6000W*2 | 96pcs |
JP-2120G | 800X600X550 | 264L*2 | 3000W*2 | 6000W*2 | 120pcs |
JP-2144G | 1000X600X600 | 360L*2 | 3600W*2 | 9000W*2 | 144pcs |
JP-2216G | 1000X900X600 | 540L*2 | 5400W*2 | 18000W*2 | 216pcs |
JP-2288G | 12000*1000*800 | 960L*2 | 7200W*2 | 24000W*2 | 228pcs |
Specification
Model | JP-2288G |
1st Tank Volume | 960L |
2nd Tank Volume | 960L |
First tank size | 1200X1000X800mm |
Second tank size | 1200X1000X800mm |
Transducers | 288pcs 50W of every transducer, 144pcs of every tank |
Ultrasonic Power | 14400W 7200W of every tank |
Heating Power | 48000W 24000W of evey tank |
Frenquency | 28KHz/40KHz |
Filtration Cycle System | 1 set |
Generator | 4 set |
Unit size | 2850*2150*1250mm |
Packing size | 2910*2210*1370mm |
Timer | 0~99 minutes adjustable |
Heater | Room temperature~99℃ adjustable |
Material | SUS 304 default, can be SUS 316 |
Power Supply | AC 220V 3 phase ; AC 380V 3 phase |
N.W. | 850KG |
G.W. |
930KG Wrapped by film in wooden case |
Lead time | 18 working days |
Warranty | 1 year warranty period, technique support all time |
Certificates | CE, RoHS, FCC, SGS |
Advantage | Filter the dirty water; keep the water clear in tank; lower the frequency of changing water |
Features:
Ultrasonic has excellent cleaning effect, which is far superior to spraying in removing carbon deposits, oil passages and complex parts inside the engine. The pyrochlorine is manually scrubbed with gasoline and diesel. Ultrasonic cleaning has the advantages of simultaneous cleaning inside and outside, so it can be cleaned as a whole and can be solved in a short time.
Ultrasonic cleaning equipment is recognized as the most efficient and most effective cleaning machine in the world. Ultrasonic cleaning equipment is therefore more popular with customers. Whether it is difficult to clean, or spare parts that are difficult to clean and difficult to clean, as long as the correct operation sequence and method are completed, the ultrasonic cleaning equipment can give you a completely new accessory. The ultrasonic cleaning equipment can completely replace the manual and other cleaning methods to complete some difficult cleaning work.
Images:
Clean effect:
Application:
Service line, Electron line, Medical & Surgical instrument, Laboratory, Machine line, Horniness alloy line, Chemistry line.
Industry and mining enterprise, universities, collegesand institutes scientific research unit laboratory; Hospital; Electronic workshop assembly line; Clock and watch eyeglasses shop,jewelry; Jeweler's shop, Family. you will use ultrasonic cleaner for everywhere.
Clean Items: Electronic products, mechanical hardware fitting,eyeglasses, jewelry, clock and watch, coins, fruit and so on. Jewellery, Shaver Heads, Toothbrushes, Waterproof Watches ,Glasses Motor Parts,Ink Cartridges,
Machine Nozzles ,Chiropody Instruments ,Laboratory parts
Coins ,Pen Heads ,Printer Heads ,Printed Circuit Boards Veterinary Instruments
RFQ
Q: How to control the cleaning time?
A: Generally, 3minutes is enough for daily goods clean.
Q: Does ultrasonic cleaner damage the articles?
A: Ultrasonic cleaning is considered safe for most parts; although in some cases it is necessary to observe caution. Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.
Q: What about after-sale service?
A: our company provides 1 Year warranty. If any technical problem during warranty time, replacement parts will be sent free of charge. After warranty time, technical support is also available for every customer.
Q: What kind of cleaning solution should I use?
A: A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the work piece.
