Product Details:
|
| Model: | JP-600G | Tank Volume: | 264L |
|---|---|---|---|
| Ultrasonic Power: | 3000W | Heating Power: | 6000W |
| Frequency: | 40KHz/28KHz | Internal Tank Size: | 800X600X550mm (L*W*H) |
| Filter Cycle System: | 1 Set | Gross Weight: | 270KG |
| High Light: | ultrasonic cleaning device,ultrasonic washing machine |
||

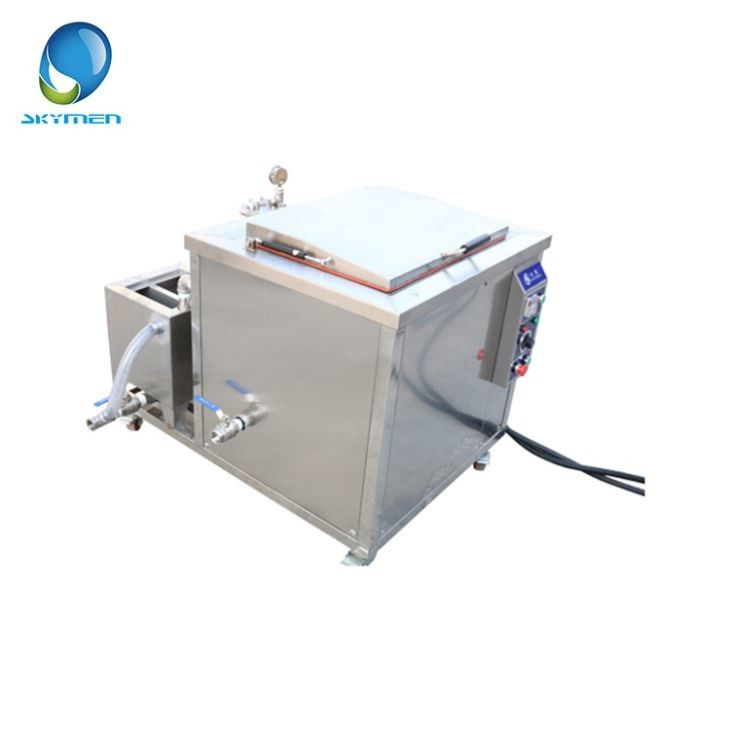

3000W Large Voume 250L Ultrasonic Cleaner for Tyre, Auto Parts 28/40KHz With Filter
Specification
| Model | JP-600G |
| Tank Volume | 264L |
| Internal tank size | 800X600X550mm |
| Transducers | 60pcs 50W of every transducer |
| Ultrasonic Power | 3000W |
| Heating Power | 6000W |
| Frenquency | 28KHz/40KHz |
| Filtration Cycle System | 1 set |
| Generator | 2 set |
| Unit size | 1060*1400*950mm |
| Packing size | 1120*1460*1070mm |
| Timer | 0~99 minutes adjustable |
| Heater | Room temperature~99℃ adjustable |
| Material | SUS 304 default, can be SUS 316 |
| Power Supply | AC 220V 3 phase ; AC 380V 3 phase |
| N.W. | 250KG |
| G.W. | 270KG Wrapped by film in wooden case |
| Lead time | 12 working days |
| Warranty | 1 year warranty period, technique support all time |
| Certificates | CE, RoHS, FCC, SGS |
| Advantage | Filter the dirty water; keep the water clear in tank; lower the frequency of changing water |
Images:
Clean effect:
Same series with different size:
| Model | Tank size | Volume | Ultrasonic Power |
Heating Power |
Transducer |
| L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
| JP-120G | 500X300X250 | 38L | 600W | 1500W | 12pcs |
| JP-180G | 500X350X300 | 53L | 900W | 1500W | 18pcs |
| JP-240G | 550X400X350 | 77L | 1200W | 3000W | 24pcs |
| JP-300G | 550X450X400 | 99L | 1500W | 3000W | 30pcs |
| JP-301G | 800X300X400 | 96L | 1500W | 3000W | 30pcs |
| JP-360G | 600X500X450 | 135L | 1800W | 4500W | 36pcs |
| JP-480G | 700X500X500 | 175L | 2400W | 6000W | 48pcs |
| JP-600G | 800X600X550 | 246L | 3000W | 6000W | 60pcs |
| JP-720G | 1000X600X600 | 360L | 3600W | 9000W | 72pcs |
| JP-1108G | 1000X900X600 | 540L | 5400W | 18000W | 108pcs |
| JP-1144G | 1200X1000X800 | 960L | 7200W | 27000W | 144pcs |
How to Use an Ultrasonic Cleaner for Medical & Surgical Instruments?
Medical and surgical instruments in a variety of sizes and complexity can pose challenges when it comes to cleaning, disinfecting and sterilizing them after use. An ultrasonic cleaner is an ideal tool for the first step in this three step process to protect medical personnel and patients from possible infection due to pathogens that remain on the instruments after a procedure.
FAQ:
Q: What are the advantages of Skymen ultrasonic cleaner over traditional cleaning methods?
A:
1. Minimize the use of manual labor
2. Make cleaning and degreasing without the use of organic solvents
3. Clean hard to reach areas of products and remove all types of dirt
4. Shorten the processes such as extraction, dispersion, purification, chemical reactions
5. Eliminates costly mechanical and chemical cleaning of heat exchangers
Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truck/vessel parts clean (remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.
Q: Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.
Q: What cleaning solution should I use?
A: A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
Q: Is rinsing after cleaning cycles?
A: Rinsing is recommended to remove any chemical residue that could be harmful to the part. Details can be rinsed right in your ultrasonic cleaner or in a clean water bath or in a separate sink tap, distilled or deionized water.
