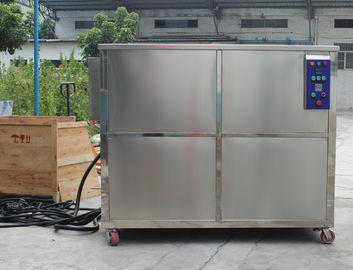

SUS304 / 316L Large Capacity Ultrasonic Cleaner For Industrial Auto Parts

SUS304 / 316L Large Capacity Ultrasonic Cleaner For Industrial Auto Parts
SUS304 / 316L Large Capacity Ultrasonic Cleaner For Industrial Auto Parts SUS304 / 316L Large Capacity Ultrasonic Cleaner For Industrial Auto Parts SUS304 / 316L Large Capacity Ultrasonic Cleaner For Industrial Auto Parts

Large Image :  SUS304 / 316L Large Capacity Ultrasonic Cleaner For Industrial Auto Parts

Product Details:

Place of Origin: China Mainland
Brand Name: skymen
Certification: CE
Model Number: JP-1216ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: US$100-US$10000
Packaging Details: 1pcs / wooden case packing
Delivery Time: 20 work days
Payment Terms: T/T, Western Union
Supply Ability: 300units /month
Price:: nogotiation
Detailed Product Description
Tank Size: 1500*1000*1000 (LxWxH) Ultrasonic Frequency: 28khz/40khz
Ultrasonic Max Power: 10800W Heater: 20 To 80 Adjust
Optional: Oil Filtration System Timer: 1~99 Hours
Heating Power: 36KW, Hot Plate Material: Stainless Steel
High Light:

automotive ultrasonic cleaner

,

ultrasonic washing machine

SUS304 / 316L Large Capacity Ultrasonic Cleaner For Industrial Auto Parts



Ultrasonic Parts Cleaners & Degreasers dramatically lower the cost of your parts cleaning process with a higher degree of efficacy compared to traditional methods

Parts Cleaning with Tovatech’s Ultrasonic Cleaners: Lower Cost, Higher Efficacy

  • Slash your cleaning labor and materials costs
  • Reduce your Work In Process time
  • Deep penetrating cleansing action, powerful yet gentle
  • Far superior to hand cleaning
  • Clean difficult to reach areas like small blind holes, joints, threads, cavities, and crevices
  • Thoroughly clean all hard surfaces: metal, plastic, glass
  • Use environmentally safe cleaning fluids

SUS304 / 316L Large Capacity Ultrasonic Cleaner For Industrial Auto Parts 0



Specification:



Ultrasonic cleaning machine :



Model JP-1216ST
Ultrasonic Tank Dimension(mm) 1500*1000*1000
Ovel all dimension(mm) 1750*1300*1500
Max. Capacity 77L/tank
Construction Case SUS304 (Mirror shining image available)
Construnction Tank SUS304
Transducer Number 216 pcs
Ultrasonic power(Max.) 10800W
Ultrasonic frequency 40kHz
Temperature range ~99C adjustable
Heating power 3KW
Timer 1~99h
Drain 3/4" Valve
Lid & Basket Available, material: SUS304
Cleaning Tank voltage AC220V/AC380V 3phase
Generator Voltage AC110V / 220V 1phase
Features For large indsutrial parts cleaning ;
Multi-direction castors with brake;




JTS-1216ST Specifications:

  1. Adjustable ultrasonic power
  2. With digital timer and heater;easy to operate
  3. SUS304/316L tank
  4. Original BLT type transducer
  5. Adaptable for continuous operation
  6. Adjustable thermo controller
  7. Adjustable ultrasonic power
  8. With separate control ultrasonic electronic generator
  9. Sweep mode control available
  10. Digital timer control
  11. Boost mode& oil skimmer upon client’s requirement



How is ultrasonic cleaner work ?

Cavitation, the collapse of millions of tiny bubbles created by ultrasonic vibrations, releases high energy and enormous cleaning power. This cleaning action gently and thoroughly removes dirt, oil, and contaminants from every surface in contact with the cleaning fluid. Because the liquid can penetrate into very small crevices, ultrasonic cleaning can clean intricate items that cannot be cleaned by hand.



Traditional parts cleaning or degreasing in the machine shop or the factory floor is a time consuming, labor intensive process that relies on a mixture of solvents, chemicals, and mechanical scrubbing action to remove dirt, grease, cutting and lubricating fluids, rust, salt deposits, polishing pastes, oil, loose burrs, and lapping abrasives from parts. These traditional cleaning methods have a dramatic impact on the overall cost of the maintenance, refurbishment, or manufacturing process.

Ultrasonic Cleaning is an elegant method to ensure your cleaning costs are brought down to manageable levels in these hyper-competitive, margin squeezed days. Ultrasonic cleaners work on the principle of agitating a suitable cleaning solution with high frequency ultrasonic waves that create thousands of tiny cavitation bubbles. These bubbles implode releasing a great deal of energy which in turn dislodges dirt and contaminants from any surface in contact with the liquid.





Ultrasonic works is also suitable for :

Ultrasonic Auto Parts Cleaner

Ultrasonic Surgical Instrument & Medical Cleaner

Ultrasonic Aircraft Parts (Aerospace) Cleaner

Ultrasonic Semiconductor Cleaner

Ultrasonic Jewelry Cleaner

Ultrasonic Solar Cleaner

Ultrasonic Hard Disk Drive Cleaner

Ultrasonic Industrial Cleaner

Ultrasonic Circuit Cleaner

Ultrasonic Ceramics Cleaner

Ultrasonic Lens & Eyeglass Cleaner

Ultrasonic Tungsten Carbide Cleaner

Ultrasonic Plastics Cleaner

Ultrasonic Oil & Gas Refinery Equipment Cleaner

Ultrasonic Gun & Case Cleaner

Ultrasonic Bike Cleaner

Ultrasonic Musical Instrument Cleaner

Ultrasonic Dental Cleaner

Ultrasonic Coin Cleaner

Glass ware

Chemical dust,



Package



Packing , loading, delivery time

Packing unit

1set / wooden case

Packing method

Export wooden case

Loading port

Shenzhen / Hongkong

Delivery time

About 20 working days

Minimum Order Quantity

1set

Transport method

By express company / air / sea

 SUS304 / 316L Large Capacity Ultrasonic Cleaner For Industrial Auto Parts 1


 Detailes

Before and after:



Rust romove



SUS304 / 316L Large Capacity Ultrasonic Cleaner For Industrial Auto Parts 2

Dust and oil remove



SUS304 / 316L Large Capacity Ultrasonic Cleaner For Industrial Auto Parts 3
