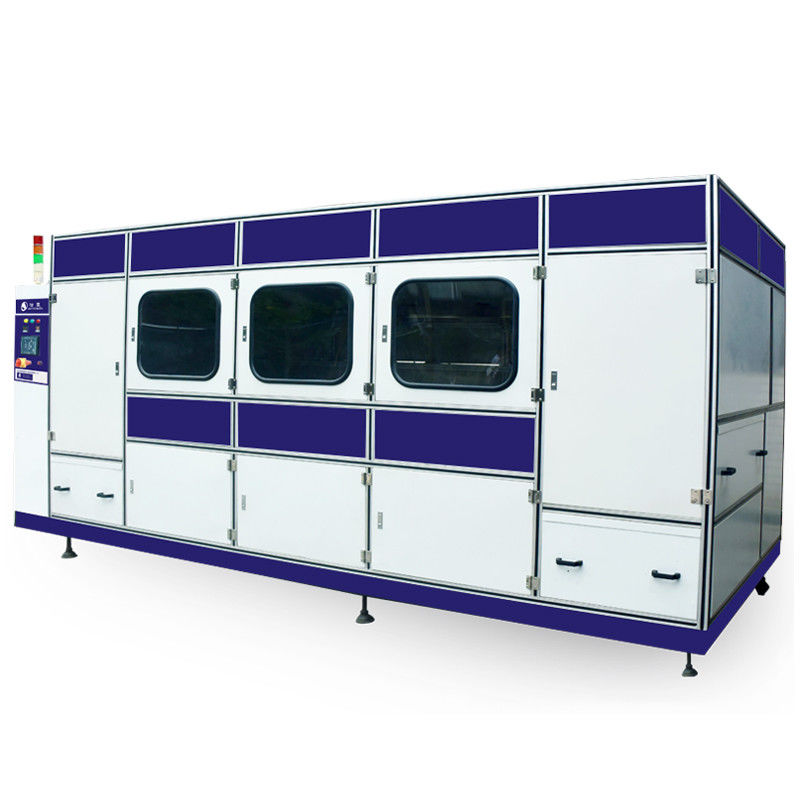

Hot Air Drying 1800W Automated Ultrasonic Cleaner SUS316 For Every Industry

large.img.alt
large.img.alt
video play

Large Image :  Hot Air Drying 1800W Automated Ultrasonic Cleaner SUS316 For Every Industry

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JTM-3036AD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 28 working days after payment
Payment Terms: T/T
Supply Ability: 800 pcs per month
Detailed Product Description
Working Way: Automated 1st Stage: Ultarsonic Cleaning
2nd Stage: Ultrasonic Rinsing 3rd Stage: Hot Air Drying
Item Movement: By Mechanical Arm Ultrasonic Power: 1800W
High Light:

Hot Air Drying Automated Ultrasonic Cleaner

,

1800W Automated Ultrasonic Cleaner

,

SUS316 Ultrasonic Instrument Cleaner

Automated Ultrasonic Cleaners & Washers for Every Industry With CE

This system is perfectly suited to cleanroom and pharmaceutical applications and is an option for any of Skymen’s multi-stage consoles. Batch transfer and lifting are performed using optically-encoded motors for excellent position accuracy.



Advange:

  1. Easy to keep clean and maintain for high purity applications. Available with cove-corner cleaning tanks and other high-precision system features.
  2. Large variety of options to customize to your specific requirements or convenience
  3. Moves one batch of product at a time and includes agitation in each liquid tank to improve performance
  4. Industrial, and precision machine designs. We have models designed for pharmaceutical parts cleaning to heavy duty industrial cleaning applications.
  5. Includes crash protection to prevent damage to parts.

Equipment structure

This equipment is mainly composed of: filtration system, PLC control system, stainless steel cleaning tank, customized cleaning basket, drying system, single-arm manipulator system, bubbling system, loading and unloading table, etc.



Specification sheet:

1
Model
JTM-3036AD
2
1st Chamber

Function
Ultrasonic cleaning + Filter+ Hot water cleaning
Ultrasonic Frequency
28/40kHz (other frequency can be customized)
Tank Material
SUS 304 (SUS316 can be customized)
Thickness of tank 2mm
Inner tank dimension
500*350*300mm
Tank Capacity
53L
Transducer
18pcs
Ultrasonic Power
900W
Heating Power
1500W
Time setting of Ultrasonic
0~99 hours
Temperature setting
Room temperature ~ 95°C adjustable
Drain value
Yes
Water inlet/outlet
Yes
Filter
1 set, connect with 1st tank
Size of filter tank 400*300*250mm
Filtet element precision 5/10μ
Generator
1pcs
Generator power control 900W
Basket Yes
Basket load
150KG
3 2nd Chamber Function Ultrasonic cleaning + Bubbling + Hot water cleaning
Ultrasonic Frequency 28/40kHz (other frequency can be customized)
Tank Material SUS 304 (SUS 316 can be customized)
Thickness of tank 2mm
Inner tank dimension 500*350*300mm
Tank Capacity 53L
Transducer 18pcs
Ultrasonic Power 900W
Heating Power 1500W
Time setting of Ultrasonic 0~99 hours
Temperature setting Room temperature ~ 95°C adjustable
Drain value
Yes
Water inlet/outlet
Yes
Bubbling system Yes, air compressor is provided by user
Generator 1pcs
Generator power control 900W
Basket Yes
Basket load 150KG
3
3rd Chamber
Function
Hot air drying tank
Inner tank dimension
500*350*300mm
Turbines power
750W
Dryer power
3000W
4 Working way of machine Working way Full automatic
Loading and unloding platform Yes
Moving way of basket By mechanical arm
Control way

PLC touch screen

5

Warranty
1 year warranty for spare parts, all life technical support
6
Certificate
CE, RoHS; FCC, REACH
7
Production time
35 working days after deposit


Cleaning process: (cleaning direction: from left to right)

Hot Air Drying 1800W Automated Ultrasonic Cleaner SUS316 For Every Industry 0

Working way

The entire process of putting the basket into the cleaning tank, removing the basket and moving the basket between the tanks is automatically completed by a single-arm manipulator. This ultrasonic cleaning machine has a total of 3 working tanks, plus 1 loading and unloading station, a total of 4 stations .



Same series with different size for your choice:

Model Size of every tank Tank Volume Ultrasonic
Power
Heating Power of Ultrasonic tank Heating Power of drying tank Transducer
L*W*H (mm) (L) (W) (W) 750W (pcs)
JTM-3024AD 500X300X250 38L*3 600W 1500W*2 750W 24pcs
JTM-3036AD 500X350X300 53L*3 900W 1500W*2 750W 36pcs
JTM-3048AD 550X400X350 77L*3 1200W 3000W*2 750W 48pcs
JTM-3060AD 550X450X400 99L*3 1500W 3000W*2 750W 60pcs
JTM-3072AD 600X500X450 135L*3 1800W 4500W*2 750W 72pcs
JTM-3096AD 700X500X500 175L*3 2400W 6000W*2 750W 96pcs
JTM-3120AD 800X600X550 264L*3 3000W 6000W*2 750W 120pcs
JTM-3144AD 1000X600X600

360L*3

3600W 9000W*2 750W 144pcs
JTM-3216AD 1000X900X600 540L*3 5400W 18000W*2 1100W 216pcs
JTM-3288AD 12000*1000*800  960L*3  7200W 24000W*2 1500W 288pcs
