Product Details:
|
Tank Material: | SUS304 | Tank Capacty: | Each 360L |
---|---|---|---|
Each Tank Size: | 1000*600*600mm | Ultrasonic Power: | 3600W |
Clean Heating Power: | 9000W | Dry Tank Heating Power: | 4500W |
Highlight: | automotive ultrasonic cleaner,ultrasonic washing machine |
Twin tank 28khz ultrasonic cleaner for aircrafts parts marine engine fuel systems pump parts with clean and dry tank
Composition of this machine:
1st tank: Ultrasonic cleaning + hot water + filtration cycyle system
2nd tank: Hot air drying tank
Ultrasonic Cleaner's Function:
Ultrasonic Cleaner's Model and Specification
Model | JP-2024GH | JP-2036GH | JP-2072GH |
Clean tank size | 550*400*350 | 600*500*450 | 1000*600*600 |
Dry tank size | 550*400*350 | 600*500*450 | 1000*600*600 |
Tank capacity | 77L each | 135L each | 360L each |
Transducers | 24 | 36 | 72 |
Clean tank Ultrasonic power | 1200W | 2400W | 3600W |
Dry tank Ultrasonic power | 0 | 0 | 0 |
Clean tank Heating power | 3000W | 4500W | 9000W |
Dry tank Heating power | 2600W | 3000W | 4500W |
Ultrasonic frequency | 28KHZ/40KHZ | ||
Tank material | 304/316SUS | ||
Tank thickness | 2MM | ||
Timer | 1S-99hours adjustable/Normally open | ||
Heater | 20-95℃ adjustable | ||
Drain valve | 1 inch | ||
Basket & Lid | standard equipped | ||
Machine Voltage | AC 220V/380V, 3phases | ||
Generator voltage | AC 110V/220V, 1phase | ||
Features |
1.with filtration system 2.with casters with brake 3.1 year warranty & tech support for life |

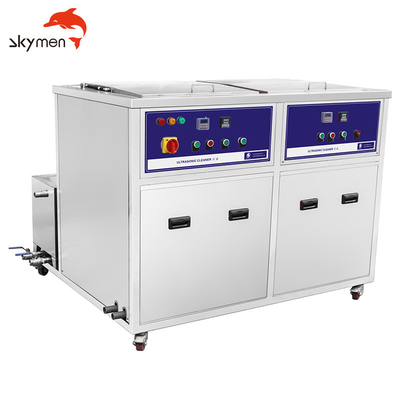

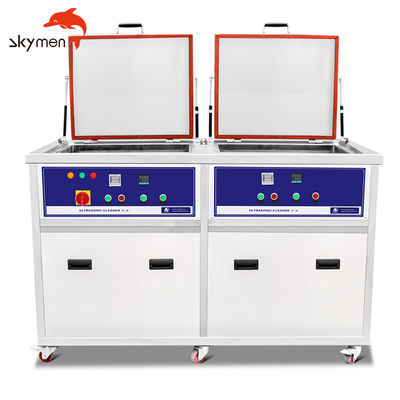

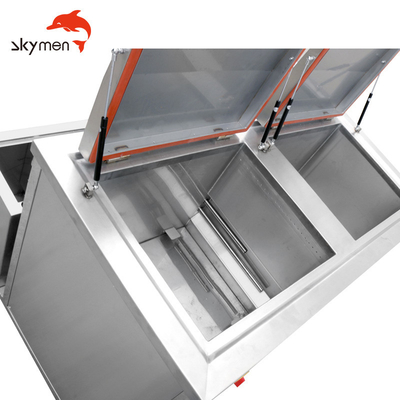

Ultrasonic Cleaner's Picture:
At the back of the machine, there will be a filter added. This filter protect you from pollution. Saving water and cost.
Before and after of using ultrasonic cleaner: (Ultrasonic Cleaner's Engine: To removed oil )
Remove Rust
Our advantages:
1. We are direct manufacturer factory, have ability of mass production.
2. With R&D department, ensure our own technological and innovative products.
3. We have our own brand SKYMEN and do OEM & ODM for distributors.
4. Different capacity is available, 0.6liter ~30liter, 38liter ~5000liter,etc.Include mini household model, bentchtop model, industrial large tank with casters model and submersible transducer pack system.
5. Material for plastic model is stainless steel 304 & ABS, Material for stainless steel model is Stainless steel 304/316
6. CE, RoHS, FCC, C-Tick.
7. 1 year warranty for all goods.
Quality control:
1. Raw Material Inspection:
QC and engineers would make strict inspection of the raw material step by step to ensure quality product.
2. Sales checking:
We salesman would also check the production process to ensure machine 100% according to the sample
3. 100% product inspection:
100% products checking during production, Standard unit would be under testing at least 4hours, customized machine will test at least 2 days before delivery.
4. We always try to do perfect:
Everyone in Skymen would try best to solve problems together with you.
Logosit &Transportation service
Samples are shipped by DHL,UPS.FEDEX,EMS TNT. We will choose the fast & reliable way for delivery.
Save on shipping and safer on delivery when you purchase more than one item.
