Product Details:
|
Model: | JTS-1060 | Material: | Stainless Steel SUS304/316L |
---|---|---|---|
Use: | Cleaning , Degreasing | Control: | Separate Generator |
Tank Capacity: | 300L | Special: | Printer Ink Cleaned |
Ultrasonic Frequency: | 28khz/40khz | Ultrasonic Power: | 3000W |
Power: | Adjustable Ultrasonic Power | Transducer: | 60pcs |
Heating Power: | 9kW | Application: | Part Tool Cleaning |
Optional: | Filtration System | Other: | With Sus Basket |
High Light: | dual frequency ultrasonic cleaner,ultrasonic cleaning unit |

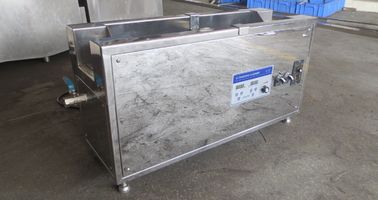

Ultrasonic Cleaner With Filtering System For Printer Ink Cleaned
Why is Ultrasonic Cleaning so Efficient and Effect
When cavitation happens near a dirty object, the vacuum action produced by those million of bubbles constantly imploding creates a tiny pressure wave that reaches deep into every nook and cranny of even the most delicate items. This tiny pressure wave dislodges and breaks up the dirt and other contaminants and gently lifts it away. The result is very fast and effective cleaning.
Why Clean Parts with Ultrasonics
Delivering and using clean parts is not always obvious. Certainly, no one wants to handle a dirty part or install it into a critical machine, but dirt, debris and contaminants can cause problems for manufacturers and end users. From the merely frustrating to catastrophic, dirty parts can cause critical components to exceed tolerances and even fail damaging valuable equipment and property while contamination (everything from grease, oil and chemicals to viruses and bacteria) can seriously harm users.
Ultrasonic cleaning effect
Applications:
Skymen Dual frequency ultrasonic cleaner can be use for car parts washing, engine block degrease, radiator
clean, also can clean electronic parts. No damage to object surface and improve cleaning efficiency.
Specifications:
Model |
JTS-1060 |
Tank’s working dimension (mm) |
700*650*650(L*W*H) |
Overall dimension (mm) |
900*850*1000(L*W*H) |
Tank’s total capacity |
300L |
Tank’s material |
SUS304 / SUS316 |
In-tank surface finishing |
Hard-Cr Plating Treatment ( 20+ microns ) |
Housing’s material |
Stainless steel |
Ultrasonic frequency |
28kHz / 40kHz |
Ultrasonic transducer |
60pcs |
Ultrasonic output power (MAX.) |
3000W |
Electronic generator |
KG3000 |
Heater’s (hot plate) power |
9KW |
Ideal to clean rust,carbon,pait,heavy oil,fruit agricultural chemicals and other things hard to clean, without damage to parts inside tank.
Functions:
1st tank work as ultrasonic cleaning;
2nd work as drying parts after cleaning.
JTM series ultrasonic cleaner equipment system includes single-tank, two-tank,three-tank,four-tank ultrasonic cleaner machine.Specification of tank dimension are custom made available.Either for big mould or small parts cleaning can receive perfect cleaning efficiency. Stainless steel basket is optional.
Product Description
Model: Skymen™ |
JTS-1012 |
JTS-1018 |
JTS-1024 |
JTS-1030 |
JTS-1036 |
JTS-1072 |
|||
TANK'S WORKING DIMENSION (mm) |
L1 |
355 |
406 |
500 |
500 |
500 |
1110 |
||
W1 |
305 |
305 |
355 |
406 |
460 |
600 |
|||
H1 |
355 |
460 |
500 |
500 |
550 |
600 |
|||
OVERALL DIMENSION (mm) |
L2 |
535 |
586 |
680 |
710 |
710 |
1320 |
||
W2 |
485 |
485 |
535 |
586 |
640 |
780 |
|||
H2 |
750 |
680 |
720 |
720 |
770 |
820 |
|||
TANK'S TOTAL CAPACITY |
38L |
56L |
88L |
101L |
126L |
369L |
|||
TANK'S MATERIAL |
SUS304 / SUS316L |
||||||||
IN-TANK SURFACE FINISHING |
Hard-Cr Plating Treatment ( 20+ microns ) |
||||||||
HOUSING'S MATERIAL |
Stainless steel |
||||||||
ULTRASONIC FREQUENCY* |
28kHz / 40kHz |
||||||||
ULTRASONIC TRANSDUCER |
12 |
18 |
24 |
30 |
36 |
72 |
|||
ULTRASONIC OUTPUT POWER (MAX.) |
600W |
900W |
1200W |
1500W |
1800W |
3600W |
|||
ELECTRONIC GENERATOR |
KG600 |
KG900 |
KG1200 |
KG1500 |
KG1800 |
KG3600 |
|||
Build-in |
Separate |
||||||||
HEATER'S (HOT PLATE) POWER |
1.5kW |
3kW |
4.5kW |
9KW |
SKYMEN specifically designed to clean the internals and externals of a ultrasonic cleaning machines are used by many manufacturers to clean injection moulds, dies and tools.
About Skymen
SKYMEN, a leading manufacturer of ultrasonic cleaner, with the goal of “To pursue top quality, to make our world clean and life health.’’ , has been developing ultrasonic cleaning technology since 2007, sells its ultrasonic products in Europe, China , United States of America, all over the world. Thanks to its expertise in production of ultrasonic cleaner, the company’s products are well received in those markets.
For more than ten years SKYMEN has been developing a wide range ultrasonic cleaner, included household ultrasonic cleaner for beauty shop, table top ultrasonic cleaner for medical industry, science and lab, university, government military firearm gun cleaning, 3D printing, electronic circuit cleaning, dental clinics and tattoos instrument cleaning and sterilization; industrial ultrasonic cleaner for auto repair , diesel workshop, automotive industry, marin industry, restoration after fire disaster, machining industry, manufacturing industry, diamond jewelry industry coin cleaning, brass part, metal part, aluminum part cleaning.
