Product Details:
|
| Control: | Separate Generator | Tank Capacity: | 300L |
|---|---|---|---|
| Ultrasonic Frequency: | 28khz/40khz | Ultrasonic Power: | 3000W |
| Transducer: | 60pcs | Heating Power: | 9kW |
| Application: | Ultrasonic Parts Washer | Optional: | Filtration System |
| High Light: | dual frequency ultrasonic cleaner,ultrasonic washing machine |
||

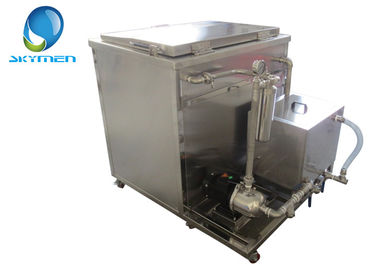

40khz 360L Industrial ultrasonic parts washers Brass Cleaning
The machine is customized and certified with CE.
Large Capacity for industrial part ,engine block ,blind , golf club ,tyre cleaning
Brass cleaning effect of ultrasonic parts washer
Applications ultrasonic parts washer:
Skymen Dual frequency ultrasonic cleaner can be use for car parts washing, engine block degrease, radiator
clean, also can clean electronic parts. No damage to object surface and improve cleaning efficiency.
Specifications 300L ultrasonic parts washer:
|
Model |
JTS-1060 |
|
Tank’s working dimension (mm) |
700*650*650(L*W*H) |
|
Overall dimension (mm) |
900*850*1000(L*W*H) |
|
Tank’s total capacity |
300L |
|
Tank’s material |
SUS304 / SUS316 |
|
In-tank surface finishing |
Hard-Cr Plating Treatment ( 20+ microns ) |
|
Housing’s material |
Stainless steel |
|
Ultrasonic frequency |
28kHz / 40kHz |
|
Ultrasonic transducer |
60pcs |
|
Ultrasonic output power (MAX.) |
3000W |
|
Electronic generator |
KG3000 |
|
Heater’s (hot plate) power |
9KW |
Ideal to clean rust,carbon,pait,heavy oil,fruit agricultural chemicals and other things hard to clean, without damage to parts inside tank.
Specification details of ultrasonic parts washer
as follows:
1st ultrasonic tank: installed with ultrasonic cleaning transducers to operate cleaning process by ultrasonic transducer vibration.
2nd Rinsing tank: It has a continues supply of water by supplying water from the bottom, and dirty liquid flow away from the surface of the liquid.
Product Description of ultrasonic parts washer
|
Model: Skymen |
JTS-1012 |
JTS-1018 |
JTS-1024 |
JTS-1030 |
JTS-1036 |
JTS-1072 |
|||
|
TANK'S WORKING DIMENSION (mm) |
L1 |
355 |
406 |
500 |
500 |
500 |
1110 |
||
|
W1 |
305 |
305 |
355 |
406 |
460 |
600 |
|||
|
H1 |
355 |
460 |
500 |
500 |
550 |
600 |
|||
|
OVERALL DIMENSION (mm) |
L2 |
535 |
586 |
680 |
710 |
710 |
1320 |
||
|
W2 |
485 |
485 |
535 |
586 |
640 |
780 |
|||
|
H2 |
750 |
680 |
720 |
720 |
770 |
820 |
|||
|
TANK'S TOTAL CAPACITY |
38L |
56L |
88L |
101L |
126L |
369L |
|||
|
TANK'S MATERIAL |
SUS304 / SUS316L |
||||||||
|
IN-TANK SURFACE FINISHING |
Hard-Cr Plating Treatment ( 20+ microns ) |
||||||||
|
HOUSING'S MATERIAL |
Stainless steel |
||||||||
|
ULTRASONIC FREQUENCY* |
28kHz / 40kHz |
||||||||
|
ULTRASONIC TRANSDUCER |
12 |
18 |
24 |
30 |
36 |
72 |
|||
|
ULTRASONIC OUTPUT POWER (MAX.) |
600W |
900W |
1200W |
1500W |
1800W |
3600W |
|||
|
ELECTRONIC GENERATOR |
KG600 |
KG900 |
KG1200 |
KG1500 |
KG1800 |
KG3600 |
|||
|
Build-in |
Separate |
||||||||
|
HEATER'S (HOT PLATE) POWER |
1.5kW |
3kW |
4.5kW |
9KW |
|||||
Package of ultrasonic parts washer:
|
Packing , loading, delivery time |
|
|
Packing unit |
1set/wooden case |
|
Packing method |
Export wooden case |
|
Loading port |
Shenzhen |
|
Delivery time |
About 15 working days |
|
Minimum Order Quantity |
1set |
|
Transport method |
By express company / air / sea |
FAQ
1. How about after sales services of ultrasonic parts washer?
1 Year warranty for Forall ultrasonic cleaner.
If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
2. What are the advantages of ultrasound over traditional cleaning methods?
minimize the use of manual labor
make cleaning and degreasing without the use of organic solvents
clean hard to reach areas of products and remove all types of dirt
shorten the processes such as extraction, dispersion, purification, chemical reactions
eliminates costly mechanical and chemical cleaning of heat exchangers
