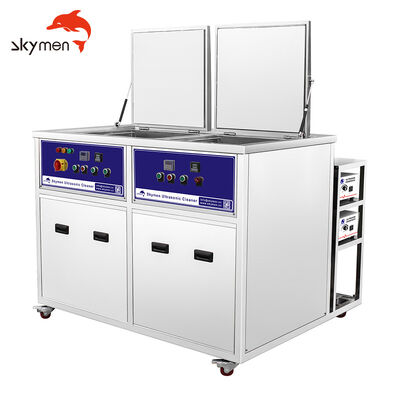

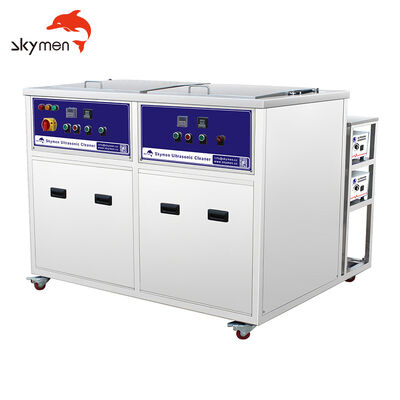

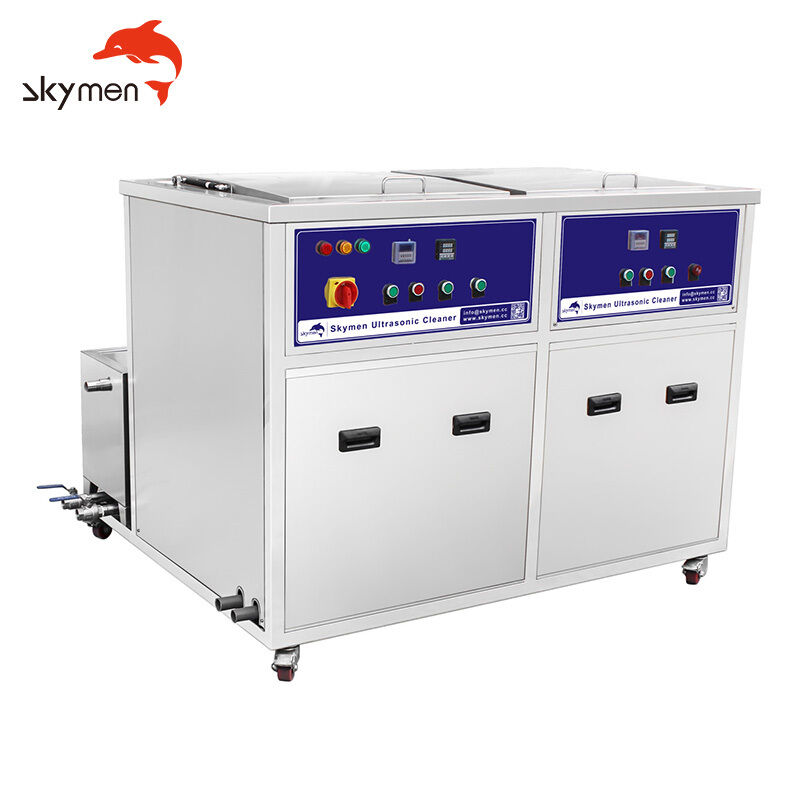

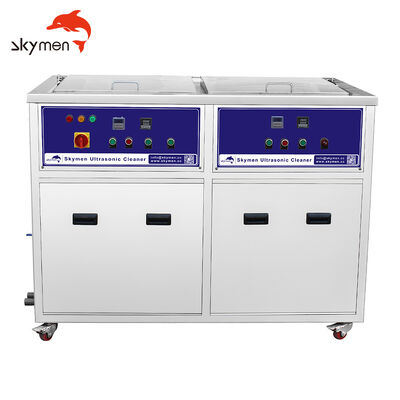

Double-Tank Ultrasonic Parts Washer with Filtration and Spray Cleaning
Product Overview
This advanced double-tank industrial parts washer combines powerful ultrasonic cleaning with high-pressure spray technology. The first tank utilizes ultrasonic cleaning with an integrated filtration system that continuously removes contaminants and recycles the cleaning solution, significantly reducing water and detergent consumption. The second tank employs a high-pressure spray cleaning system to remove residual contaminants and cleaning agents, ensuring superior cleanliness levels before subsequent production processes.
Key Features

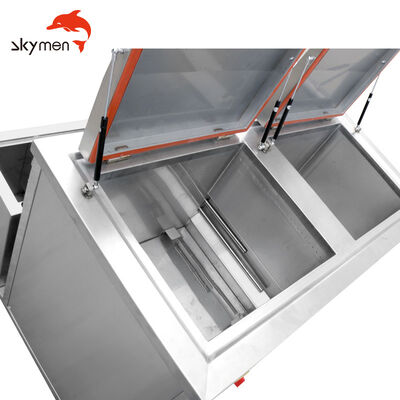

- First Tank: Ultrasonic cleaning with integrated filtration system
- Second Tank: High-pressure spray cleaning system
- Constructed from high-quality SUS304 stainless steel

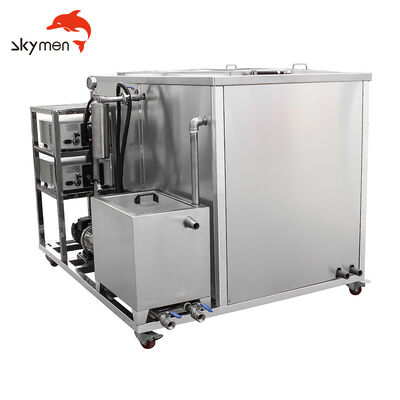

- Filtration system extends solution life and reduces operating costs
- Water and detergent savings through solution recycling
- Effectively removes oil, grease, dust, and machining residues
- Improves cleaning consistency and production efficiency
- Customizable tank sizes, frequencies, and spray systems
Product Visualization
Technical Specifications
| Model |
Frequency (KHz) |
Capacity (L) |
Inner Tank Size (mm) |
Transducer |
Ultrasonic Power (W) |
Heating Power (W) |
Timer (H) |
Temperature Control (°C) |
| JTM-2024GP | 28/40 | 38 | 500*300*250 | 24 | 0-1200 | 1500 | 0-99 | RT-95 |
| JTM-2036GP | 28/40 | 53 | 500*350*300 | 36 | 0-1800 | 1500 | 0-99 | RT-95 |
| JTM-2048GP | 28/40 | 77 | 550*400*350 | 48 | 0-2400 | 3000 | 0-99 | RT-95 |
| JTM-2060GP | 28/40 | 99 | 550*450*400 | 60 | 0-3000 | 3000 | 0-99 | RT-95 |
| JTM-2062GP | 28/40 | 96 | 800*300*400 | 60 | 0-3000 | 3000 | 0-99 | RT-95 |
| JTM-2072GP | 28/40 | 135 | 600*500*450 | 72 | 0-3600 | 4500 | 0-99 | RT-95 |
| JTM-2096GP | 28/40 | 175 | 700*500*500 | 96 | 0-4800 | 6000 | 0-99 | RT-95 |
| JTM-2120GP | 28/40 | 264 | 800*600*550 | 120 | 0-6000 | 6000 | 0-99 | RT-95 |
| JTM-2144GP | 28/40 | 360 | 1000*600*600 | 144 | 0-7200 | 9000 | 0-99 | RT-95 |
| JTM-2168GP | 28/40 | 420 | 1500*700*400 | 168 | 0-8400 | 15000 | 0-99 | RT-95 |
| JTM-2192GP | 28/40 | 480 | 1200*500*800 | 192 | 0-9600 | 15000 | 0-99 | RT-95 |
| JTM-2216GP | 28/40 | 540 | 1000*900*600 | 216 | 0-10800 | 18000 | 0-99 | RT-95 |
| JTM-2240GP | 28/40 | 640 | 1000*800*800 | 240 | 0-12000 | 21000 | 0-99 | RT-95 |
| JTM-2264GP | 28/40 | 800 | 1000*1000*800 | 264 | 0-13200 | 24000 | 0-99 | RT-95 |
| JTM-2288GP | 28/40 | 960 | 1200*1000*800 | 288 | 0-14400 | 27000 | 0-99 | RT-95 |
| JTM-2432GP | 28/40 | 1500 | 1500*1000*1000 | 432 | 0-21600 | 27000 | 0-99 | RT-95 |
Cleaning Performance
Manufacturer Profile
Founded in 2007, Skymen is a National High-Tech Enterprise specializing in research, development, engineering, manufacturing, and sales of industrial cleaning systems. Our comprehensive technology portfolio includes ultrasonic cleaning, megasonic cleaning, vacuum hydrocarbon cleaning, high-pressure spray cleaning, wet cleaning, and plasma surface treatment. With over 18 years of industry experience, more than 350 skilled employees, and a modern 35,000 square meter production facility, we provide both standardized equipment and customized cleaning solutions for manufacturing industries with demanding cleanliness and process consistency requirements.
Frequently Asked Questions
Why combine ultrasonic cleaning and spraying?
Ultrasonic cleaning effectively removes contaminants from complex surfaces and hard-to-reach areas, while spray cleaning rinses away residual particles and cleaning agents, delivering superior overall cleaning results.
What is the function of the filtration system?
The filtration system continuously removes contaminants from the cleaning solution, allowing it to be reused multiple times. This significantly reduces water and detergent consumption while maintaining cleaning effectiveness.
What industries is this machine suitable for?
This equipment is widely used across multiple industries including automotive, aerospace, electronics, hardware, medical devices, and precision manufacturing where high cleanliness standards are essential.
Can the spray pressure be customized?
Yes. The spray system can be fully customized according to specific workpiece dimensions, materials, and cleaning requirements to ensure optimal performance for your application.
What warranty does the machine include?
The machine comes with a comprehensive 1-year warranty and lifetime technical support. Free replacement parts are provided for any quality-related issues during the warranty period.
