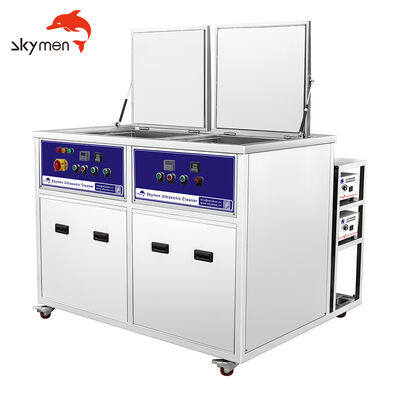

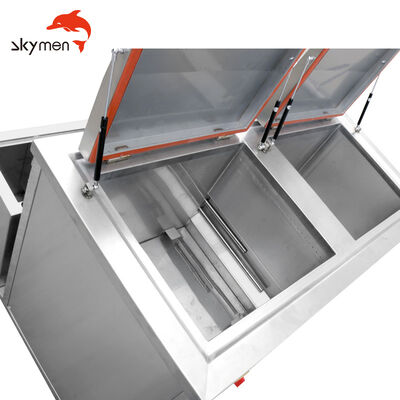

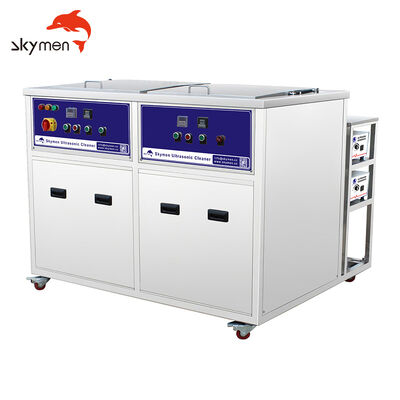

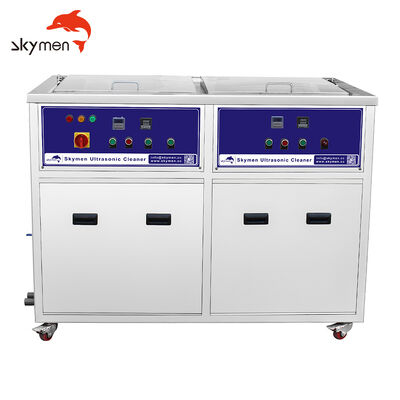

Jp-2060h 300L Double Tank Car Wheel Cleaner Industrial Ultrasonic Cleaning Machine Washing with Drying

1	Model No.	JP-2060H
2	Image
3	Ultrasonic model	Ultrasonic Frequency	40 kHz
		Material	Stainless Steel SUS304
		Tank Capacity	264L for each
		Timer	1~99hours adjustable
		Heater	20°C to 95°C adjustable
		Degas	Yes
		Semiwave	Yes
		Power Supply	AC 100 ~ 120V, 50 / 60Hz
			AC 220 ~ 240V, 50 / 60 Hz
		Ultrasonic Power	3000 W
		Heating Power	3000 W*2
		Basket& cover	Standard equiped
4	Packing	Tank Size	800*600*550mm ( L x W x H )
		Unit Size	2130*860*1150mm  ( L x W x H )
		Package Size	2190*920*1270mm(L*W*H)
		G.W.	279kg
		Warranty	1 year
5	Features.	1. stainless steel tank has resistance to wear and long work life. 2. with cleaning and drying stsyem, 3. with stainless steel basket and cover. 4. use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement 5.ultrasonic cleaning solutions penetrate virtually any soil type including: oils, residues, solvents, pastes and chemicals and other contaminants are safely lifted and dispersed, leaving a surface appearance that is clean and free of particulate; even in crevasses and internal bores.
6	Application.	medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university lab, hardware tools shop.
7	Certificates	CE/ROHS/FCC/PSE/ISO9001

JP tank dimension and transducers are custom made available.
Technical data:
each tank is custom made size and accessory.
two-tank can be one ultrasonic cleaning tank and one drying
tank, for clean and then dry your parts.

Features:
Adjustable ultrasonic power
Original BLT type transducer
SUS 304/316L stainless steel tank
Adaptable for continuous operation
Adjustable thermo controller
Adjustable ultrasonic power
With separate control ultrasonic electronic generator

Functions:
1st  tank work as ultrasonic cleaning;
2nd work as drying parts after cleaning.
JP series ultrasonic cleaner equipment system includes single-tank, two-tank,three-tank,four-tank ultrasonic cleaner machine.Specification of tank dimension are custom made available.Either for big mould or small parts cleaning can receive perfect cleaning efficiency. Stainless steel basket is optional.

Application:
-Scientific Labs:Eyeglass Frames;Lab Glassware;Optical&Contact Lenses;Pipettesscientific Instruments;Test tubes
-Industrial Manufacturing:Assemblies;Gears;Metal&Plastic Parts;Precision Bearings
-Electronic manufacturing:Capacitors;Ceramic Substrates;PC Boards;Packaging Components;Quartz Crystals
-Medical and Dental Lab:Burs;Blood Oxygenators;Dental Instruments;Syringe Parts;Surgical Instruments
-Jewelry Manufacturing:Chains;Charms;Coins;Intricate Settings;Precious Metals&Gemstones;Watches

If your company has other needs, you can choose the size that suits you according to the chart below

Q: How Does Ultrasonic Cleaning Work?

A: Dirty items come clean in ultrasonic cleaning systems when millions of superheated bubbles scrub grime and oxidation away with stunning results. How? Through the process of de-cavitation.
    Ultrasonic cleaning systems send high frequency sound waves ripping through an ultrasonic cleaning solution leaving superheated bubbles in the waves' wake. When these bubbles, called cavitatons, collapse, called decavitation, the heat and energy of their implosions work with the specially formulated ultrasonic cleaning solution to remove dirt, oils, residue and oxidation from the surface of the contaminated item.
    Imagine the ability to get into the tiniest of nooks and crannies where dirt and grime hide, and then imagine scrubbing that surface ultra clean. With conventional cleaning - brushes, rags and elbow grease - this task seems impossible. But the cavitating cleaning action of an ultrasonic cleaning system does just that - It goes where brush bristles can't.

Q: What Are The Components for Ultrasonic Cavitation and Cleaning?

A: Ultrasonic waves, heat and an ultrasonic cleaning solution are the three components at the heart of an ultrasonic cleaning system. Ultrasonic waves sonically cavitate and heat the ultrasonic cleaning solution, causing these three components work together creating an environment where dirt, grime and oxidation melt away from a dirty surface.
    When the three components, ultrasonic waves, heat and ultrasonic cleaning solutions come together, ultrasonic cleaning produces jaw-dropping results. Ultrasonic cleaning is simply a superior form of cleaning that replaces hours of intensive labor and inferior cleaning results, and removes the need for flammable solvents.

Q: Are There Different Types Of Ultrasonic Cleaning Solutions?

A: Three types of ultrasonic cleaning solutions: mild alkaline, mild acid and solvent replacement. Which ultrasonic cleaning solution an ultrasonic cleaning process requires depends on what type of grime or deposit is being removed.
    Mild alkaline ultrasonic cleaning solution is suited for the cleaning of oily parts. This agent works by breaking down the ionic bond that has formed between an oil and a metal. As the part is cleaned, the oil is dissolved and is dispersed into the liquid.
    Mild acid ultrasonic cleaning solution is suited for removing rust and oxidation. An oxide remover, the mild acid solution is suited for applications where oxidation has coated the surface of the part.
    Solvent replacement ultrasonic cleaning solution, or "shellac-buster", removes rust, oxidation, carbons and oils. Shellac-busters are suitable for applications where a solvent like kerosene may have once been used. Solvent replacement agents are faster working than alkaline agents, and they perform in a similar fashion by breaking down ionic bonds and removing oxidation and are non-hazardous.
