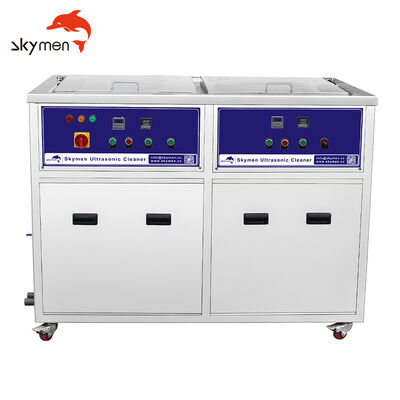

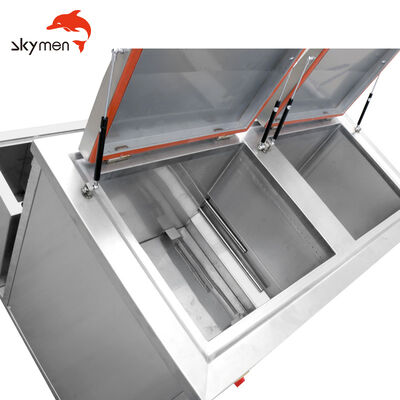

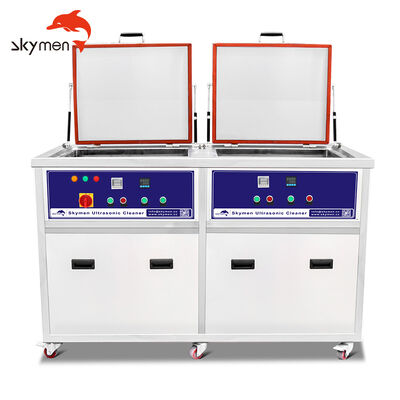

28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L

28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L
28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L 28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L 28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L 28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L

Large Image :  28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L

Product Details:
Certification: CE, RoHS, ISO9001
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3100
Contact Now

28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L

Description
Frequency: 28/40kHz Material: Stainless Steel SUS304
Timer: 1-99 Hours Adjustable Heating Power: 3000W
Package Size: 1560*1210*970mm Ultrasonic Power: 1.5kw
Model NO.: JP-2060G Specification: 550*450*400mm
Voltage: 380V 3phases Unit Size: 1550*1150*850mm
Heater: 20-95℃ Tank Capacity: 99L For Each
Tank Thickness: 2mm G.W: 225kg
Cleaning Media: Wet Cleaning

28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning machine Ultrasonic Cleaner with Rinsing and Filter System 99L
1 Model No. JP-2060G
2 Image 28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L
3 Ultrasonic model Ultrasonic Frequency 28/40 kHz
Material Stainless Steel SUS304
Tank Capacity 99L for each
Timer 1~99hours adjustable
Heater 20°C to 95°C adjustable
Degas  Yes
Semiwave Yes
Power Supply AC 100 ~ 120V, 50 / 60Hz
AC 220 ~ 240V, 50 / 60 Hz
Ultrasonic Power 0-1500 W
Heating Power 1500 W
Basket& cover Standard equiped
4 Packing Tank Size 550*450*400mm ( L x W x H )
Unit Size 1550*1150*850mm  ( L x W x H )
Package Size 1560*1210*970mm(L*W*H)
G.W. 225 kg
Warranty 1 year
5 Features. 1. stainless steel tank has resistance to wear and long work life.
2. with filtration and rinsing stsyem,
3. with stainless steel basket and cover.
4. use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
5.ultrasonic cleaning solutions penetrate virtually any soil type including: oils, residues, solvents, pastes and chemicals and other contaminants are safely lifted and dispersed, leaving a surface appearance that is clean and free of particulate; even in crevasses and internal bores.
6 Application. medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university lab, hardware tools shop.
7 Certificates CE/ROHS/FCC/PSE/ISO9001

How ultrasonic cleaner works:
The ultrasonic cleaning machine is mainly composed of an ultrasonic signal generator transducer and a cleaning tank. The high-frequency oscillation signal of the ultrasonic signal generator is converted into a high-frequency mechanical oscillation of tens of thousands of times per second by the transducer, and ultrasonic waves are formed in the cleaning liquid (medium). It radiates forward in the cleaning liquid in the way of alternating high frequency of positive pressure and negative pressure, causing numerous tiny bubbles in the cleaning liquid to constantly generate and continuously burst, which is called the cavitation effect. When the bubble bursts, it can form an instantaneous high pressure of more than 1000 atmospheres, and produce a series of explosions to release huge energy, forming a huge impact on the surroundings, thus continuously impacting the surface of the workpiece, so that the dirt on the working surface and gap can be quickly peeled off to achieve the purpose of surface purification of the workpiece.


Application:
-Scientific Labs:Eyeglass Frames;Lab Glassware;Optical&Contact Lenses;Pipettesscientific Instruments;Test tubes
-Industrial Manufacturing:Assemblies;Gears;Metal&Plastic Parts;Precision Bearings
-Electronic manufacturing:Capacitors;Ceramic Substrates;PC Boards;Packaging Components;Quartz Crystals
-Medical and Dental Lab:Burs;Blood Oxygenators;Dental Instruments;Syringe Parts;Surgical Instruments
-Jewelry Manufacturing:Chains;Charms;Coins;Intricate Settings;Precious Metals&Gemstones;Watches


JP tank dimension and transducers are custom made available.
Technical data:
each tank is custom made size and accessory.
two-tank can be one ultrasonic cleaning tank and one drying
tank, for clean and then dry your parts.

Features:
Adjustable ultrasonic power
Original BLT type transducer
SUS 304/316L stainless steel tank
Adaptable for continuous operation
Adjustable thermo controller
Adjustable ultrasonic power
With separate control ultrasonic electronic generator

Functions:
1st  tank work as ultrasonic cleaning;
2nd work as drying parts after cleaning.
JP series ultrasonic cleaner equipment system includes single-tank, two-tank,three-tank,four-tank ultrasonic cleaner machine.Specification of tank dimension are custom made available.Either for big mould or small parts cleaning can receive perfect cleaning efficiency. Stainless steel basket is optional.

28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L

Company profile
Here are the Skymen company.You can know more about us with the details.
28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L28kHz Best Price Twin Tanks Carburetor Ultrasonic Cleaning Machine Ultrasonic Cleaner with Rinsing and Filter System 99L

FAQ:
Buying Guides

 1. Choose suitable tank size based on cleaning objects, size can be customized

 2. Choose suitable frequency, 40kHz for commen use and 28kHz for heavy duty oil removal

 3. Choose tank meterial based on solvent, SUS304 or SUS316L

 4. Other function optional,

    Ultrasonic cleaning tank + Ultrasonic Rinsing tank

    Ultrasonic cleaning tank + Air agitation Rinsing tank

    Ultrasonic cleaning tank + Water Rinsing tank

    Ultrasonic cleaning tank + Hot air drying tank

    Oil filtertation system: detergent recycle use to save much cost
