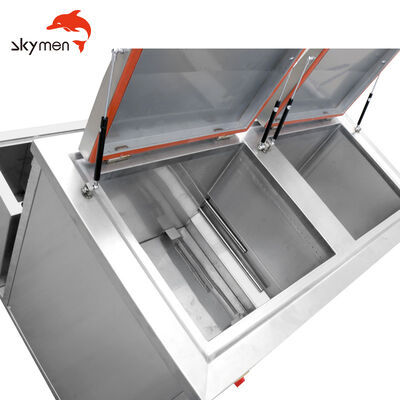

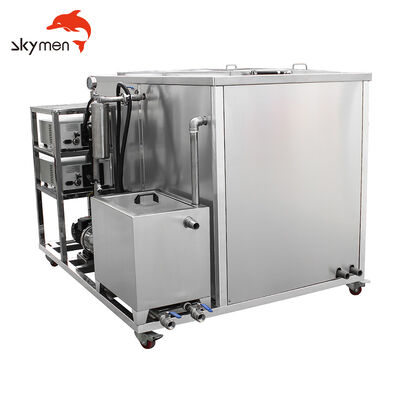

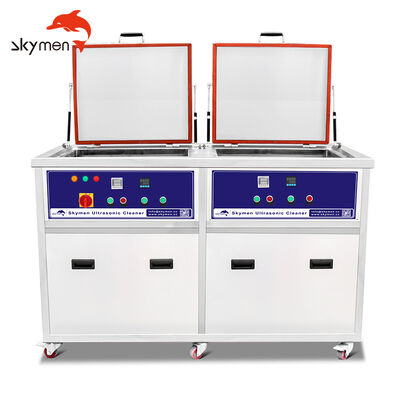

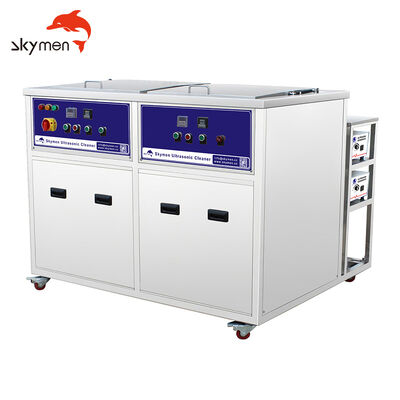

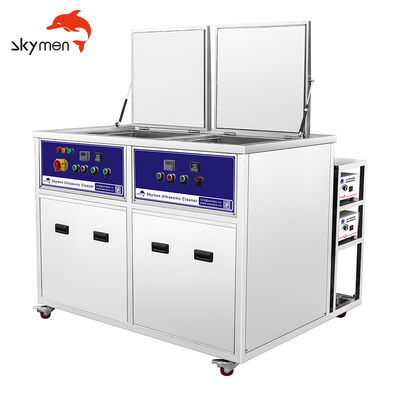

High Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40L

Certification
China Skymen Technology Corporation Limited certification
China Skymen Technology Corporation Limited certification
Customer Reviews
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

High Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40L

High Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40L
High Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40L High Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40L High Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40L High Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40L High Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40L

Large Image :  High Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40L

Product Details:
Certification: CE, RoHS, ISO9001
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2000

High Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40L

Description
Tank Capacity: 38L For Each Heating Power: 1500*2W
Gross Weight: 185kg Tank Thickness: 2mm
Unit Size: 1350*900*750mm Package Size: 1410*960*870mm
Ultrasonic Power: 1200W Material: Stainless Steel SUS304
Frequency: 28/40kHz Heater Range: 20-95℃
Voltage: 220V 1phase Timer Range: 1-99 Hours Adjustable
Tank Size: 500*300*250mm Power Supply: AC 100~120V/220~240V, 50/60Hz
Degas Function: Yes

High Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and rinsing system 40L
1 Model No. JP-2024G
2 Image High Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40L
3 Ultrasonic model Ultrasonic Frequency 28/40 kHz
Material Stainless Steel SUS304
Tank Capacity 38L for each
Timer 1~99hours adjustable
Heater 20°C to 95°C adjustable
Degas  Yes
Semiwave Yes
Power Supply AC 100 ~ 120V, 50 / 60Hz
AC 220 ~ 240V, 50 / 60 Hz
Ultrasonic Power 1200 W
Heating Power 1500 W*2
Basket& cover Standard equiped
4 Packing Tank Size 500*300*250mm ( L x W x H )
Unit Size 1350*900*750mm  ( L x W x H )
Package Size 1410*960*870mm(L*W*H)
G.W. 185 kg
Warranty 1 year
5 Features. 1. stainless steel tank has resistance to wear and long work life.
2. with filtration and rinsing stsyem,
3. with stainless steel basket and cover.
4. use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
5.ultrasonic cleaning solutions penetrate virtually any soil type including: oils, residues, solvents, pastes and chemicals and other contaminants are safely lifted and dispersed, leaving a surface appearance that is clean and free of particulate; even in crevasses and internal bores.
6 Application. medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university lab, hardware tools shop.
7 Certificates CE/ROHS/FCC/PSE/ISO9001


Features:
Twin tank ultrasonic cleaner ,1 for cleanig ,1 for rinsing ,to achive better result.
Adjustable ultrasonic power from 300W to 30KW or even bigger
Original BLT type transducer with more strong power
SUS304 or 316L stainless steel tank for solvent fluid cleaning
With bolted transducer or whole set transducer pack system
Adjustable thermo controller
With separate control ultrasonic electronic generator
Ultrasonic tank size can be custom made
An ultrasonic carburetor cleaner cleans even gummed up carburetors. Stop wasting time hand cleaning.
Fast and effective cleaning with no manual labor
Powerful enough to remove carbon deposits yet gentle on aluminum parts
Use water-based cleaning solutions, no toxic solvents



Application:
-Scientific Labs:Eyeglass Frames;Lab Glassware;Optical&Contact Lenses;Pipettesscientific Instruments;Test tubes
-Industrial Manufacturing:Assemblies;Gears;Metal&Plastic Parts;Precision Bearings
-Electronic manufacturing:Capacitors;Ceramic Substrates;PC Boards;Packaging Components;Quartz Crystals
-Medical and Dental Lab:Burs;Blood Oxygenators;Dental Instruments;Syringe Parts;Surgical Instruments
-Jewelry Manufacturing:Chains;Charms;Coins;Intricate Settings;Precious Metals&Gemstones;Watches



How ultrasonic cleaner works:

Electrical energy is converted into mechanical vibrations thanks to special elaborated transducers.These vibrations are transferred into the fluid through the walls of stainless steel.This creates tiny microscopic vacuum bubbles, which cause consecutive implosions (cavitation).The high-energy jets that are thus created can efficiently remove dirt from surfaces an materials placed in the cleaning bath.

An ultrasonic cleaner in your kitchen will save time and reduce effort while providing a safe solution for your kitcheware. With the help of oil remove detergent ,the ultrasonic cleaner could fast and efficient take the oil ,polish the kitcheware.
when using an ultrasonic cleaner on glassware, plasticware, and your lab instruments. Whether you are cleaning oven trays, pans. studies have shown that it can be up to 30 times faster while delivering thoroughly clean results.

High Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40LHigh Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40LHigh Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40LHigh Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40L

Company profile
Here are the Skymen company.You can know more about us with the details

High Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40LHigh Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40LHigh Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40LHigh Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40LHigh Quality Double Tanks Industrial Ultrasonic Cleaner with Filtration and Rinsing System 40L

FAQ:
Buying Guides

 1. Choose suitable tank size based on cleaning objects, size can be customized

 2. Choose suitable frequency, 40kHz for commen use and 28kHz for heavy duty oil removal

 3. Choose tank meterial based on solvent, SUS304 or SUS316L

 4. Other function optional,

    Ultrasonic cleaning tank + Ultrasonic Rinsing tank

    Ultrasonic cleaning tank + Air agitation Rinsing tank

    Ultrasonic cleaning tank + Water Rinsing tank

    Ultrasonic cleaning tank + Hot air drying tank

    Oil filtertation system: detergent recycle use to save much cost
